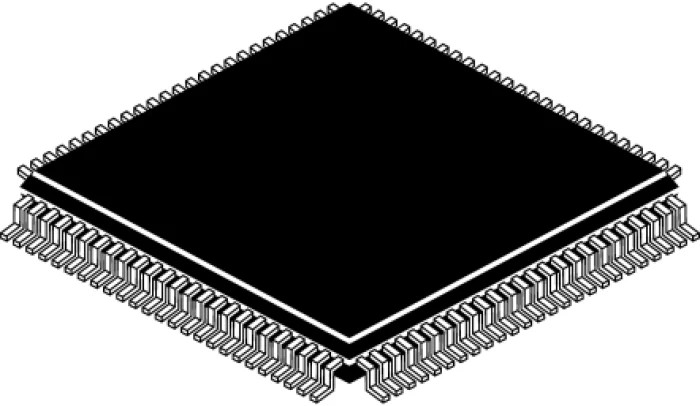

STMicroelectronics 32 bit ARM Cortex M4 Microcontroller , 168 MHz, 1024kB FLASH, 192kB RAM, 100-Pin LQFP STM32F405VGT6
Specifications
| Country of Origin | India |
|---|---|
| Brand | STMicroelectronics |
| Height | 1.45mm |
| Length | 14.2mm |
| Model | STM32F405VGT6 |
| Width | 14.2mm |
| Mount Type | Surface |
| Series | STM32F405VG |
| Maximum Operating Temperature | 85°C |
| Package Type | LQFP |
| Minimum Operating Temperature | -40°C |
| Interfaces | USB OTG (High Speed support) |
| Audio | audio PLL and 2 full duplex I²S |
| Ram size | 192kB |
| Communication Interfaces | USARTs, SPI, I²C, CAN, SDIO |
| Timers | 16-bit and 32-bit (168MHz) |
| Standards/Approvals | FBI |
| Pin Count | 100 |
| Maximum Supply Voltage | 3.6V |
| Maximum Power Dissipation Pd | 465mW |
| Minimum Supply Voltage | 1.8V |
| Device Core | ARM Cortex M4 |
| Program Memory Size | 1024kB |
| Maximum Clock Frequency | 168MHz |
| Number of Timers | 12 |
| Instruction Set Architecture | DSP |
| ADCs | 16 x 12 Bit |
| Program Memory Type | FLASH |
| DACs | 2 x 12 Bit |
| Temperature ranges | -40 to +85°C or -40 to +105°C |
| Operation Voltage | 1.7 to 3.6V |
| Analogue | 12-bit DACs, 12-bit ADCs |
| STM32F415 only | integrates a crypto/hash processor |
Key Features
- Operates at a maximum clock frequency of 168 MHz for high-performance embedded applications.
- Includes 1024kB of FLASH program memory and 192kB of RAM to support complex firmware.
- Supports a 32-bit data bus width based on ARM Cortex M4 architecture with DSP instruction set.
- Contains 16 x 12-bit ADCs and 2 x 12-bit DACs for precise analog signal processing.
- Provides multiple communication interfaces including USART, SPI, I²C, CAN, and SDIO.
- Operates reliably across a wide temperature range from -40°C to +85°C.
- Features 12 timers and audio interfaces such as audio PLL and 2 full duplex I²S.
- Power supply voltage range is from 1.8 V to a maximum of 3.6 V.
Product Description
STMicroelectronics STM32F405VGT6 is a high-performance 32 bit ARM Cortex M4 microcontroller designed for embedded applications requiring advanced processing capability and peripherals. Operating at 168 MHz frequency, the MCU offers 1024kB of Flash memory and 192kB of SRAM, enabling complex and memory-intensive firmware execution.
This microcontroller integrates 16 12-bit ADC channels and 2 12-bit DACs to deliver precise analog-to-digital and digital-to-analog conversion, supporting sensor interfacing and audio signal processing. It features multiple communication buses including USART, SPI, I²C, CAN, and SDIO interfaces that enable broad connectivity options for industrial and automotive systems.
The device is packaged in a 100-pin LQFP form factor with compact dimensions of 14.2 mm x 14.2 mm and thickness of 1.45 mm, suited for surface mount assembly. Power supply range supports operation from 1.8 V up to 3.6 V, while operational temperature spans from -40°C to +85°C, assuring robust performance in harsh environments.
Additional features include 12 timers and audio support with audio PLL and full duplex I²S for audio applications. This microcontroller supports DSP instructions with floating point unit and enhanced digital signal processing capability, making it ideal for embedded signal control and processing tasks.
Operates at 168 MHz clock speed for efficient processing. Includes 1024kB FLASH and 192kB RAM memory sizes. Supports ARM Cortex M4 core with DSP and floating point unit. Equipped with multiple communication interfaces: USART, SPI, I²C, CAN, SDIO.
Features precision ADCs and DACs for analog interfacing. Compact 100-pin LQFP packaging with 14.2 x 14.2 x 1.45 mm dimensions. Wide operating voltage range from 1.8 V to 3.6 V. Robust temperature tolerance from -40°C to +85°C.
Includes audio support and multiple timers for versatile applications.
This STMicroelectronics STM32F405VGT6 microcontroller is widely used in industrial automation, embedded control systems, automotive electronics, and audio processing applications. Its combination of high-speed processing, rich peripheral set, and flexible communication interfaces make it suitable for demanding embedded solutions.
Explore the full range of STMicroelectronics Microcontrollers and other semiconductor products at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The STM32F405VGT6 microcontroller operates at a maximum clock frequency of 168 MHz, enabling high-performance processing for embedded applications.
This model includes 1024kB of FLASH program memory and 192kB of RAM, which supports complex firmware execution.
It supports multiple communication interfaces, including USART, SPI, I²C, CAN, and SDIO, providing broad connectivity options.
The microcontroller operates reliably across a temperature range from -40°C to +85°C, making it suitable for harsh environments.
It is packaged in a 100-pin LQFP form factor with dimensions of 14.2 mm x 14.2 mm and a thickness of 1.45 mm.
This model features 16 x 12-bit ADCs and 2 x 12-bit DACs, allowing for precise analog signal processing.
The power supply voltage range for the STM32F405VGT6 is from 1.8 V to a maximum of 3.6 V.
It includes 12 timers, which can be either 16-bit or 32-bit, supporting various timing applications.
The microcontroller is based on the ARM Cortex M4 architecture, which includes a DSP instruction set and a floating point unit.
This model uses a surface mount type, suitable for compact and efficient assembly.
The STM32F405VGT6 microcontroller complies with FBI standards/approvals, ensuring it meets specific regulatory requirements.
It is widely used in industrial automation, embedded control systems, automotive electronics, and audio processing applications due to its advanced features.
