STMicroelectronics 32 bit ARM Cortex M0+ STM32L0 Microcontroller 32 MHz 32kB FLASH 48-Pin LQFP STM32L010C6T6

STMicroelectronics STM32L010C6T6 is a 32-bit Arm Cortex M0+ microcontroller designed for ultra-low power consumption and high-performance embedded applications. Operating at a clock frequency of 32 MHz, this microcontroller features 32kB of FLASH program memory, 8kB of RAM, and 256 bytes of data EEPROM, offering an ample memory footprint for a wide range of applications.

The device supports multiple communication protocols including I2C and SPI, and offers 38 programmable I/Os, with 31 being 5-Volt tolerant. It operates within a voltage range of 1.8 V to 3.6 V, ensuring operational flexibility in various power scenarios and includes an ultra-low-power brownout reset (BOR) with selectable thresholds for enhanced stability in power-sensitive environments.

The operating temperature range is extended from -55°C to 175°C, making it suitable for harsh industrial, automotive, and embedded system environments. Advanced power-saving modes include a standby mode consuming only 0.23 μA and a stop mode at 0.35 μA, making this microcontroller ideal for battery-operated and portable devices where energy efficiency is paramount.

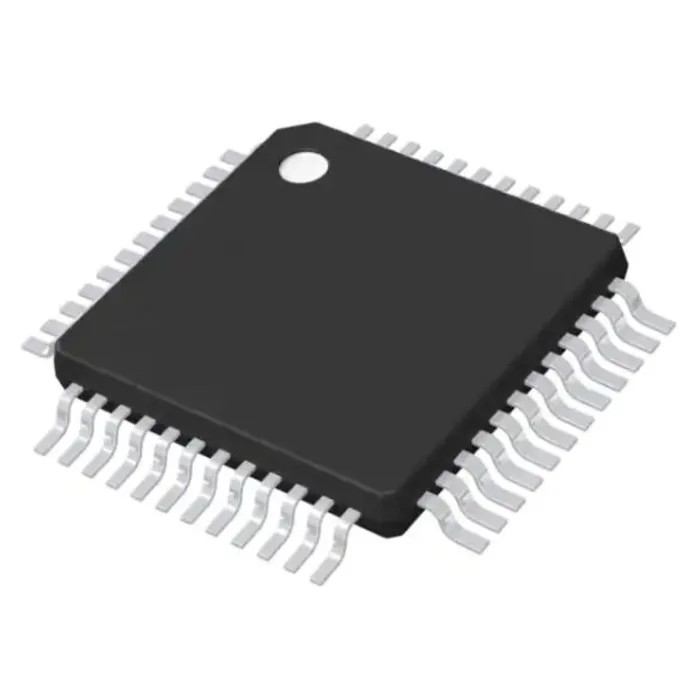

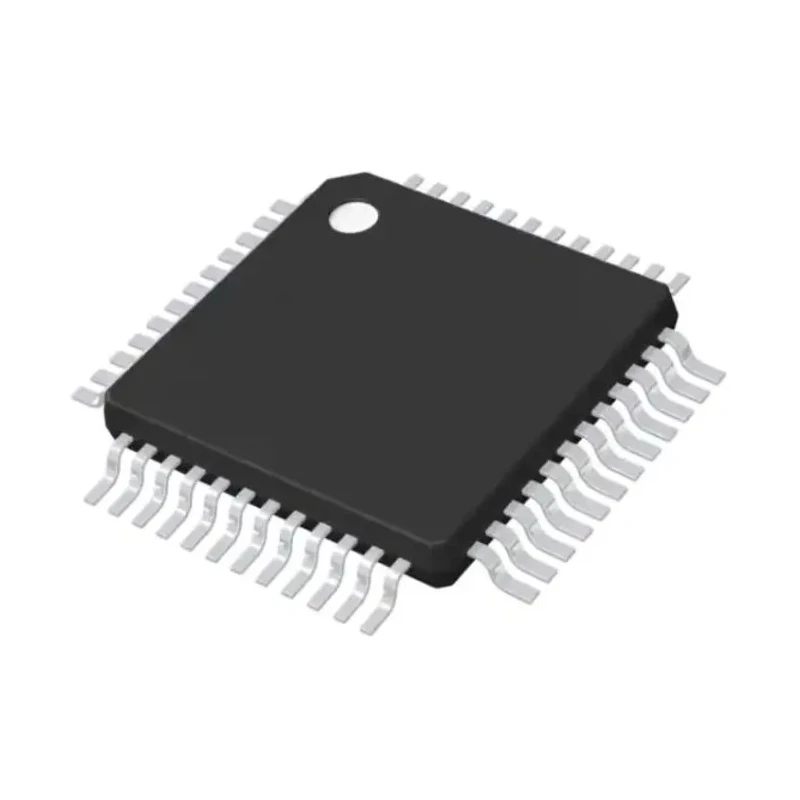

Its 48-pin LQFP package measures 7 mm x 7 mm, allowing compact designs without sacrificing I/O pin availability. The 12-bit ADC integrated into the device supports precise analog measurements, beneficial for sensor readings and control systems.

With approval standards such as RoHS3 and REACH compliance, the STM32L010C6T6 is suitable for use in environments with regulatory mandates for hazardous substance limitations.

This microcontroller is widely applicable in industrial control systems, automotive electronics, medical devices, wearables, and other IoT applications where low power and high efficiency are essential.

Ultra-low-power Arm Cortex-M0+ 32-bit RISC core running at 32 MHz. 32kB FLASH memory, 8kB RAM, and 256 bytes EEPROM for application storage. Wide voltage supply from 1.8 V to 3.6 V supports diverse power requirements. 38 programmable I/Os with 31 5V tolerant pins for flexible interfacing.

Extended operating temperature from -55°C to 175°C for industrial use. Low power consumption with standby and stop modes for energy saving. Integrated 12-bit ADC suitable for sensor and analog input processing. Compact 7 mm x 7 mm 48-pin LQFP package for space-efficient placement.

RoHS3 and REACH compliant for environmentally responsible applications. Explore more Microcontroller options and related semiconductor products at EnvMart for your industrial and embedded design needs.
