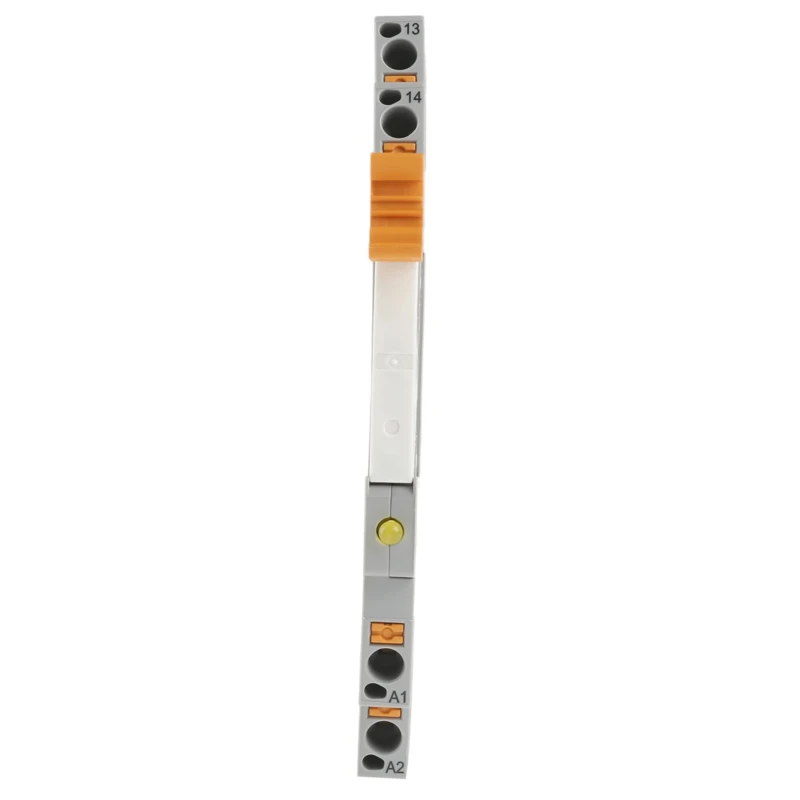

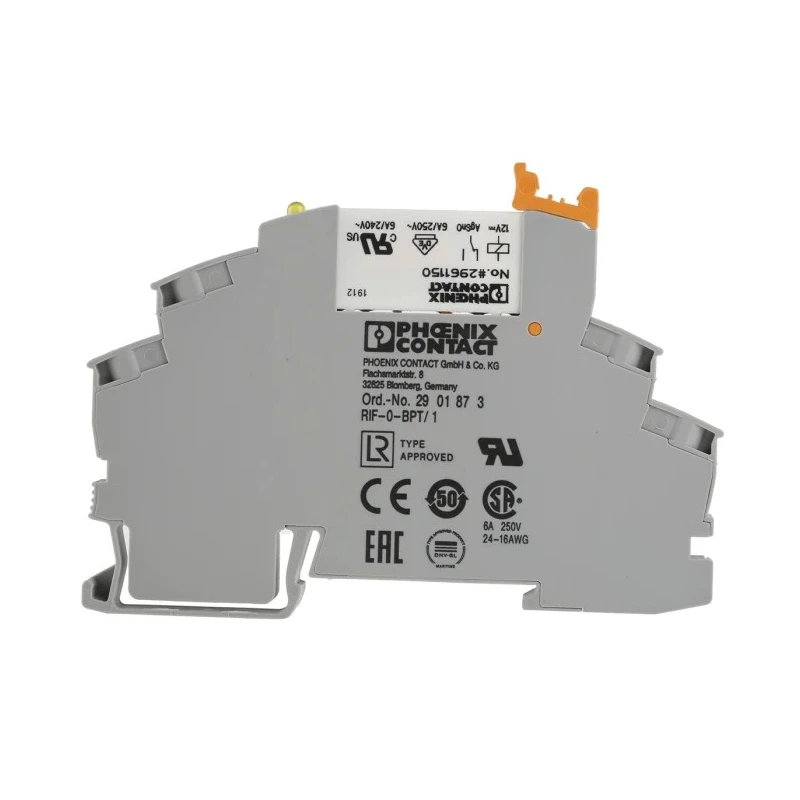

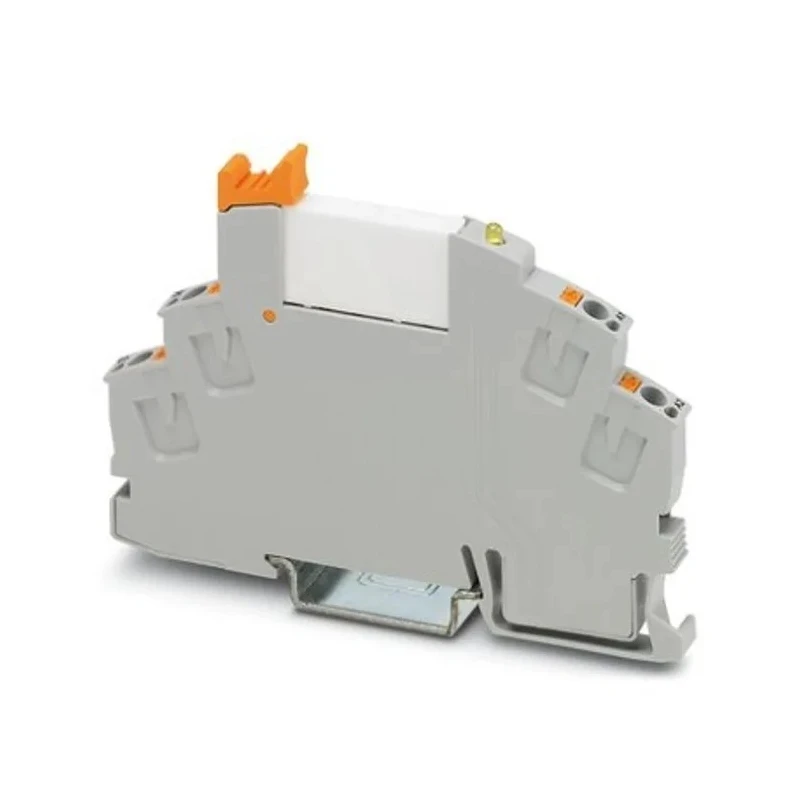

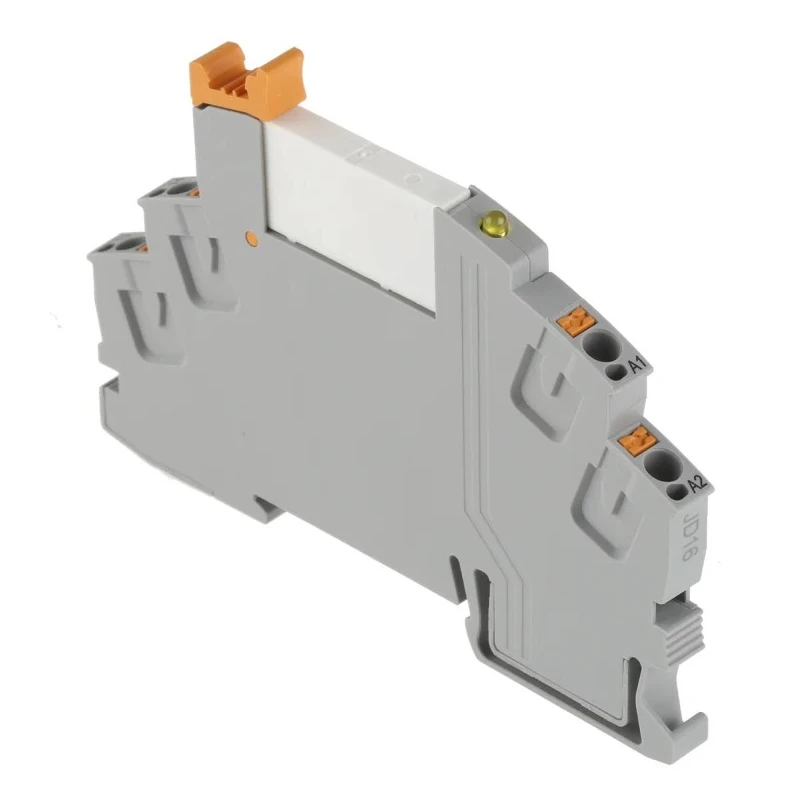

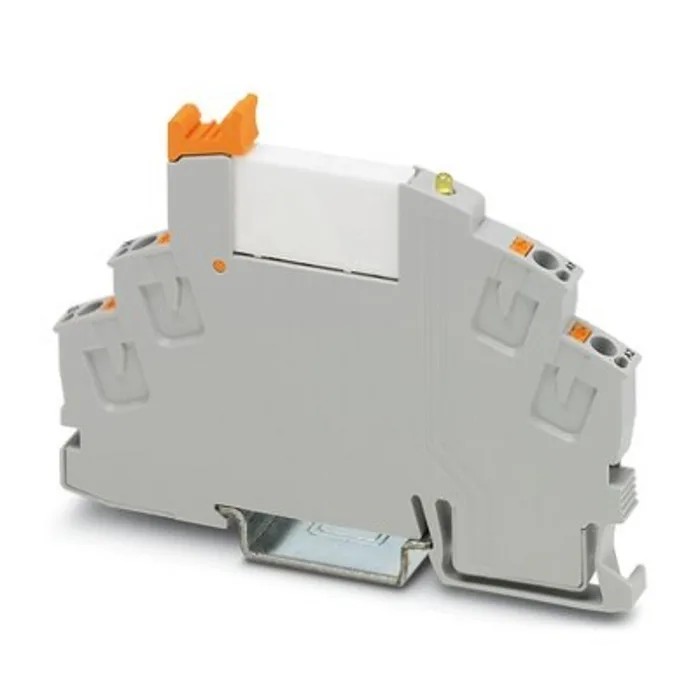

Phoenix Contact DIN Rail Interface Relay 12V dc Coil 6A Switching Current SPST 2903362

Phoenix Contact 2903362 Interface Relay is a robust DIN rail-mounted electromechanical relay designed for industrial and automation applications requiring reliable switching of electrical circuits. It operates with a 12V dc coil voltage and can handle a switching current up to 6A, making it suitable for controlling loads with voltage ratings up to 250V AC/DC.

This model boasts a compact size with dimensions 6.2 mm (width) × 66 mm (depth) × 93 mm (height), making it ideal for installations in tight spaces. The bright yellow LED coil indication provides a clear visual confirmation of operational status, facilitating maintenance and troubleshooting.

The relay features a SPST contact configuration and plug-in type terminals that allow for flexible and secure wiring arrangements. Designed to snap easily onto standard DIN rails, it supports quick and versatile mounting in control panels and electrical enclosures.

With a rated electrical endurance of around 20 million cycles, the relay assures longevity for continuous industrial use. The unit is tested to withstand surge voltages up to 6 kV, protecting against electrical disturbances. Its operating temperature range from -40°C to +60°C and IP20 protection rating ensure reliable performance in harsh industrial environments.

This interface relay is commonly utilized in automation networks, process control, and powerful radio-electronic installations where reliable switching and signal conditioning are critical.

Designed for DIN rail mounting ensuring easy installation. Single Pole Single Throw (SPST) contact configuration for straightforward control. Plug-in terminal type enhances wiring flexibility and serviceability. Compact dimensions: 6.2mm width, 66mm depth, and 93mm height suitable for confined spaces.

Bright yellow LED indicator enables clear coil status monitoring. Operating temperature range from -40°C to +60°C supports harsh environments. Tested withstand voltage of up to 6kV ensures surge protection. Accepts conductors with cross-sections from 0.14 to 1.5 mm² for versatile connectivity.

IP20 rated base provides touch protection and shields from solid foreign objects over 12mm. Rated for approximately 20 million operational cycles indicating high durability.

Upgrade your control panel with the reliable Phoenix Contact 2903362 Interface Relay. Browse our Electronics & Electricals category on EnvMart for similar high-quality industrial relays and contactors designed to meet stringent performance requirements.
