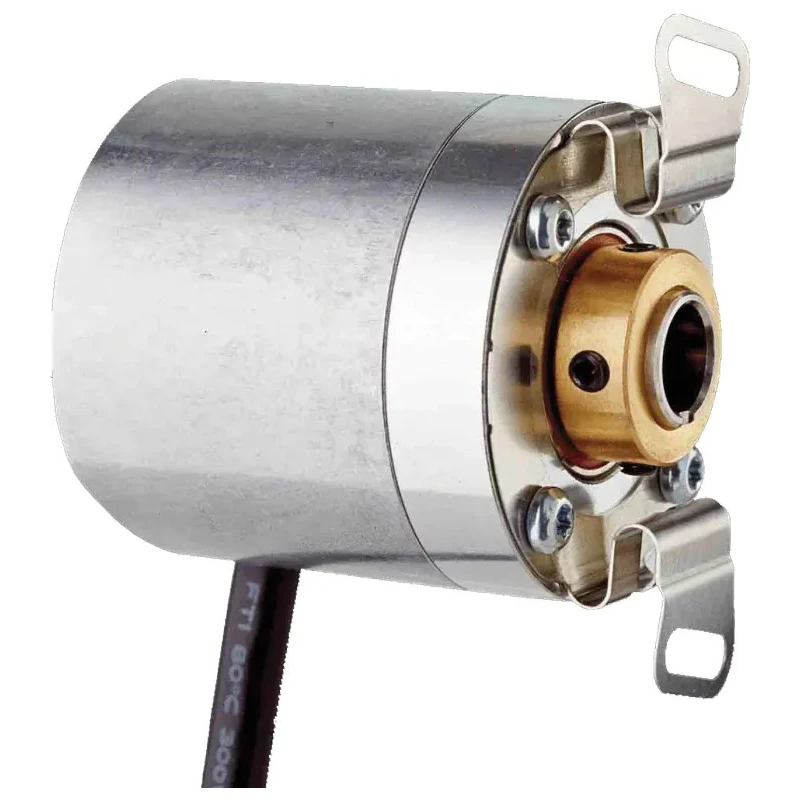

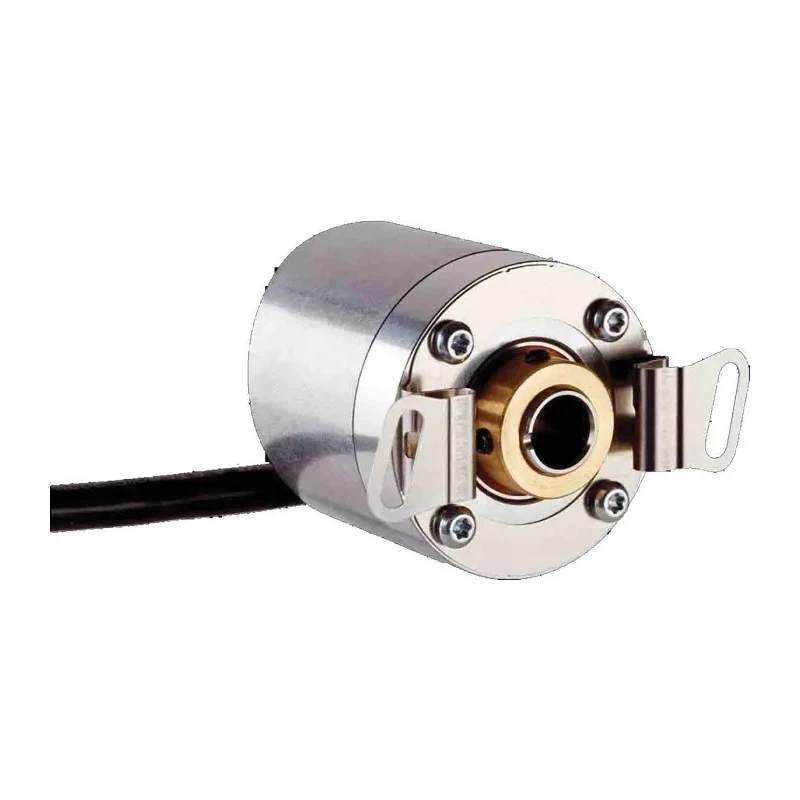

SICK DBS36 Core Series Incremental Encoder 30V DC, 1024 PPR, HTL Signal, Blind Hollow 8mm Shaft DBS36

SICK DBS36 model is a Core Series Incremental Encoder designed for industrial motion control with a supply voltage of 30V DC and 1024 pulses per revolution (PPR). Its robust construction includes a blind hollow shaft of 8 mm diameter and provides HTL output signal type suitable for precise speed and position sensing.

The encoder features a compact body with dimensions 45.4 mm depth, 37 mm height, and 36 mm width, making it adaptable for constrained installation spaces. The flange mount type ensures secure fixation, while the axial or radial cable routing allows flexible connectivity through a 1.5 m cable.

It supports maximum rotational speeds up to 6000 rpm and operates reliably within a temperature range of -20°C to +85°C. The IP65 ingress protection rating safeguards against dust and water, ensuring durability in industrial environments.

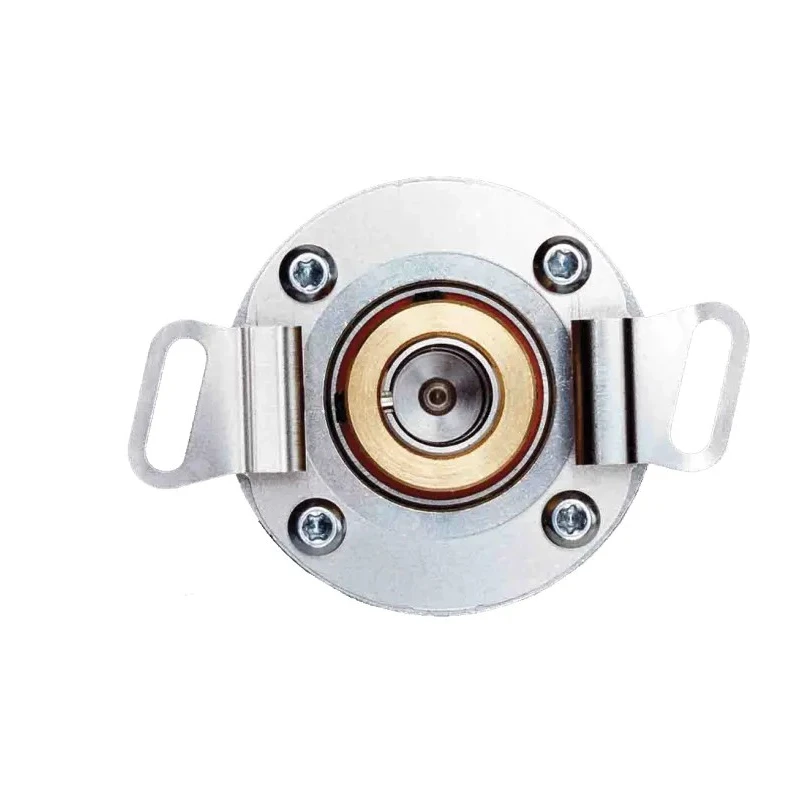

The encoder’s output switching frequency reaches 300 kHz, allowing integration into high-speed automation and control systems. Its shaft coupling offers slots for mounting flexibility on a pitch circle diameter (PCD) ranging from 42 to 46 mm. Additionally, the hollow shaft can be reduced from 8 mm to 6 mm using a collet accessory (RS stock no. 2013656).

Compliant with standards EN ISO 13849-1, EN 61000-6-2, and EN 61000-6-3 (class A), this product meets stringent industrial safety and electromagnetic compatibility requirements. Compact and robust design ensures reliable operation in harsh environments.

Supports a maximum rotational speed of 6000 RPM. IP65 rated for protection against dust and water ingress. Wide operating temperature range from -20°C to 85°C. Flange mounting type for easy installation and flexible axis coupling.

Axial or radial cable routing with a 1.5 m cable length enhances installation versatility. Switching frequency up to 300 kHz enables high-frequency signal processing. Compatible with collet accessory to reduce hollow shaft diameter from 8mm to 6mm.

Suitable for industrial speed and position sensing applications.

This SICK DBS36 incremental encoder is ideal for industrial automation, manufacturing, HVAC systems, and other motion control applications requiring precise rotary position feedback. It combines durability with ease of installation, making it an efficient choice for engineers and technicians.
