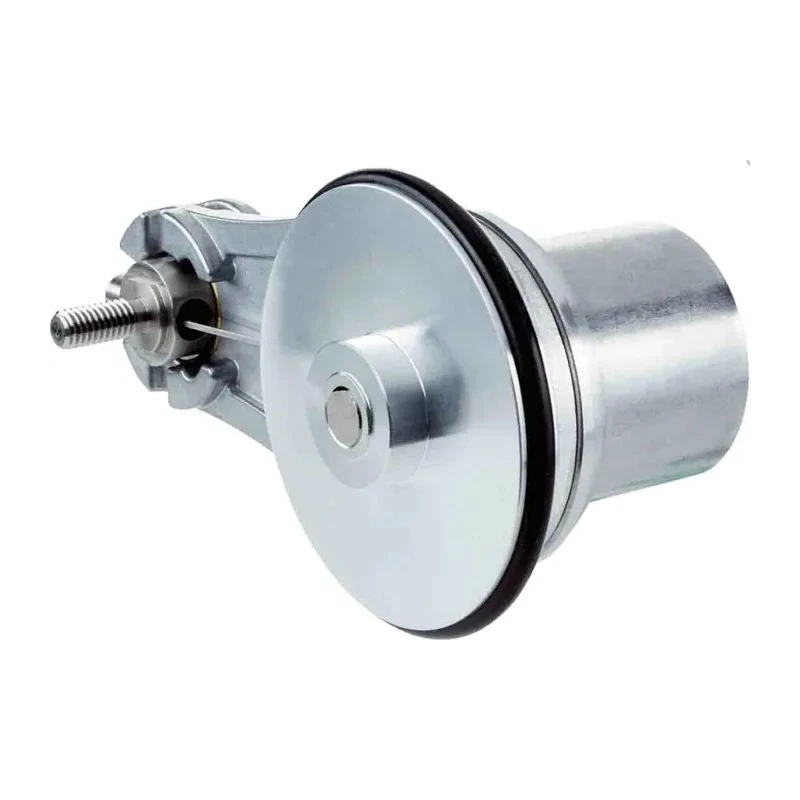

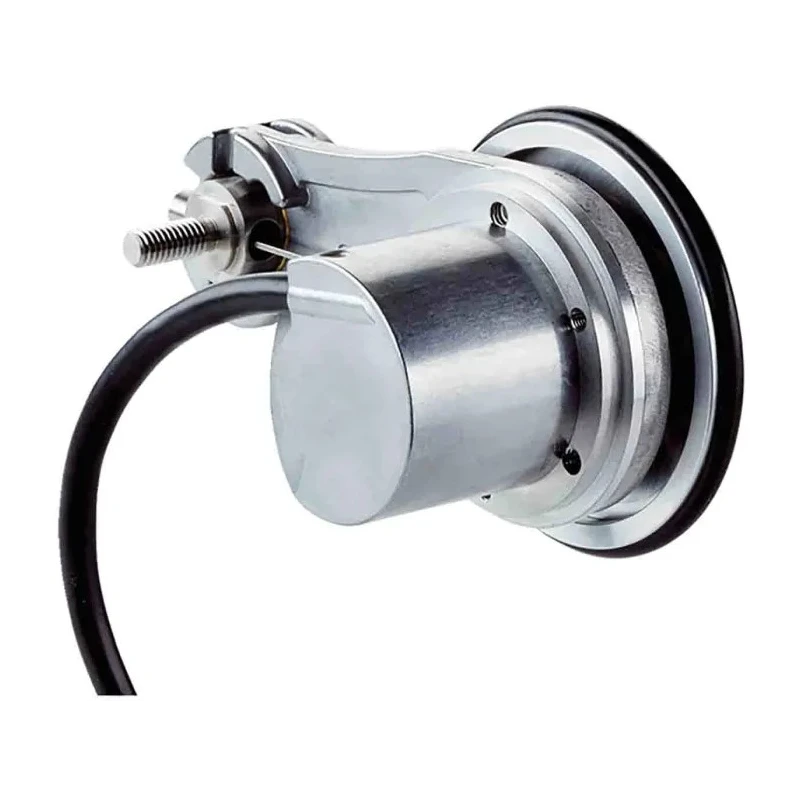

SICK DBV50 Core Series Linear Measuring Encoder 5.5V DC, 200 PPR, TTL Signal, Measuring Wheel Type DBV50
Specifications
| Country of Origin | Malaysia |
|---|---|
| Brand | SICK |
| Model | DBV50 |
| IP Rating | IP65 |
| Mount Type | Spring |
| Series | DBV50 Core |
| Overall Width | 110mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -20°C |
| Overall height | 60mm |
| Switching Frequency | 300kHz |
| Shaft Type | Measuring Wheel |
| Interface Type | Incremental |
| Pulses per Revolution | 200ppr |
| Standards/Approvals | EN 61000-6-2 and EN 61000-6-3 (class A) |
| Maximum Supply Voltage | 5.5V dc |
| Overall Depth | 54.7mm |
| Encoder Technology | Linear Measuring |
| Maximum Revolutions | 3000rpm |
| Output Signal Type | TTL |
Key Features
- Operates at a maximum supply voltage of 5.5V DC with low power consumption.
- Incremental output interface with a 3000 RPM maximum rotational speed.
- Equipped with a measuring wheel shaft type suitable for linear measurement tasks.
- Sealed to an IP65 rating for robust industrial environment protection.
- Operating temperature range from -20°C to 85°C facilitates diverse applications.
- High switching frequency of 300 kHz ensures accurate signal processing.
- Includes spring mount type and complies with EN 61000-6-2 and EN 61000-6-3 (class A) standards.
- Designed and manufactured in Malaysia, ensuring quality and reliability.
Product Description
The SICK DBV50 Core Series Linear Measuring Encoder DBV50 is an advanced incremental encoder designed for precise linear measurement applications in industrial automation and control systems. It operates on a supply voltage range of 4.5 V to 5.5 V DC and delivers a TTL output signal with a linear resolution of 1 mm, making it ideal for motion control sensor applications.
This encoder integrates an NBR70 measuring wheel coupled with a spring assembly, providing a rugged and easy-to-mount package suitable for demanding environmental conditions. The unit is sealed to IP65, offering excellent protection against dust and water ingress, thereby suitable for most industrial environments.
The encoder supports a maximum rotational speed of up to 3000 RPM and a switching frequency of 300 kHz, enabling rapid and accurate signal detection for controlling and monitoring linear displacement.
Compactly designed with overall dimensions of 110 mm width, 60 mm height, and 54.7 mm depth, it can be efficiently installed in tight spaces. The spring mount type assists in flexible and reliable positioning. Compliance with EN 61000-6-2 and EN 61000-6-3 (class A) standards ensures electromagnetic compatibility for industrial use cases.
This model is manufactured in Malaysia, maintaining the high quality and reliability standards expected from SICK products. Operates at maximum 5.5V DC supply voltage with 50 mA no-load power consumption. Provides a 200 pulses per revolution output with a measuring step deviation of ±18° per pulse.
Suitable for applications requiring precise linear position feedback and control. Sealed construction for protection against harsh industrial environments. Application areas include industrial automation, manufacturing process control, material handling, and motion sensing systems.
The SICK DBV50 Series is a trusted solution found across multiple industrial sectors, including laboratory instrumentation, manufacturing automation, and material handling. Explore more sensors and motion control components within the Electronics & Electricals category on EnvMart.
Explore more products in our Motion Control Sensors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this encoder is 5.5V DC.
It provides a TTL output signal with a resolution of 200 pulses per revolution.
The operating temperature range for the DBV50 is from -20°C to 85°C.
The encoder supports a maximum rotational speed of up to 3000 RPM.
The overall dimensions of this encoder are 110 mm in width, 60 mm in height, and 54.7 mm in depth.
It features a spring mount type, which allows for flexible and reliable positioning.
The switching frequency of this encoder is 300 kHz, enabling rapid signal detection.
This model complies with EN 61000-6-2 and EN 61000-6-3 (class A) standards for electromagnetic compatibility.
It is suitable for applications in industrial automation, manufacturing process control, material handling, and motion sensing systems.
The DBV50 utilizes linear measuring technology with a measuring wheel shaft type.
This encoder is designed and manufactured in Malaysia, ensuring quality and reliability.
The no-load power consumption of this model is 50 mA.
