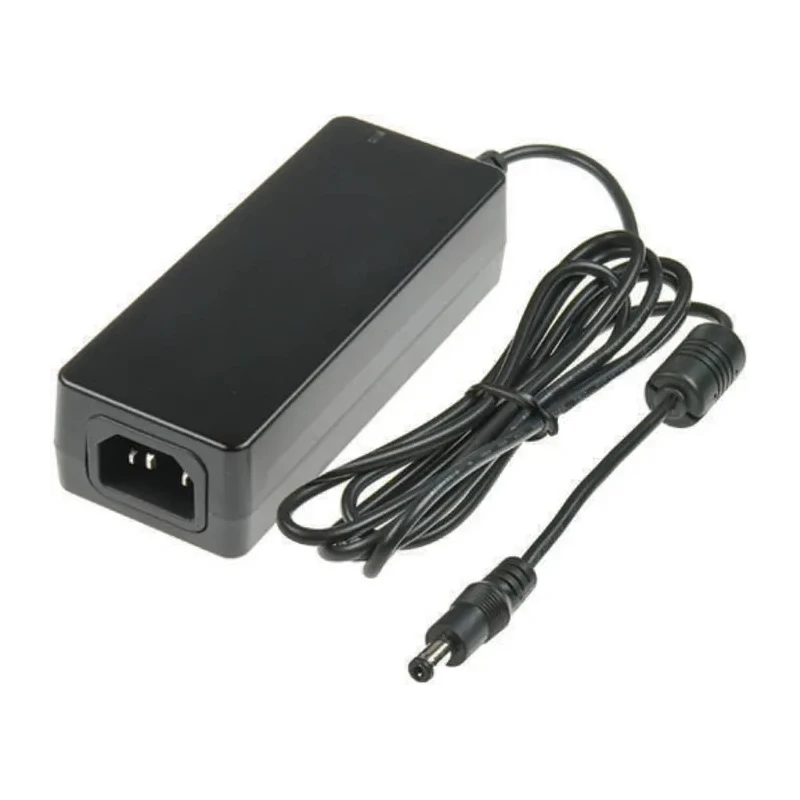

MEAN WELL AC/DC Adapter IEC 264V AC Input, 18 V DC Output, 3.33 A Current GSM60A18-P1J

MEAN WELL GSM60A18-P1J AC/DC Adapter is a medical-grade desktop power supply delivering 18 V DC output at 3.33 A current from a broad AC input voltage range of 100 to 264 V IEC 320-C14. It suits applications requiring reliable low leakage current and energy efficiency such as portable medical instruments, home healthcare devices, and various industrial equipment.

This adapter belongs to the GSM60 series designed for high efficiency up to 91%, low no-load power consumption under 0.1 W, and strict adherence to medical safety approvals including ANSI/AAMI ES60601-1 and IEC 60601-1. The device provides multiple built-in protections like short circuit, overload, over voltage, and thermal protection for safe operation.

Constructed with a fully enclosed UL94V-0 rated plastic casing and equipped with a 3-pole IEC 320-C14 AC connector, the GSM60A18-P1J is compact (125mm length × 50mm width × 31.5mm depth) and designed for free air convection cooling, supporting operation temperatures between -30°C and +60°C. It carries certifications such as UL, CUL, TUV, CB, FCC, and CE ensuring global safety compliance.

This power supply complies with energy regulations including ErP step 2 (Level V) and EISA 2007 for energy independence. Its low leakage current under 100 μA enables use in sensitive medical applications requiring patient contact. The LED indicator provides visible power status.

Overall, this MEAN WELL AC/DC adapter delivers a dependable, energy-efficient, and medically approved power solution for electronic and medical equipment, meeting stringent international safety and efficiency requirements.

Offers 80 to 264 VAC full range input operating voltage. Features low leakage current less than 100 μA for patient-contact medical equipment. Designed with high efficiency reaching up to 91% and low standby power consumption below 0.1 W.

Includes multiple protections: short circuit, overload, over voltage, and over temperature. Compact desktop design with IEC 320-C14 AC inlet and LED power indicator. Compliance with international medical safety standards and ErP Level V energy saving regulations.

Operates reliably from -30°C to +60°C ambient temperature. Fully enclosed plastic case rated UL94V-0 and class I power unit with earth ground pin. Discover more medical and industrial Power Supplies in the Electronics & Electricals category at EnvMart for reliable and efficient power solutions.
