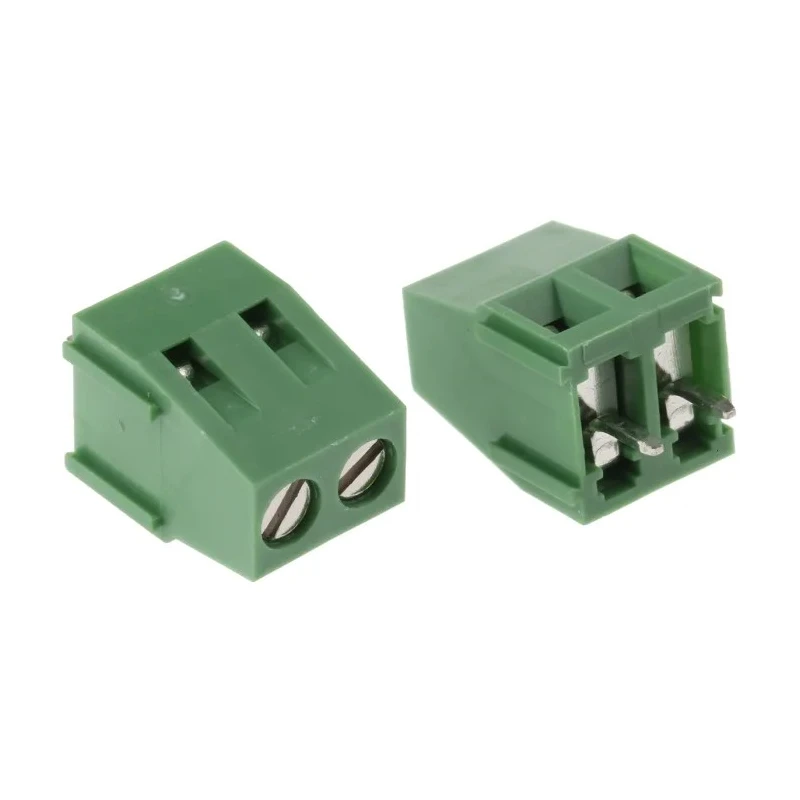

RS PRO PCB Terminal Block, 2-Contact, 5 mm Pitch, 1 Row, 16A, 300V, Polyamide Housing 790-1165
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | 300V |
| Brand | RS PRO |
| Colour | Green |
| Orientation | Straight |
| Current | 16A |
| Length | 10mm |
| Model | 790-1165 |
| Depth | 14mm |
| Width | 10.2mm |
| Housing Material | Polyamide |
| Number of Rows | 1 |
| Pitch | 5mm |
| Number of Contacts | 2 |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 26AWG |
| Wire Connection Method | Screw |
Key Features
- The terminal block supports a current rating of 16A for efficient power handling.
- Constructed with durable polyamide housing ensuring mechanical strength and insulation.
- Designed for 12 AWG minimum to 26 AWG maximum wire sizes with screw-type wire connection method.
- Features straight orientation and green color for easy identification.
- Rated for a voltage of 300V suitable for various electronic applications.
- Provides a professional range of rectangle tin-plated PC tails, ensuring robust solder joints.
- Ideal for industrial, manufacturing, automation, and electronics assembly uses.
Product Description
RS PRO 790-1165 PCB Terminal Block is a high-quality 2-contact, 5 mm pitch, 1-row terminal block designed for reliable PCB electrical connections. It offers a current rating of 16A and voltage rating of 300V, making it suitable for diverse electronic and industrial applications.
Manufactured with a polyamide housing, this terminal block provides excellent mechanical strength and electrical insulation. The wire connection method uses screws compatible with wire sizes ranging from 12 AWG minimum to 26 AWG maximum, supporting robust and secure connections.
Each terminal block features straight orientation with green color coding for straightforward identification during assembly. Its compact size with 10mm length, 10.2mm width, and 14mm depth facilitates easy integration onto printed circuit boards without consuming excessive space.
The terminal block series includes rectangular tin-plated PC tails designed for reliable soldering onto PCBs, enhancing connectivity and durability. This product is ideal for electronics manufacturing, industrial control systems, automation equipment, and a broad range of power and signal applications.
The terminal block supports a current rating of 16A for efficient power handling. Constructed with durable polyamide housing ensuring mechanical strength and insulation. Designed for 12 AWG minimum to 26 AWG maximum wire sizes with screw-type wire connection method.
Features straight orientation and green color for easy identification. Rated for a voltage of 300V suitable for various electronic applications. Compact dimensions: 10mm length, 10.2mm width, and 14mm depth for optimal PCB mounting.
Provides a professional range of rectangle tin-plated PC tails, ensuring robust solder joints. Ideal for industrial, manufacturing, automation, and electronics assembly uses. Explore RS PRO PCB Terminal Blocks and related components on EnvMart for reliable, industrial-grade electronic solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 16A, making it suitable for efficient power handling in various applications.
The terminal block is designed for wire sizes ranging from 12 AWG minimum to 26 AWG maximum, using a screw-type connection method.
The terminal block has a length of 10mm, a width of 10.2mm, and a depth of 14mm, allowing for compact integration on PCBs.
The housing is constructed from polyamide, providing mechanical strength and electrical insulation.
This terminal block features 2 contacts, facilitating reliable electrical connections.
The pitch of this model is 5mm, which is standard for many PCB applications.
It is colored green, which aids in easy identification during assembly.
The terminal block is designed with a straight orientation, facilitating straightforward connections.
The country of origin for this model is Taiwan.
It is ideal for industrial, manufacturing, automation, and electronics assembly applications.
This model utilizes a screw-type wire connection method for secure and robust connections.
