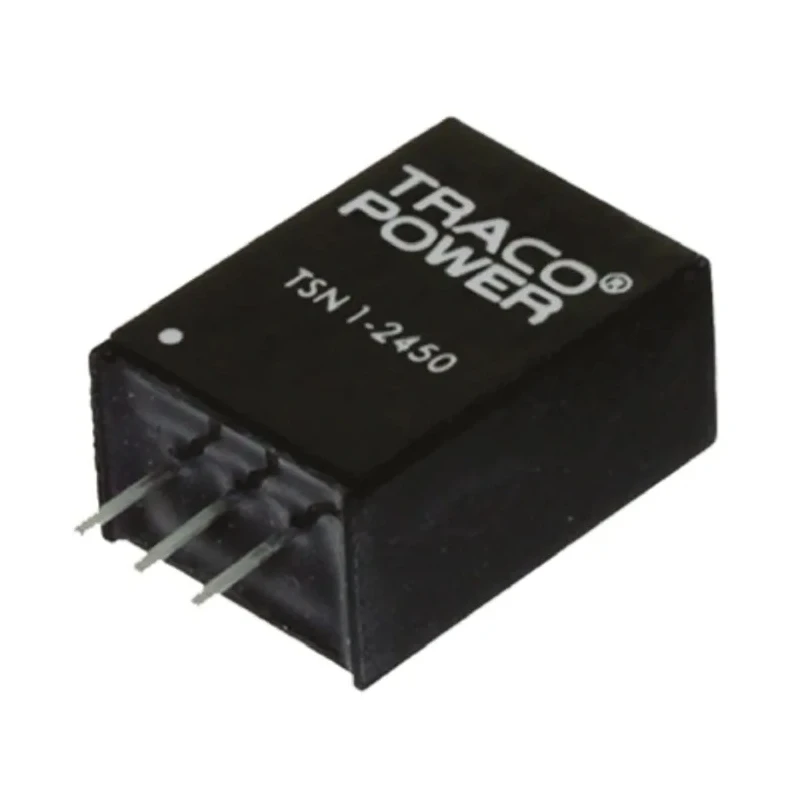

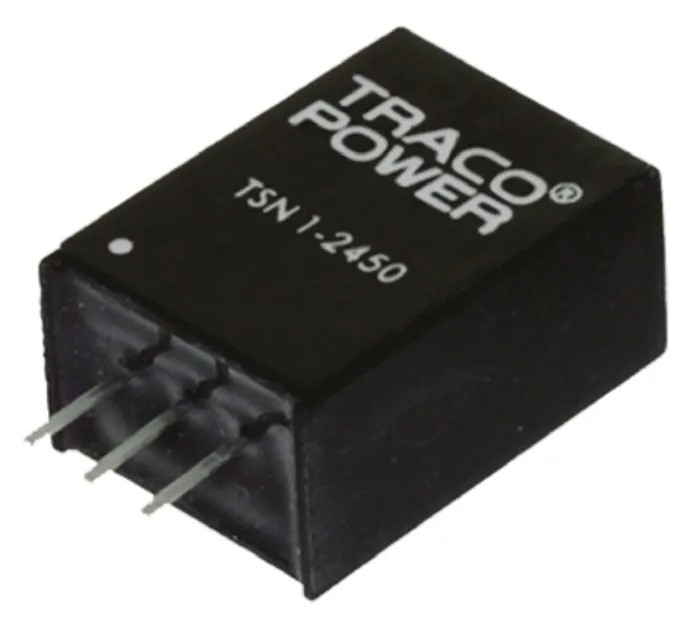

TRACOPOWER Switching Regulator Through Hole Mount -6V DC Output Voltage -1A Output Current TSN 1-2460

TRACOPOWER TSN 1-2460 switching regulator is a high-performance step-down DC/DC converter designed for efficient negative voltage regulation in a compact through-hole package. It delivers a fixed output voltage of -6V DC at an output current of -1A, making it suitable for a wide range of electronic, industrial, and laboratory applications requiring reliable negative voltage supply.

The device replaces traditional linear regulators by providing up to 92% efficiency, which minimizes power dissipation and heat generation. This efficiency allows operation at full load up to +70°C ambient temperature without a heatsink or forced air cooling, with a maximum temperature rating of 85°C with derating.

With a minimum input voltage of 5V AC and maximum input voltage of 32V DC, the TSN 1-2460 supports wide voltage ranges and ensures excellent line and load regulation performance with typical line regulation of 1% and load regulation of 0.6%. The output ripple and noise are low at 50mV peak-to-peak, ensuring clean supply for sensitive electronics.

The compact form factor (11.7 mm length, 7.5 mm width, and 16.5 mm depth) and 3-pin through-hole mount make installation straightforward and space-efficient in PCB designs. Additional protective features include overload, short circuit, and thermal shutdown safeguards enhancing device reliability.

This switching regulator conforms to RoHS and REACH environmental standards and is built to TSN-1 series standards, providing a three-year warranty. It is an ideal solution for energy-sensitive applications and is pin compatible with the common LM79xx series linear regulators for easy replacements.

Mount type is through hole with 3 pins for secure installation. High efficiency of up to 92% reduces power loss during operation. Operates reliably between -40°C and 85°C ambient temperatures. Compact dimensions of 11.7 mm length, 7.5 mm width, and 16.5 mm depth enable space-saving design.

Provides excellent ripple and noise performance with 50mV peak-to-peak output. Supports wide input voltage range from 5V AC minimum to 32V DC maximum. Features protection against overload, short circuit, and over-temperature conditions.

Specifically designed for energy-sensitive applications requiring stable negative output voltages. Complies with RoHS and REACH directives ensuring environmental compliance. Manufactured in Taiwan, Province Of China with a high MTBF of 8,475,000 hours.

For a wide range of industrial, laboratory, and electronics manufacturing needs, the TRACOPOWER TSN 1-2460 offers reliable and efficient power regulation. Explore more high-quality Switching Regulators and power solutions on EnvMart to meet diverse application requirements.
