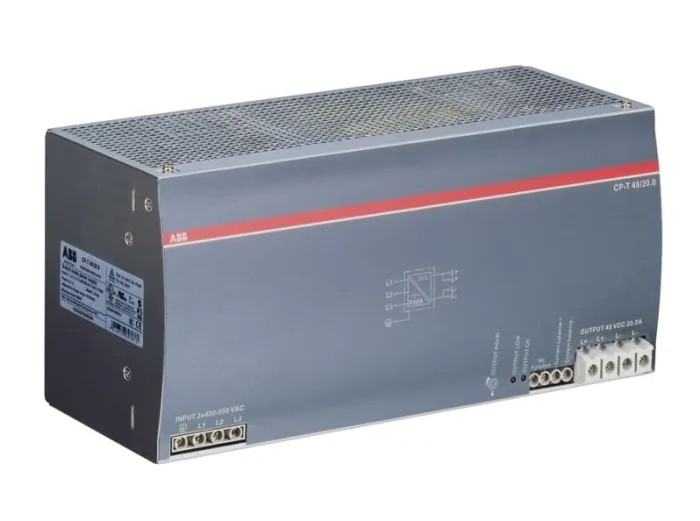

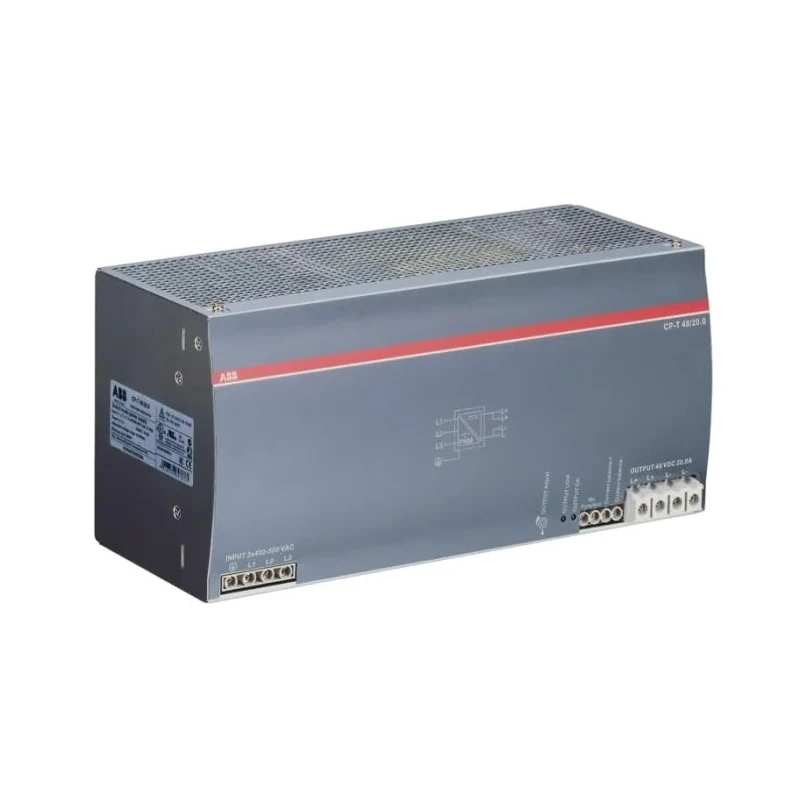

ABB CPT Switched Mode DIN Rail Power Supply 48 V DC, 960 W, 20 A Output, 820 V DC / 575 V AC 1SVR427056R2000 CP-T 48/20.0

ABB 1SVR427056R2000 CP-T 48/20.0 is a high-performance switched mode DIN rail power supply designed for industrial applications requiring stable and efficient power. Delivering a consistent 48 V DC output at 960 W with a 20 A output current, this unit accepts AC/DC input voltages up to 820 V DC or 575 V AC, providing broad compatibility with power sources.

The power supply is housed in a robust IP20 rated metal enclosure that is both touch-safe and resistant to ingress by objects greater than 12 mm, ensuring durability in challenging industrial or manufacturing environments. Operating temperature capability ranges from -40°C to 85°C, supporting reliable performance in extreme conditions.

Compact dimensions (276 mm width, 124 mm height, 118.8 mm depth) allow for space-efficient mounting on standard DIN rails using a snap-on mechanism with an unlock button for easy installation or removal.

Efficiency levels reach 93%, meaning reduced heat generation and energy consumption, beneficial for continuous industrial operations. The unit also incorporates continuous short-circuit protection, safeguarding connected equipment from power faults and improving overall system uptime.

Typical use cases include textile manufacturing, printing, chemical processing plants, and healthcare facilities demanding dependable power supplies with recognized certifications including CE, cRUus, and CSA standards compliance.

For additional flexibility, the output voltage can be increased by connecting multiple units in series if higher voltages are required. This power supply is engineered to maintain steady voltage levels, helping prevent machine failures caused by power fluctuations.

The power supply features a switched mode design from the CPT series for efficient and stable power delivery. It supports a wide input voltage range with 400 V AC minimum and 820 V DC / 575 V AC maximum input voltages. The unit has an IP20-rated metal enclosure that ensures protection against solid objects larger than 12 mm and touch safety.

It is designed to operate in temperatures ranging from -40°C to 85°C, suitable for harsh industrial environments. Installation is streamlined with DIN rail mounting and a convenient unlock button for easy removal. The power supply achieves 93% efficiency, minimizing energy loss and heat dissipation.

Wide application including textile, printing industries, chemical plants, and healthcare facilities. Continuous short-circuit protection enhances operational reliability and safety. Physical dimensions are 276 mm width, 124 mm height, and 118.8 mm depth for compact integration.

Certified compliant with CE, cRUus, and CSA standards. Explore related ABB DIN Rail Power Supplies and components in EnvMart's comprehensive electronics section for industrial power distribution solutions.
