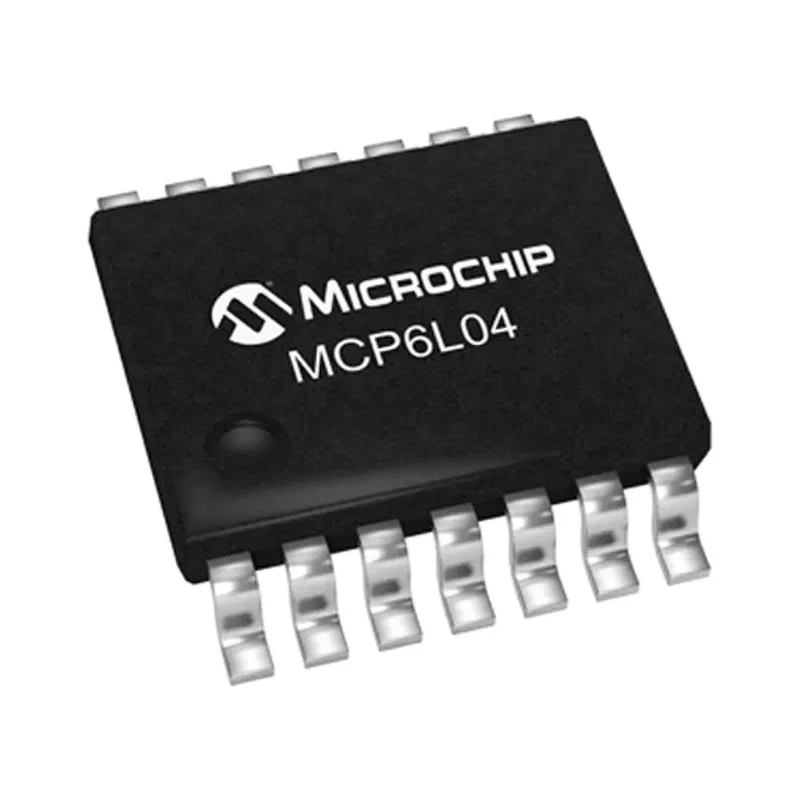

Microchip Operational Amplifier 1 MHz 14-Pin 6V TSSOP MCP6L04T-E/ST
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 1.05mm |
| Length | 5.1mm |
| Model | MCP6L04T-E/ST |
| Width | 4.5mm |
| Mount Type | Surface |
| Supply Voltage range | 1.8V to 6V |
| Series | MCP6L04 |
| Output Current | 30mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TSSOP |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 4 |
| Quiescent Current | 85 μA (typical) |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Maximum Supply Voltage | 6V |
| Minimum Supply Voltage | 1.8V |
| GBP - Gain Bandwidth Product | 1MHz |
| Input Bias Current | 2 pA |
| Vos - Input Offset Voltage | 5 mV |
| Slew Rate | 0.6V/μs |
| Input Offset Current | 1 pA |
| Extended temperature range | -40°C to +125°C |
Key Features
- The device supports a supply voltage range from 1.8V to 6V for flexible power options.
- It has four channels in a single package to accommodate multiple signal processing needs.
- Input bias current is ultra-low at 2 pA, enhancing precision in sensitive circuits.
- Extended operating temperature range from -40°C to 125°C for harsh environmental conditions.
- Output current capability is 30 mA suitable for various driving applications.
- Features rail-to-rail input and output operation for full signal swing performance.
- Device height is 1.05 mm with length and width of 5.1 mm and 4.5 mm respectively.
- Slew rate is 0.6 V/μs, making it suitable for low frequency and general purpose amplifications.
Product Description
Microchip MCP6L04T-E/ST is a high-performance operational amplifier designed for general-purpose applications requiring four channels in a compact 14-pin TSSOP surface mount package. It operates with a gain bandwidth product of 1 MHz and supports supply voltages ranging from 1.8V to 6V, making it adaptable for low-voltage and standard systems.
Its ultra-low input bias current of 2 pA and input offset current of 1 pA make this device ideal for precision analog circuits such as sensor interfaces, data acquisition, and signal conditioning in industrial and commercial sectors. The amplifier maintains accuracy with an input offset voltage of 5 mV and a slew rate of 0.6 V/μs, balancing speed and precision for many control and filtering tasks.
The MCP6L04T-E/ST features rail-to-rail input and output, ensuring a full signal swing even at low supply voltages, enhancing dynamic range performance. The device is rated for extended temperature operation from -40°C to 125°C, suitable for automotive, industrial, and harsh environment applications. With an output current of up to 30 mA, it can drive a range of loads effectively.
Physically the amplifier is compact, measuring 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height, making it suitable for densely packed printed circuit boards. The package complies with RoHS environmental standards, reflecting Microchip's commitment to sustainable electronics manufacturing.
The device supports a supply voltage range from 1.8V to 6V for flexible power options. Four operational amplifier channels in one package. Ultra-low input bias current of 2 pA enhances precision performance. Extended temperature tolerance (-40°C to 125°C) suits harsh environments.
Rail-to-rail input/output for enhanced signal swing. Output current capability of 30 mA for versatile driving applications. Compact 14-pin TSSOP surface mount package dimensions. Typical quiescent current of 85 μA ensures low power consumption.
This Operational Amplifier is broadly applicable in industrial instrumentation, data acquisition systems, signal conditioning, and automotive electronics. It is a reliable choice for engineers requiring a multi-channel amplifier solution with excellent performance and environmental compliance. For more Microchip amplifiers and related semiconductor components, explore the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6L04T-E/ST has a gain bandwidth product of 1 MHz, making it suitable for various signal processing applications.
It supports a supply voltage range from 1.8V to 6V, allowing for flexible power options in different applications.
This operational amplifier features four channels in a single package, accommodating multiple signal processing needs.
The output current capability is 30 mA, making it suitable for various driving applications.
The operational amplifier operates within an extended temperature range of -40°C to 125°C, suitable for harsh environmental conditions.
This model measures 5.1 mm in length, 4.5 mm in width, and 1.05 mm in height, making it compact for PCB applications.
The input bias current is ultra-low at 2 pA, enhancing precision in sensitive circuits.
Yes, it features rail-to-rail input and output operation, ensuring full signal swing performance even at low supply voltages.
The typical quiescent current is 85 μA, ensuring low power consumption during operation.
The slew rate is 0.6 V/μs, making it suitable for low frequency and general purpose amplifications.
This device complies with RoHS environmental standards, reflecting a commitment to sustainable electronics manufacturing.
It is broadly applicable in industrial instrumentation, data acquisition systems, signal conditioning, and automotive electronics.
