Microchip Operational Amplifier 1 MHz 5-Pin 6V SOT-23 MCP6L01RT-E/OT

The Microchip MCP6L01RT-E/OT operational amplifier is a general-purpose, single-channel amplifier designed for surface-mount technology applications. It delivers a gain bandwidth product of 1 MHz under a low quiescent current of only 85 μA, making it ideal for battery-powered and low power circuit designs. This device operates reliably within supply voltages ranging from 1.8V up to 6V and supports a wide temperature range from -40°C to 125°C.

The integrated rail-to-rail input and output stage enable the amplifier to handle signals near the supply rails, maximizing dynamic range in low voltage systems. The input offset voltage is low at 5 mV, and the input bias current is remarkably small at 2 pA, ensuring accurate signal amplification and minimizing error in sensitive circuits.

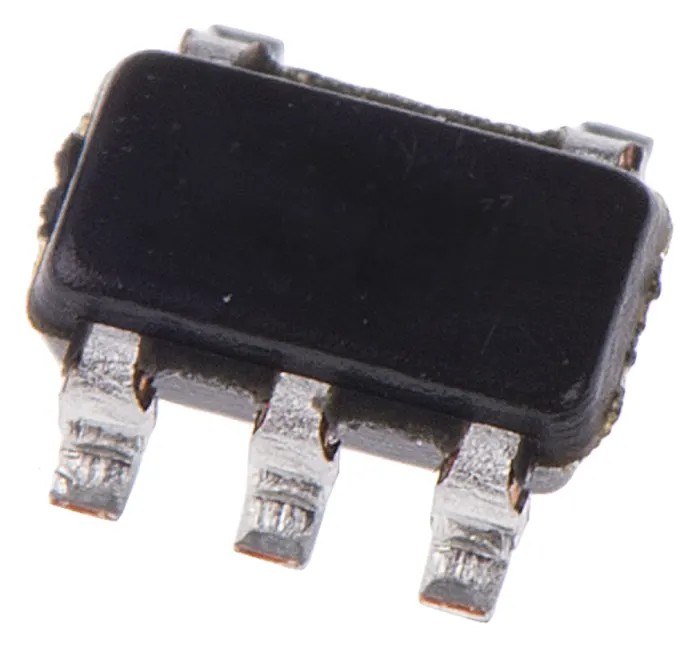

Encased in a compact 5-pin SOT-23 package (dimensions 3.1 mm length, 1.8 mm width, and 1.3 mm height), this amplifier simplifies PCB layout and reduces board space. It provides an output current of up to 30 mA, suitable for most standard amplification tasks in consumer electronics, industrial instrumentation, automotive, and telecommunications.

This product complies with RoHS environmental standards, ensuring it meets regulatory requirements for hazardous substances. It is manufactured in Thailand as part of the MCP6L01 operational amplifier series by Microchip Technology.

Applications for this amplifier include signal conditioning, sensor interfacing, portable instrumentation, and low power analog systems in industrial and commercial environments. Gain bandwidth product of 1 MHz for general purpose amplification.

Low quiescent current of 85 microamps for power-efficient operation. Wide supply voltage range from 1.8V to 6V supports versatile applications. Input offset voltage of 5 mV and extremely low input bias current of 2 pA ensure precision.

Rail-to-rail input and output for full signal swing capability. Operating temperature range from -40°C to +125°C for extended environment tolerance. Compact SOT-23 surface mount package measuring 3.1 mm by 1.8 mm by 1.3 mm.

Output current capability of 30 mA suitable for typical signal conditioning uses. Compliant with RoHS standards for environmental safety. Manufactured in Thailand under Microchip's MCP6L01 series. Explore more Operational Amplifiers and electronic components in the Microchip range at EnvMart.
