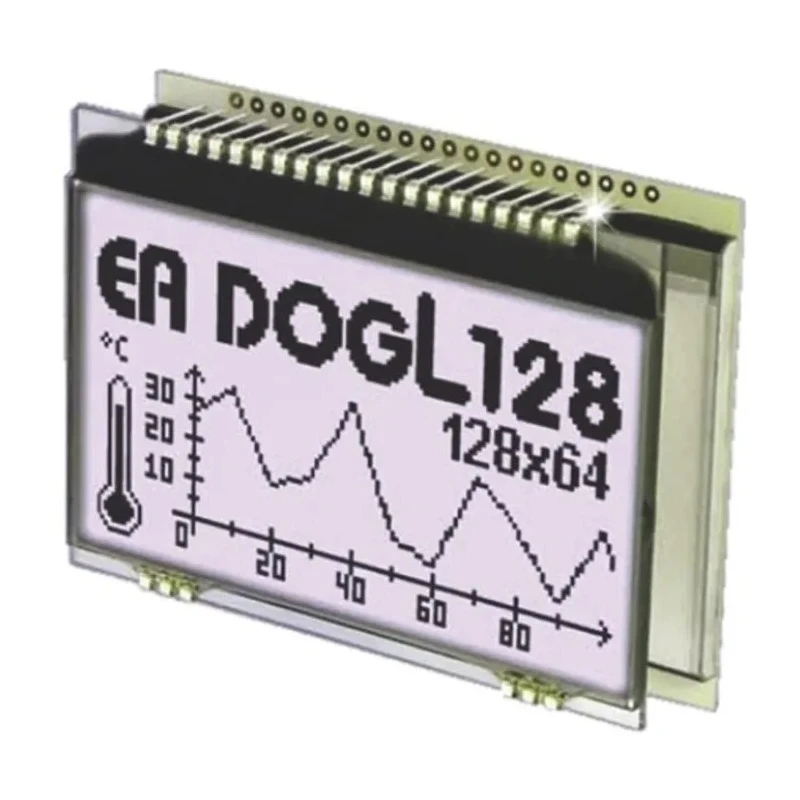

Display Visions EA DOG Graphic LED LCD Monochrome Display, White on Black EA DOGL128W-6
Specifications
| Country of Origin | India |
|---|---|
| Display Type | Graphic |
| Brand | Display Visions |
| Model | EA DOGL128W-6 |
| Series | EA DOG |
| Character height | 4.8mm |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -20°C |
| External Width | 67.8mm |
| External Depth | 2.8mm |
| External Height | 48mm |
| Interface Type | SPI |
| Screen Resolution | 128 x 64 pixel |
| Standards/Approvals | RoHS |
| Illumination Colour | White |
| Viewing Area Dimensions | 64 x 36 mm |
| Backlight Type | LED |
Key Features
- The display offers a 128 x 64 pixel resolution with a viewing area of 64 x 36 mm.
- It features an SPI interface type for efficient communication.
- The display module is equipped with an LED backlight for enhanced visibility.
- Designed for low-power hand-held applications with a single 3.3V power supply.
- Operating temperature range extends from -20°C to 70°C, suitable for diverse environments.
- Compact dimensions include an external width of 67.8 mm, height of 48 mm, and depth of 2.8 mm.
- Character height measures 4.8 mm, ensuring clear display of information.
- The display complies with RoHS standards guaranteeing environmentally safe design.
Product Description
Display Visions EA DOGL128W-6 is a high-contrast graphic LED LCD Monochrome Display module designed for efficient, low-power performance in handheld electronic applications. Featuring a 128 x 64 pixel resolution and a viewing area of 64 x 36 mm, this display delivers crisp and clear images suitable for industrial, laboratory, and embedded system uses.
The module utilizes an SPI interface providing fast and reliable data communication. It operates on a single 3.3V power supply and includes a white LED backlight on a black background to ensure high visibility in various lighting conditions. Its ultra-thin supertwist LCD construction with a minimal 15 μm dot gap ensures sharpness and clarity in the displayed graphics.
Its compact external dimensions (67.8 mm width, 48 mm height, 2.8 mm depth) and character height of 4.8 mm make it ideal for applications where space is limited. The display module is RoHS compliant, meeting environmental safety standards.
Designed for durability, the EA DOGL128W-6 can reliably operate within temperatures from -20°C to 70°C, making it suitable for a range of industrial and environmental conditions. The module solders directly into printed circuit boards, simplifying integration into custom electronics.
The display resolution of 128 x 64 pixels creates detailed readable images. The SPI interface ensures efficient display control. Incorporated LED backlight enhances visibility. Single 3.3V power supply supports low power consumption.
Environmental resilience with extended operating temperature range. Compact, slim form factor fits diverse electronic assemblies. Clear character height of 4.8 mm supports easy reading. RoHS compliant for environmental protection.
Direct PCB soldering eliminates need for additional assembly.
This display module is ideal for use within industrial devices, laboratory instrumentation, handheld data loggers, and other electronic equipment requiring high-quality monochrome graphic displays.
Explore more components and modules from Display Visions and related LCD and LED display technologies in EnvMart’s Electronics Components category for enhanced project designs and solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The display has a resolution of 128 x 64 pixels, providing clear and detailed images.
It utilizes an SPI interface type for efficient communication and control.
The display operates on a single 3.3V power supply, making it suitable for low-power applications.
This model can operate within a temperature range of -20°C to 70°C, allowing it to function in diverse environments.
The external dimensions are 67.8 mm in width, 48 mm in height, and 2.8 mm in depth.
The character height measures 4.8 mm, ensuring clear readability of the displayed information.
Yes, it features a white LED backlight for enhanced visibility in various lighting conditions.
Yes, the display complies with RoHS standards, ensuring it meets environmental safety requirements.
It is ideal for use in industrial devices, laboratory instrumentation, and handheld data loggers requiring high-quality monochrome graphics.
The viewing area dimensions are 64 x 36 mm, providing ample space for displaying information.
The display is manufactured in India, as indicated by its country of origin.
The module is designed to solder directly into printed circuit boards, simplifying integration into custom electronics.
