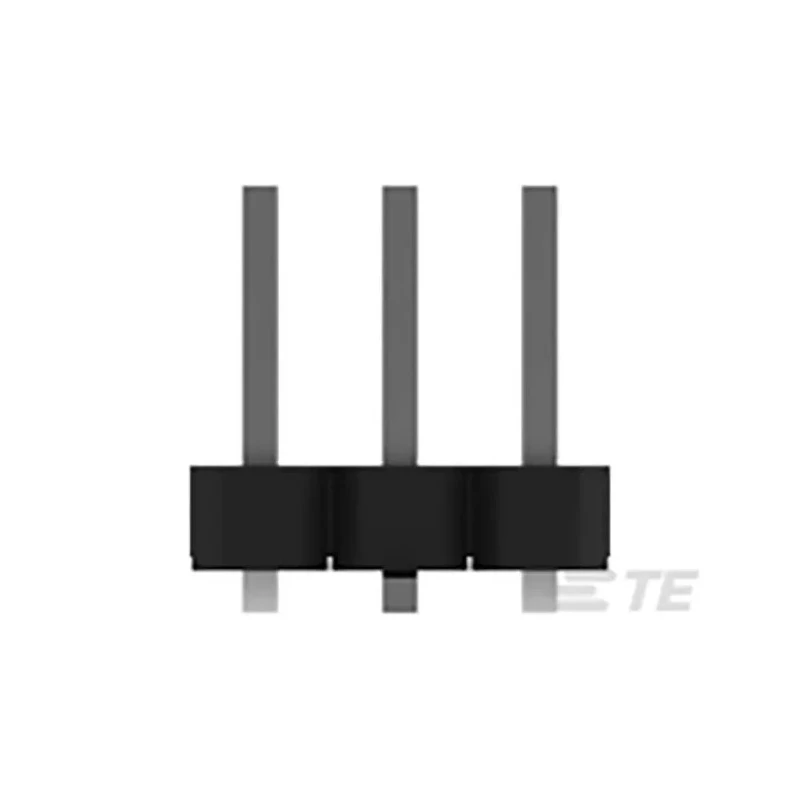

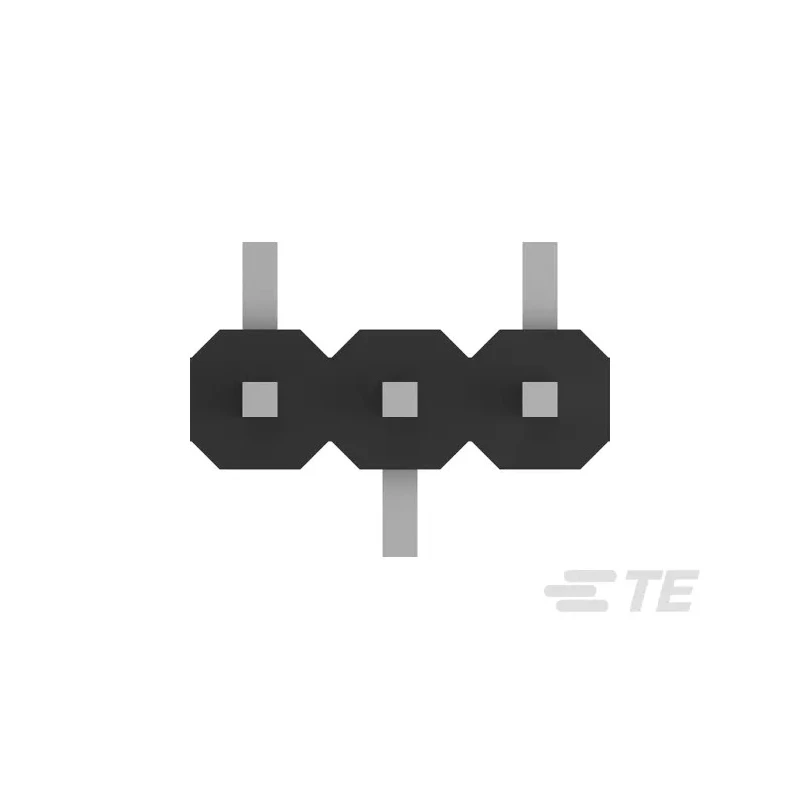

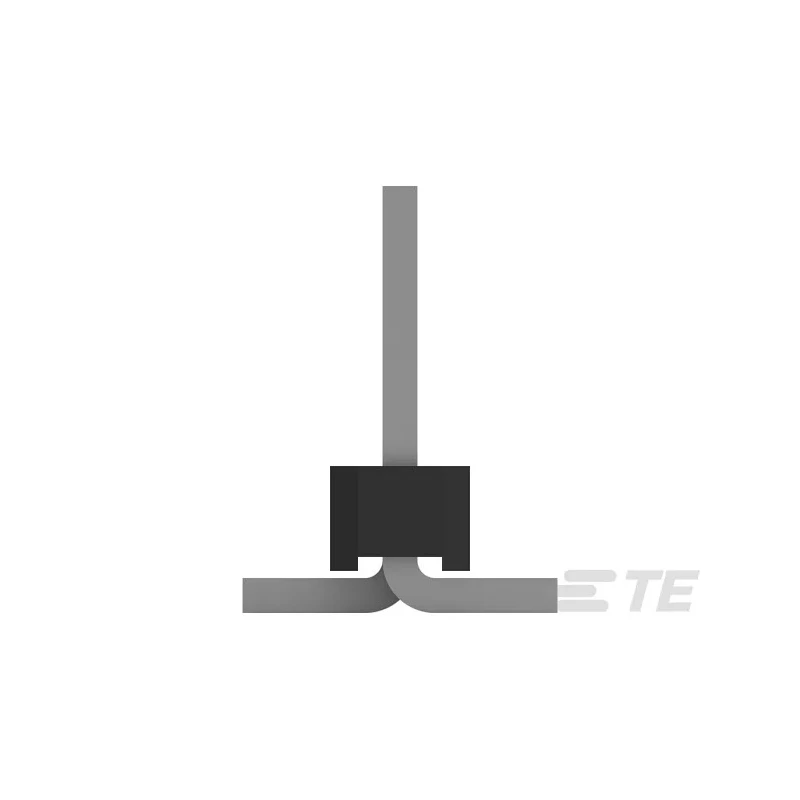

TE Connectivity AMPMODU Series Straight Surface Pin Header, 3 Contacts, 2 mm Pitch, 1 Row, Unshrouded 2842104-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Surface |
| Housing Material | Polyamide |
| Contact Material | Brass |
| Series | AMPMODU |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 1 |
| Environmental | halogen free / low halogen |
| Pitch | 2mm |
| Contact Plating | Nickel |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board |
| Centerline | 2.00mm [0.079"] |
Key Features
- Supports a current rating of 2A for reliable electrical performance.
- Constructed with polyamide housing and brass contacts plated with nickel for durability.
- Surface mount type suitable for board-to-board connections.
- Operates within temperature range from -40°C to 105°C, ensuring stability under various conditions.
- Offers a compact 2.00 mm centerline spacing, occupying 38% less PCB area compared to 2.54 mm pitch variants.
- Designed for automated surface-mount and through-hole reflow manufacturing processes.
- Compatible with multiple solder tail lengths accommodating PCB thicknesses from 1.6 mm to 2.4 mm.
- Halogen-free and low halogen environmental compliance supports safer industrial applications.
Product Description
TE Connectivity 2842104-3 AMPMODU Series Straight Surface Pin Header is a precision engineered connector ideal for electronic components in industrial and manufacturing applications. This pin header features 3 contact positions arranged in a single row with a 2 mm pitch, designed for straight orientation and unshrouded male contacts.
The polyamide housing combined with brass contacts plated with nickel ensures mechanical robustness and reliable electrical connectivity. Rated for 2A current and 125V voltage, this connector supports demanding power and signal transmission requirements. Its operating temperature range from -40°C to 105°C provides versatile usability in various environments including electronics manufacturing, instrumentation, and automation systems.
The 2.00 mm centerline spacing reduces PCB footprint by 38%, enabling more compact electronic assemblies. Dual beam receptacle contacts and multiple solder tail lengths allow compatibility with PCB thicknesses between 1.6 mm and 2.4 mm, facilitating flexible design integration with automated surface-mount and through-hole reflow manufacturing techniques.
This product is halogen free and meets low halogen environmental standards, suitable for industrial, laboratory, and commercial electronic assembly applications. It offers secure board-to-board connector system functionality, supporting stability and ease of assembly in servo drives, PLCs, industrial controls, building automation, and various test and measurement equipment.
Current rating: 2A for stable power delivery. Material: Polyamide housing, brass contacts with nickel plating. Mount type: Surface mount compatible with automated assembly. Temperature range: -40°C to 105°C operational stability.
Pitch: 2 mm centerline for compact PCB designs. Contact gender: Male unshrouded contacts. Environmentally compliant: Halogen free / low halogen. Industrial controls, instrumentation, servo drives, building automation.
For a reliable and compact PCB Pin Header suitable for multiple industrial and manufacturing purposes, the TE Connectivity AMPMODU Series 2842104-3 is an excellent choice. Explore more connectors and related electronic components in the Electronics Components category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a current rating of 2A, ensuring reliable electrical performance for various applications.
The pin header is rated for a maximum voltage of 125V, suitable for demanding power and signal transmission requirements.
It operates within a temperature range from -40°C to 105°C, providing stability under various environmental conditions.
The housing is made of polyamide, while the contacts are brass plated with nickel, ensuring mechanical robustness and reliable connectivity.
This connector features 3 contacts arranged in a single row, designed for straight orientation and unshrouded male contacts.
The pin header has a compact 2 mm pitch, which occupies 38% less PCB area compared to 2.54 mm pitch variants.
It is designed for surface mount applications, suitable for automated assembly processes.
The termination type for this model is solder, allowing for secure connections on printed circuit boards.
Yes, it is halogen-free and meets low halogen environmental standards, making it suitable for safer industrial applications.
It is suitable for various applications including industrial controls, instrumentation, servo drives, and building automation.
This model accommodates PCB thicknesses between 1.6 mm and 2.4 mm with multiple solder tail lengths available.
The country of origin for this product is India, reflecting its manufacturing location.
