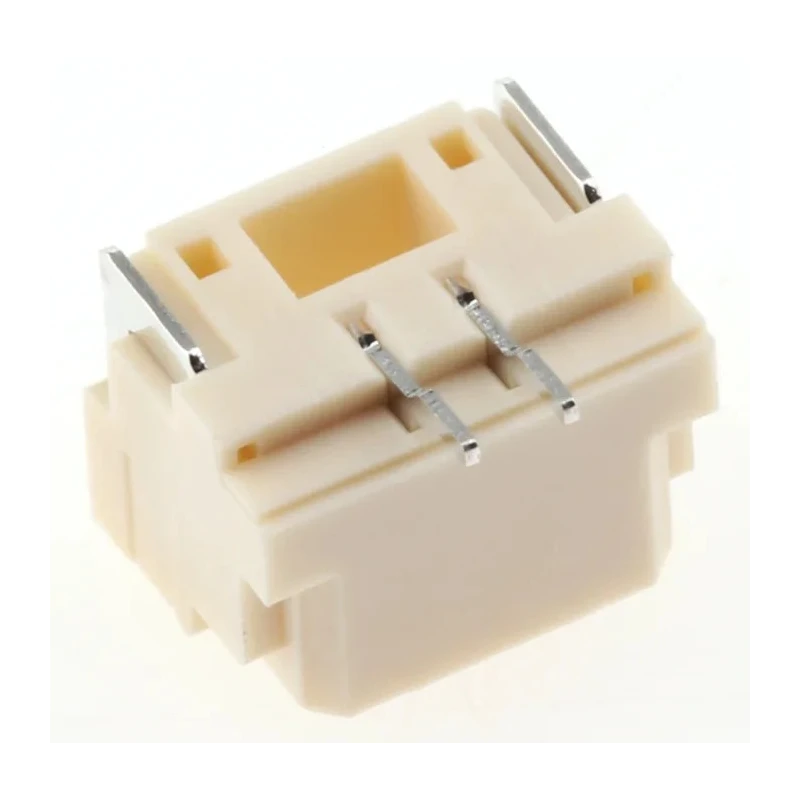

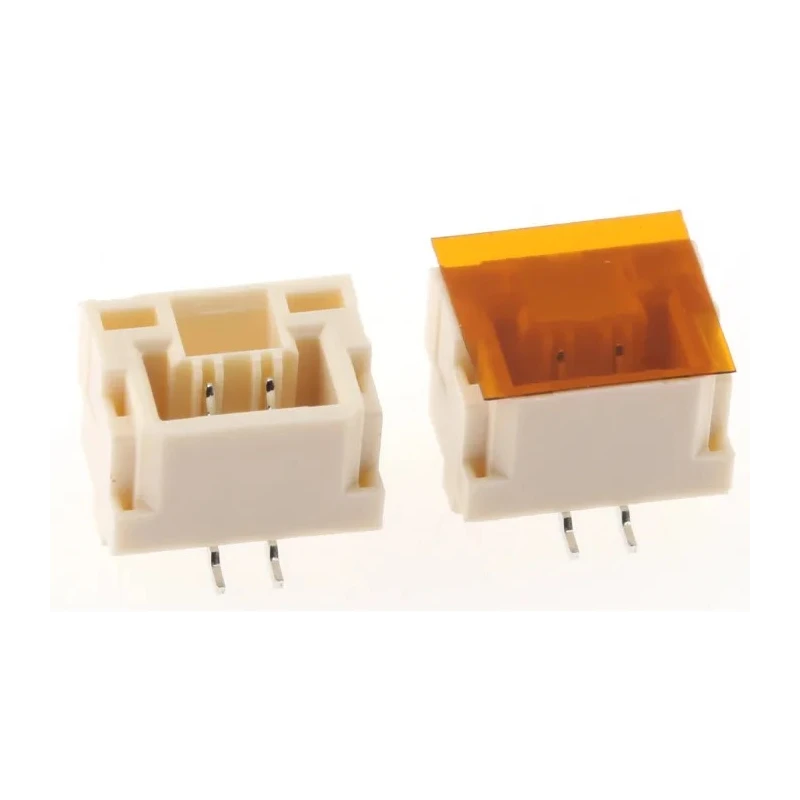

JST GH Series Straight Surface PCB Header 2 Contacts 1.25 mm Pitch 1 Row Shrouded BM02B-GHS-TBT(LF)(SN)

Free Delivery in India | Lowest Global Shipping Charges

JST GH Series Straight Surface PCB Header 2 Contacts 1.25 mm Pitch 1 Row Shrouded BM02B-GHS-TBT(LF)(SN)



Category PCB Headers Brand JST Condition New

Specifications

Country of Origin	India
Voltage	50V
Brand	JST
Orientation	Straight
Current	1A
Model	BM02B-GHS-TBT(LF)(SN)
Mount Type	Surface
Housing Material	Polyamide
Contact Material	Phosphor Bronze
Series	GH
Termination Type	Solder
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of Rows	1
Pitch	1.25mm
Contact Plating	Tin
Number of Contacts	2
Contact Gender	Male
Shrouded/Unshrouded	Shrouded
Connector System	Wire-to-Board

Key Features

The connector is shrouded to provide secure housing protection.
Current rating of 1 ampere ensures suitable operation for low power electronic applications.
Constructed from polyamide housing material offering durability and heat resistance.
Contacts are made of phosphor bronze with tin plating to ensure reliable electrical conductivity and solderability.
Mount type is surface mount for efficient PCB soldering and assembly.
It operates within a temperature range of -25°C to 85°C, suitable for various industrial environments.
The orientation is straight with a row pitch of 1.25 mm, suitable for compact PCB layouts.
Termination type is solder ensuring strong mechanical and electrical bonds.

Product Description

The JST BM02B-GHS-TBT(LF)(SN) is a precision-engineered straight surface mounting PCB header featuring 2 contacts arranged in a single row with a 1.25 mm pitch. It is part of the reliable GH Series designed to provide secure wire-to-board connections for compact electronic devices.

This header is shrouded to protect the contacts and ensure proper mating engagement. The housing is made of polyamide, which offers excellent thermal stability and mechanical strength. The fork-shaped contacts are crafted from phosphor bronze and plated with tin to enhance conductivity and resistance to corrosion.

Operating within a temperature range of -25°C to 85°C, this connector is suitable for various industrial, consumer electronics, and display applications including PDP and LCD panels. Surface mount technology enables efficient PCB assembly and reliable mechanical solder joints.

The wire-to-board GH Series SH connectors incorporate a locking mechanism to securely hold the connector parts in place, minimizing the risk of disconnection due to vibration or handling. The 1.25 mm pitch allows for compact board designs without compromising electrical performance, rated up to 1 ampere and 50 volts.

The JST BM02B-GHS-TBT(LF)(SN) offers consistent electrical reliability for low power signals in industrial automation, instrumentation, communication equipment, and consumer electronics manufacturing.

The connector is shrouded for enhanced durability and connection security. Polyamide housing material provides heat resistance and robustness. Phosphor bronze contacts with tin plating ensure excellent conductivity. Surface mount solder termination supports automated PCB assembly.

Rated for 1A current and 50V voltage use in electronic circuits. Operating temperature range from -25°C to 85°C supports many industrial settings. Single row design with 1.25 mm pitch suits compact electronic layouts. Male contact gender for standard wire-to-board mating interface.

Locking mechanism in GH Series ensures secure connector mating. Widely used in display, instrumentation, and small electronic equipment applications.

This product is categorized under PCB Headers at EnvMart, suitable for professionals seeking dependable PCB connectors for low-voltage electronic designs. Explore more from JST GH Series for comprehensive wire-to-board connectivity solutions.
