Souriau Sunbank by Eaton Circular Connector Flange Mount Plug Male 40 Contacts IP68 1500V Crimp Termination CL1M4201

Souriau Sunbank by Eaton CL1M4201 circular connector is a flange mount plug with 40 contacts designed for industrial use, operating at 1500V and featuring crimp termination. It delivers safe and reliable electrical connections in demanding environments, designed for applications requiring a current rating of 7A and an IP68 ingress protection rating.

The connector incorporates thermoplastic housing that withstands environmental stress and features gold over nickel plated copper alloy contacts for enhanced conductivity and corrosion resistance. Its crimp termination type uses rear insert contacts secured by a locking retention plate, promoting maintenance efficiency and ease of use. The connector supports operating temperatures from -40°C to 125°C, making it suitable for a range of temperature-sensitive industrial applications.

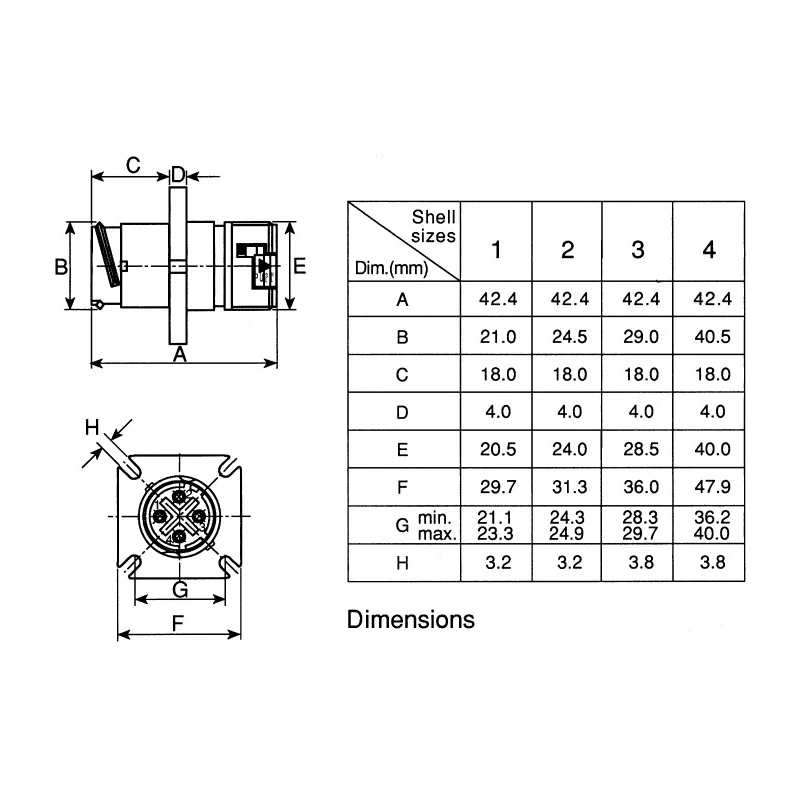

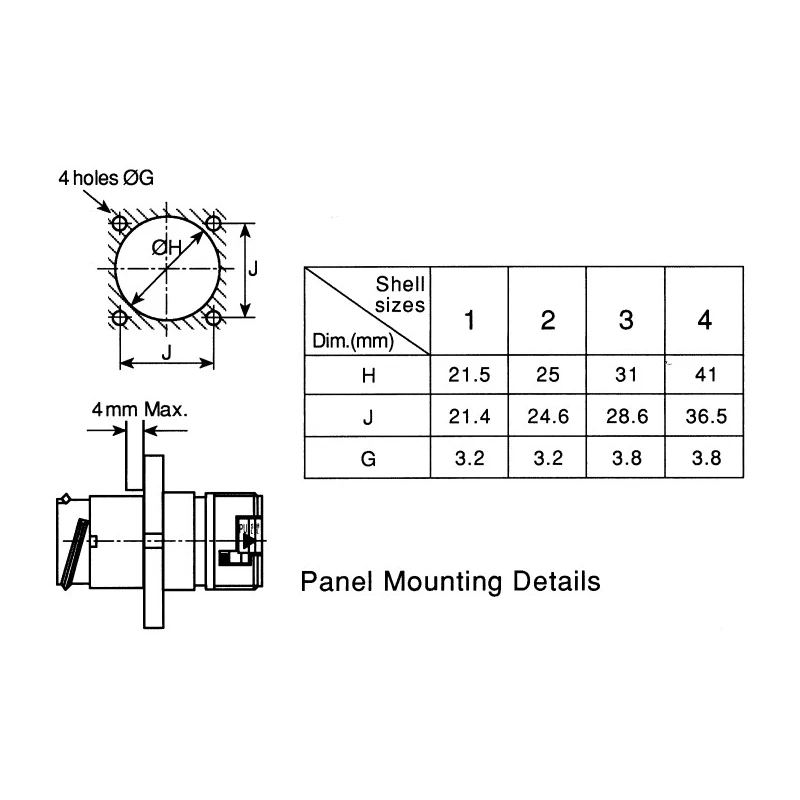

Its flange mount enables panel installation up to 4mm thickness with threaded mating types and straight orientation, supporting secure and stable connections. The panel shell dimensions are compatible with MIL-C-5015 connector sizes, ensuring broad mounting interchangeability. The Clipper series offers plastic industrial connectors with IP67 sealing and scoop proof design, allowing safe mating and unmating even during blind connection tasks.

These connectors are commonly used in industrial, manufacturing, and electronic component assemblies, providing flexible and durable solutions for power and signal transmission in harsh environments. The cable mount sockets can accept various cable clamps and sealing glands, enhancing adaptability for complex setups.

Designed for a maximum current rating of 7A and voltage of 1500V. Constructed with thermoplastic housing for durability in harsh environments. Features gold over nickel plating on copper alloy contacts for reliable conductivity and corrosion resistance.

Supports crimp termination with rear insert contacts for secure connections. Operates reliably within a temperature range of -40°C to 125°C. Equipped with a threaded mating type and straight orientation for panel plug mounting.

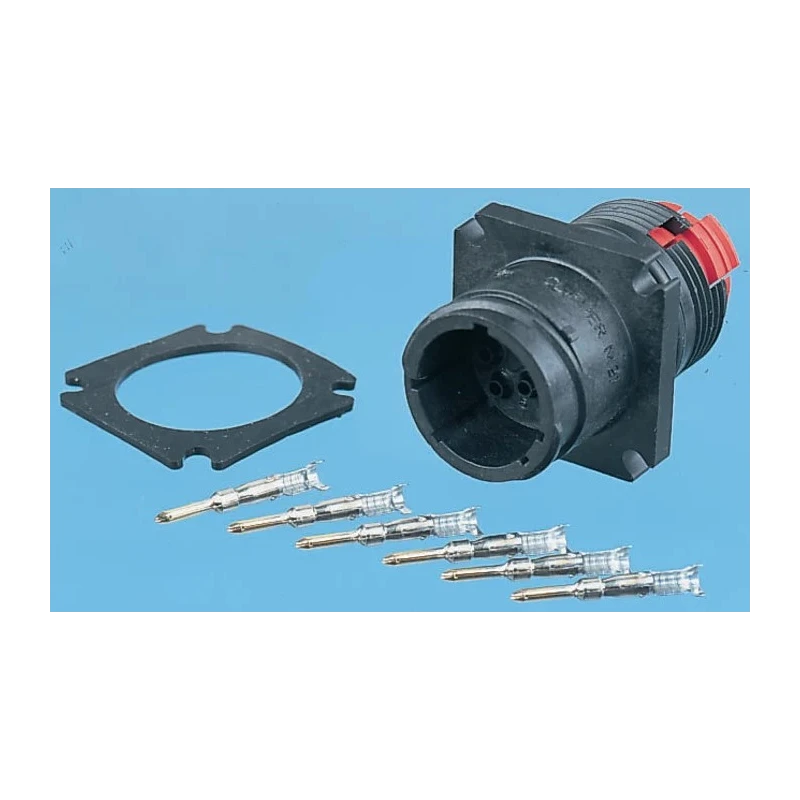

Compatible with MIL-C-5015 connector dimensions allowing interchangeability. Clipper series plastic industrial connector ensures sealing to IP67 standards and scoop proof design for safe mating. Set contains one Souriau Sunbank by Eaton CL1M4201 plug connector. For optimal performance, sealing gaskets and contacts should be ordered separately as needed.
