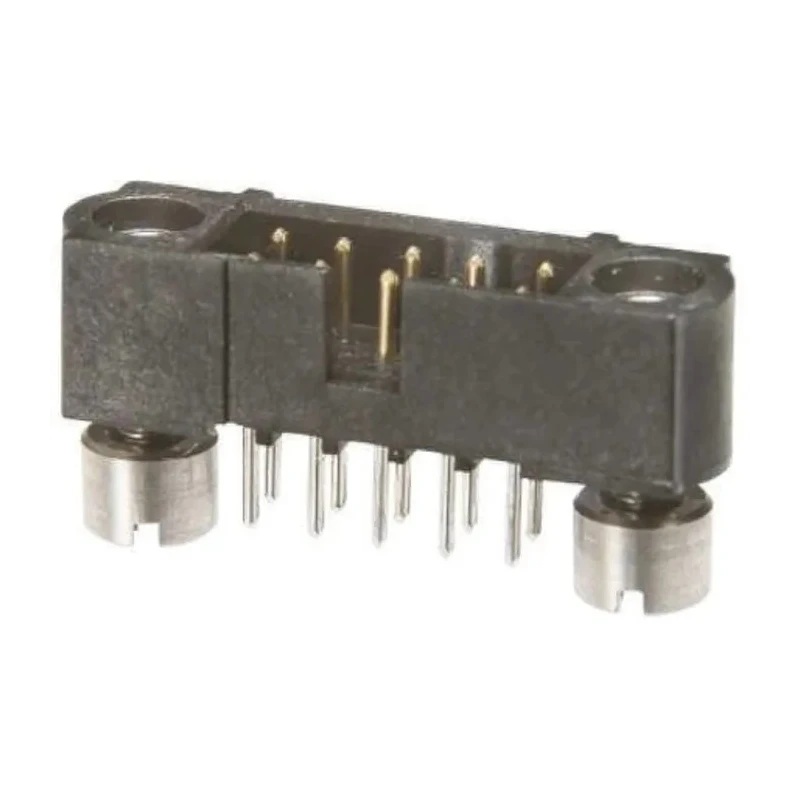

HARWIN Datamate J-Tek Series Straight Through Hole PCB Header, 12 Contact(s), 2 mm Pitch, 2 Row, Shrouded M80-5101242

HARWIN M80-5101242 is a high-reliability PCB Header from the Datamate J-Tek Series, featuring a straight through hole design with 12 male contacts spaced at a 2 mm pitch arranged in 2 rows with a shrouded housing. This connector is engineered for industrial, military, and harsh environment applications where durability and secure connections are critical.

The housing is constructed from Polyphenylene Sulphide, providing excellent thermal and chemical resistance, while the phosphor bronze contacts with gold plating ensure low-resistance electrical connections and high mating cycle life. Rated for 3A current and 120V voltage, the connector supports board-to-board and wire-to-board systems, suitable for numerous PCB interconnect applications.

Operating temperature ranges from -55°C to 125°C, making it suitable for severe industrial environments. The 3 mm tail pin length ensures reliable soldered joints in through-hole PCB assembly. Polarized molded design prevents incorrect mating, increasing operational safety and reliability.

The Datamate J-Tek range incorporates features such as four-finger beryllium copper contacts for secure, vibration-resistant connections and is compliant with standards BS9525-F0033, MIL C 55302, and CEC 75101-008, attesting to its quality and ruggedness. Manufactured in the United Kingdom, this connector upholds strict quality standards.

The connector supports a current rating of 3A, suitable for moderate power applications. It uses a robust Polyphenylene Sulphide housing for enhanced durability and heat resistance. Contacts are made from phosphor bronze with gold plating for reliable low-resistance connections.

Designed for board-to-board and wire-to-board connector systems with solder termination. Operating temperature ranges from -55°C to 125°C, supporting harsh environments. Tail pins are 3mm long to ensure secure soldering in through-hole PCB assembly.

The connector is male gender with a polarized molded design to avoid mismating. It complies with military and industry standards including BS9525-F0033 and MIL C 55302 for reliability. Manufactured in the United Kingdom, ensuring quality and consistency.

This PCB header is ideal for demanding applications within industrial manufacturing, aerospace, military electronics, medical devices, and telecommunications sectors. Its combination of durability, electrical performance, and compliance with standards makes it a reliable choice for sophisticated electronic assemblies requiring robust board-to-board or wire-to-board connections.
