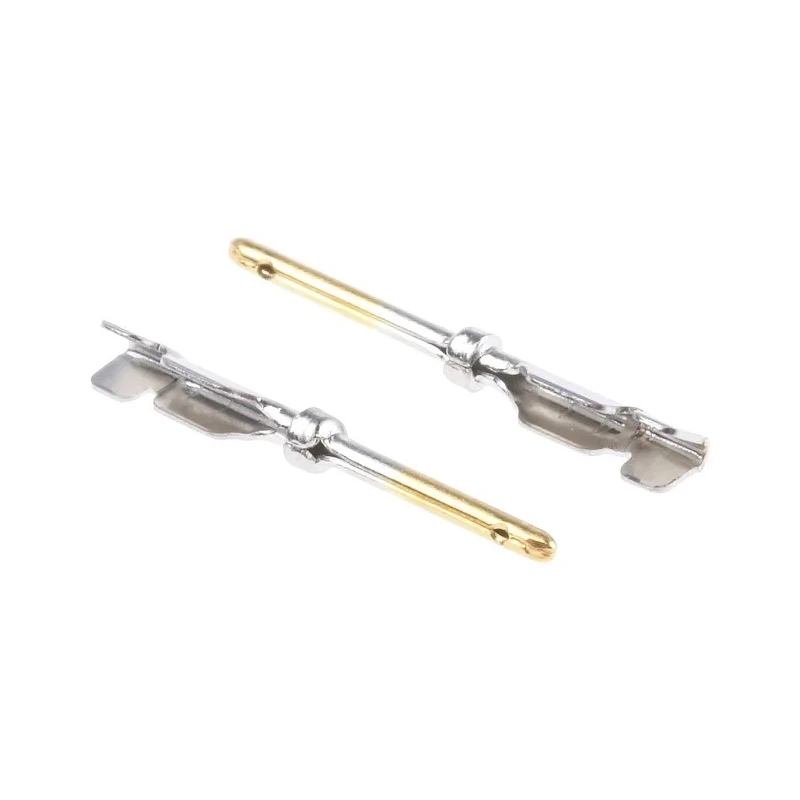

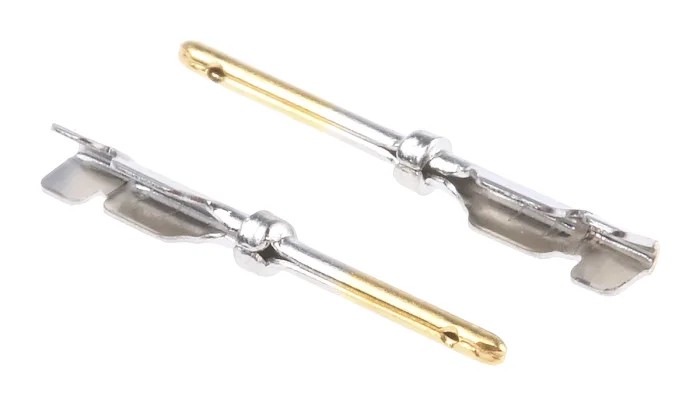

HARTING D-Sub High Density Series Male Crimp D-Sub Connector Contact Gold Crimp 24 AWG 09560008175

Name: HARTING D-Sub High Density Series Male Crimp D-Sub Connector Contact Gold Crimp 24 AWG 09560008175
Brand: HARTING
SKU: 104050
Price: 0.37 USD
Availability: InStock



Category D-Sub Connector Contact Brand HARTING Condition New

Specifications

Country of Origin	China
Brand	HARTING
Current	2A
Length	14mm
Gender	Male
Contact Material	Copper Alloy
Series	D-Sub High Density
Termination Type	Crimp
Contact Type	Crimp
Contact Plating	Gold
Minimum Wire Size mm²	0.14mm²
Maximum Wire Size mm²	0.22mm²
Minimum Wire Size AWG	26AWG
Maximum Wire Size AWG	24AWG
Maximum Contact Resistance	20mΩ

Key Features

Constructed from durable copper alloy for long-lasting performance.
Gold-plated contact improves conductivity and resists corrosion.
Compatible with wire sizes ranging from 26 AWG to 24 AWG.
Crimp termination ensures secure and robust connections.
Rated for 2A current capacity with a maximum contact resistance of 20mΩ.
Designed for demanding industrial and electronic applications.

Product Description

HARTING 09560008175 Male Crimp D-Sub Connector Contact from the D-Sub High Density Series is engineered for high-reliability applications in electronics and industrial environments. Constructed from copper alloy with gold plating, this contact ensures excellent conductivity and durability. It supports wire sizes from 26 AWG to 24 AWG and utilizes a crimp termination for robust mechanical and electrical connections. With a length of 14mm, it fits precisely into high-density connector arrangements requiring secure male contacts.

The gold plating enhances resistance to corrosion and oxidation, maintaining low contact resistance over time. This connector is rated for a current capacity of 2A and offers a maximum contact resistance of 20 milliohms, making it reliable for signal and power transmission in automation, control equipment, circuit boards, and industrial machinery. It is especially suitable where precise, vibration-resistant connections are required.

The crimp termination method ensures secure wire attachment, reducing the risk of connection loosening under mechanical stress. Common use cases include electronic device assembly, power distribution in industrial machinery, and joining wires in mechanical devices needing exact fittings.

This component is manufactured in China and is ideal for users seeking durable, high-performance D-Sub Connector Contacts in compact high-density configurations. Constructed from copper alloy for durability. Gold plating for enhanced electrical performance.

Crimp termination for secure connections. Compatible with 26 AWG to 24 AWG wires. Rated for 2A current with low contact resistance. Length of 14mm for precise fitting. Suitable for industrial and electronic assemblies. Explore our full range of D-Sub connector solutions for comprehensive electronics and industrial connectivity needs on EnvMart.

Looking to purchase in bulk?

Purchase item in bulk quantity
Get best price for your business

Comments (0)

No customer reviews for the moment.

Frequently Asked Questions

It is rated for a current capacity of 2A, making it suitable for various electronic and industrial applications.

This connector contact is compatible with wire sizes ranging from 26 AWG to 24 AWG.

It is constructed from a copper alloy and features gold plating for improved conductivity and corrosion resistance.

The length of this contact is 14mm, allowing for precise fitting in high-density connector arrangements.

It utilizes a crimp termination method, ensuring secure and robust connections for reliable performance.

The maximum contact resistance is 20 milliohms, which helps maintain low resistance over time.

This product is manufactured in China.

It is suitable for electronic device assembly, power distribution in industrial machinery, and joining wires in mechanical devices.

The gold plating enhances electrical performance by improving conductivity and providing resistance to corrosion and oxidation.

This is a male crimp contact designed for high-density applications in electronics and industrial environments.

Yes, it is designed for demanding applications where precise, vibration-resistant connections are required.

Key features include a copper alloy construction, gold plating, crimp termination, compatibility with 26 AWG to 24 AWG wires, and a maximum contact resistance of 20mΩ.
