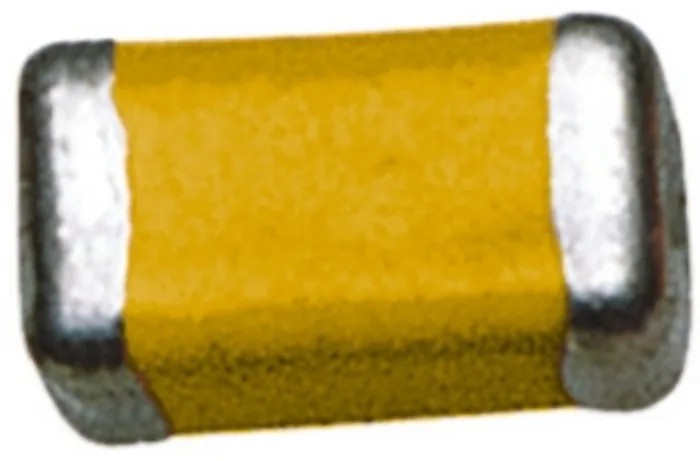

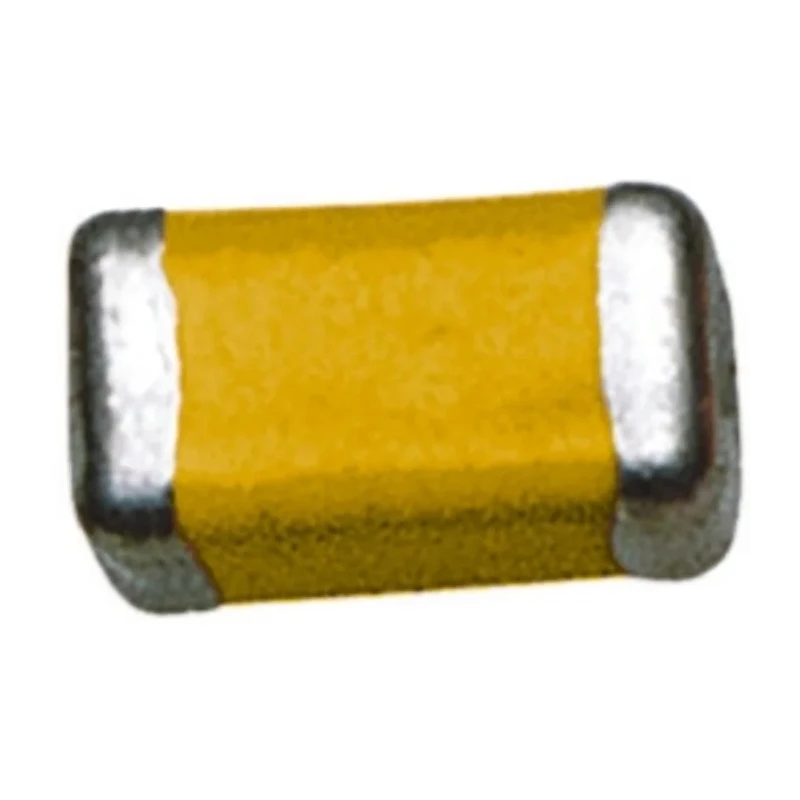

TDK 100 nF Multilayer Ceramic Capacitor 100V DC X7R Dielectric Tape & Reel Surface Mount C3216X7R2A104K160AA

Free Delivery in India | Lowest Global Shipping Charges

TDK 100 nF Multilayer Ceramic Capacitor 100V DC X7R Dielectric Tape & Reel Surface Mount C3216X7R2A104K160AA



Category Multilayer Ceramic Capacitor Brand TDK Condition New

Specifications

Country of Origin	India
Voltage	100V dc
Brand	TDK
Height	1.6mm
Length	3.2mm
Model	C3216X7R2A104K160AA
Packaging	Tape & Reel
Width	1.6mm
Mount Type	Surface
Series	C
Termination Type	Surface Mount
Maximum Operating Temperature	125°C
Tolerance	±10 %
Capacitance	100nF
Minimum Operating Temperature	-55°C
Package/Case	1206
Dielectric	X7R

Key Features

Utilizes X7R dielectric ensuring temperature stability and reliable performance.
Compact 1206 package with dimensions 3.2 mm length, 1.6 mm width, and 1.6 mm height.
Suitable for applications in power supply circuits, LED displays, mobile communications, and general electronic equipment.
Features low equivalent series resistance (ESR) and low self-heating for enhanced ripple current tolerance.
Tolerance of ±10 % accommodates typical variations in capacitance for commercial-grade applications.
Offers a broad temperature range from -55°C to +125°C for wide operational use.
Packaged on tape and reel to facilitate automated PCB assembly processes.
Surface mount termination suitable for high-density circuit boards.

Product Description

TDK C3216X7R2A104K160AA is a reliable and high-performance 100 nF Multilayer Ceramic Capacitor designed for commercial-grade applications. It features a 100V DC voltage rating and ±10 % capacitance tolerance, utilizing the X7R dielectric to ensure temperature stability and mechanical strength. Housed in a compact 1206 package (3.2 mm length x 1.6 mm width x 1.6 mm height), this surface mount device is ideal for a variety of electronic components and equipment including power supply circuits, LED display modules, mobile communication devices, and office automation equipment.

This capacitor offers excellent frequency response characteristics due to its low equivalent series inductance (ESL) and low equivalent series resistance (ESR). Its monolithic multilayer structure enables high capacitance values with multiple thin ceramic dielectric layers, while maintaining low self-heating and superior ripple resistance.

Designed to operate reliably over a wide temperature range from -55°C to 125°C, it ensures stable performance in challenging environments common in industrial and commercial electronics. The capacitor comes in a tape and reel packaging format, supporting efficient automated placement and soldering during high-volume manufacturing.

Applications extend to a broad spectrum of commercial electronics, including LED displays, PCs, notebooks, servers, and mobile communication systems where precise capacitance and stable voltage handling are critical.

Utilizes X7R dielectric for temperature stability. Compact 1206 case size supports high-density PCB layouts. 100 nF capacitance with ±10% tolerance ensures reliable filtering and decoupling in circuits. Rated for 100V DC operation, suitable for a wide range of power electronic applications.

Low ESR and ESL for improved frequency response and reduced noise. Wide operating temperature range from -55°C to 125°C preserves performance under varying conditions. Tape & reel packaging optimizes assembly with surface mount technology.

Suitable for commercial-grade electronic devices including LED displays and communication equipment. Explore the full range of Multilayer Ceramic Capacitors at EnvMart for diverse industrial and commercial electronic applications.
