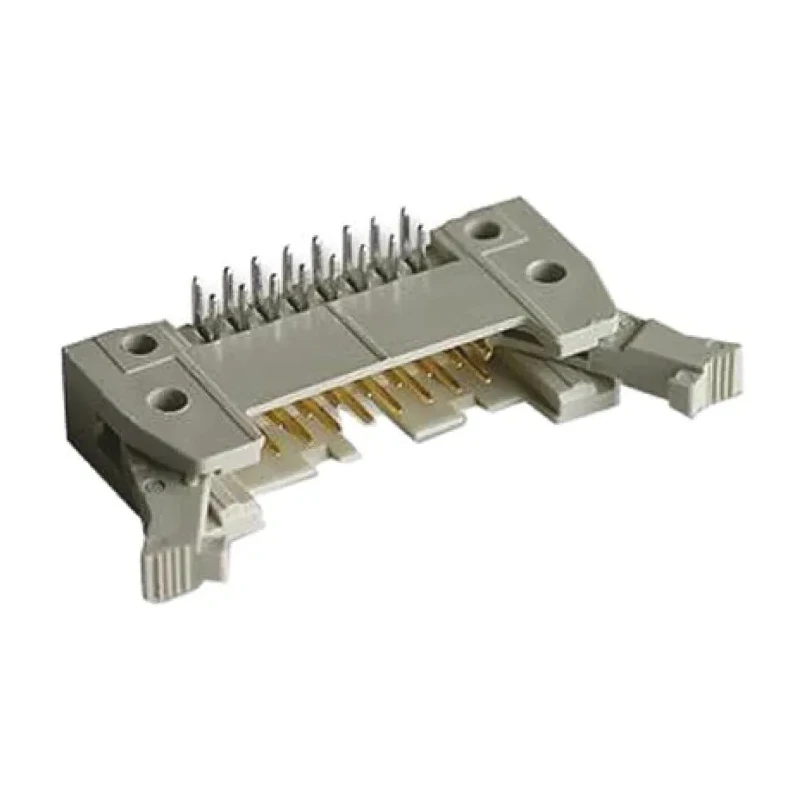

HARTING SEK 18 Series Right Angle Through Hole PCB Header, 16 Contacts, 2.54 mm Pitch, 2 Row, Shrouded 09185166903

HARTING 09185166903 PCB Header from the SEK 18 Series is a high-quality electronic component designed for secure and efficient board-to-wire connections. Featuring a right angle through-hole mount style with a shrouded housing, this connector ensures stable mechanical and electrical performance in various applications.

The header includes 16 male contacts arranged in two rows with a precise 2.54 mm pitch. The contacts are made from a copper alloy and plated with gold, providing excellent conductivity and resistance to corrosion. Its polybutylene terephthalate housing offers robustness and reliability, essential for use in demanding industrial environments.

Operating specifications are rated up to 1A current and 500V voltage, with a temperature range extending from minus 55 degrees Celsius to 125 degrees Celsius, making it suitable for harsh conditions. The solder termination allows for easy and reliable assembly on printed circuit boards.

This product meets IEC 60 603-13 standards and is UL approved, reflecting compliance with international safety and quality requirements. The PCB hole diameter is calibrated at 1 ± 0.1 mm, ensuring proper fitting during installation.

Applications for this PCB header include industrial electronics, manufacturing equipment, automation control systems, and power distribution modules where reliable electrical connections and environmental durability are critical.

The header features a shrouded housing made from durable polybutylene terephthalate. It has 2 rows of male contacts plated with gold for superior conductivity. Mount type is through hole with right angle orientation for PCB assembly flexibility.

Rated for 1A current and operating voltage up to 500V, suitable for various electronic applications. Designed to operate between −55°C and 125°C ensuring performance in harsh environments. Each contact is made of copper alloy, ensuring durability and corrosion resistance.

Termination is solder type, compatible with standard PCB manufacturing processes. Performance level 2 with PCB hole diameter of 1 ± 0.1 mm. Meets IEC 60 603-13 standards and carries UL approvals for safety compliance. Ideal for industrial electronics, control systems, and automation equipment.
