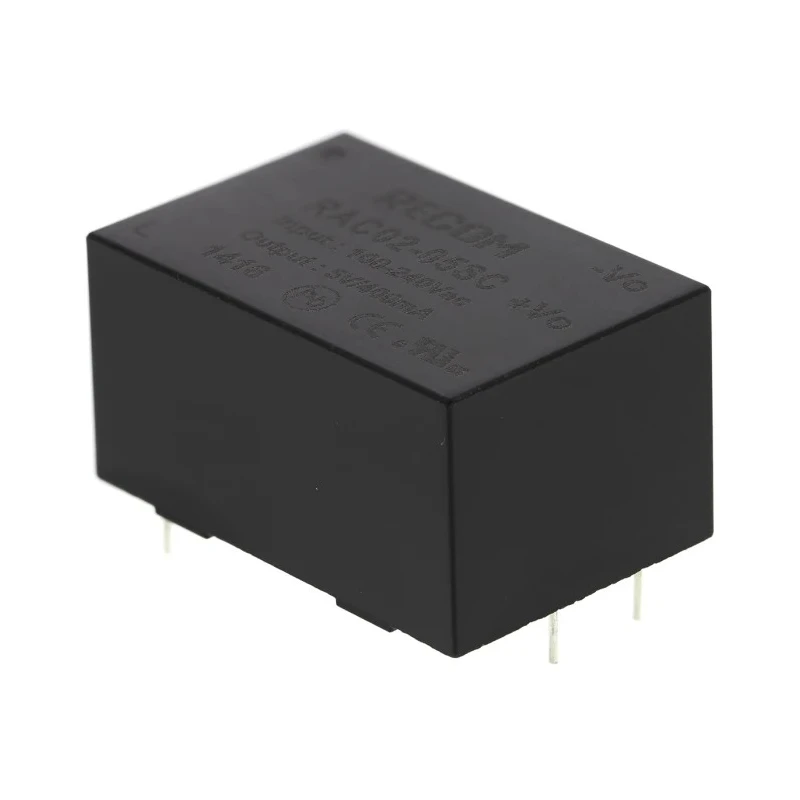

Recom Switching Power Supply 5V dc, 2 W, 277V ac, PCB Mount, Single Output RAC02-05SC

Free Delivery in India | Lowest Global Shipping Charges

Recom Switching Power Supply 5V dc, 2 W, 277V ac, PCB Mount, Single Output RAC02-05SC

Name: Recom Switching Power Supply 5V dc, 2 W, 277V ac, PCB Mount, Single Output RAC02-05SC
Brand: Recom
SKU: 104032
Price: 20.22 USD
Availability: InStock



Category Switching Power Supplies Brand Recom Condition New

Specifications

Country of Origin	Taiwan
Brand	Recom
Power	2W
Efficiency	70%
Length	33.7mm
Model	RAC02-05SC
Depth	17.75mm
Gross Weight	25g
Width	22.2mm
Mount Type	PCB
Series	RAC02-C
Maximum Operating Temperature	85°C
Minimum Operating Temperature	-25°C
Number of outputs	1
Maximum Input Voltage	277V ac
Standards/Approvals	UL 609501, EN 609501, EN 550 Class B
Maximum Output Voltage	5V dc
SMPS Output Current	400mA
Minimum Input Voltage	90V ac
Ultracompact low profile	H17xW22.2xD33.7 mm

Key Features

Compact PCB mount design measuring 33.7mm x 22.2mm x 17.75mm.
High efficiency of 70% with low standby power consumption of 30mW.
Operating temperature range from -25°C to 85°C suitable for harsh environments.
Incorporates soft start and short circuit protection for enhanced reliability.
3kVAC isolation and compliance to UL 60950-1, EN 60950-1, and EN 55022 Class B standards.
Output current capability of 400mA, ideal for low power applications.
Encapsulated and regulated switch mode design for stable performance.
Suitable for powering clocks, remote control receivers, and microcontroller circuits.

Product Description

Recom RAC02-05SC Switching Power Supply is a highly reliable, regulated, encapsulated switch mode power supply designed for universal input voltage ranging from 90V to 277V ac, providing a single output of 5V dc at 2 W power. This compact module is designed for PCB mounting with dimensions of 33.7mm length, 22.2mm width, and 17.75mm height, ensuring an ultracompact low profile suitable for space-constrained applications.

With an output current of 400mA and high efficiency of 70%, it achieves low power loss and reduces energy consumption with a standby power of only 30mW. The operating temperature range of -25°C to 85°C enables the power supply to function reliably under varied industrial and commercial environmental conditions.

The RAC series includes soft start and short circuit protection features to prevent damage under abnormal conditions, along with a high 3kVAC isolation barrier ensuring user safety and noise immunity. This product meets stringent safety and EMC standards such as UL 60950-1, EN 60950-1, and EN 55022 Class B, making it suitable for use in electronic component systems, power supplies, and transformers.

Its encapsulated construction and regulated output make it ideal for powering sensitive devices such as clocks, remote control receivers, and microcontroller circuits in industrial, commercial, and laboratory applications. Manufactured in Taiwan, Province Of China, this power supply conforms to international quality standards.

Compact PCB mount design measuring 33.7mm x 22.2mm x 17.75mm. Universal input voltage from 90V to 277V ac. Regulated 5V dc output at 2 W power and 400mA current. Operating temperature range: -25°C to 85°C. Soft start and short circuit protection included.

3kVAC isolation for enhanced user safety. Meets UL 60950-1, EN 60950-1, and EN 55022 Class B standards. Low 30mW standby power consumption. Suitable for industrial, commercial, and laboratory power supply applications. Explore more high-quality power supplies and electronic components on EnvMart for your industrial and electronic assembly needs.
