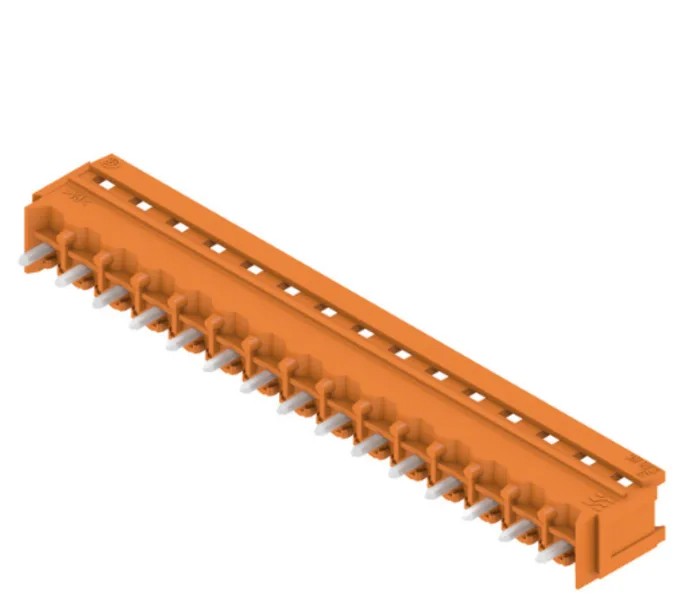

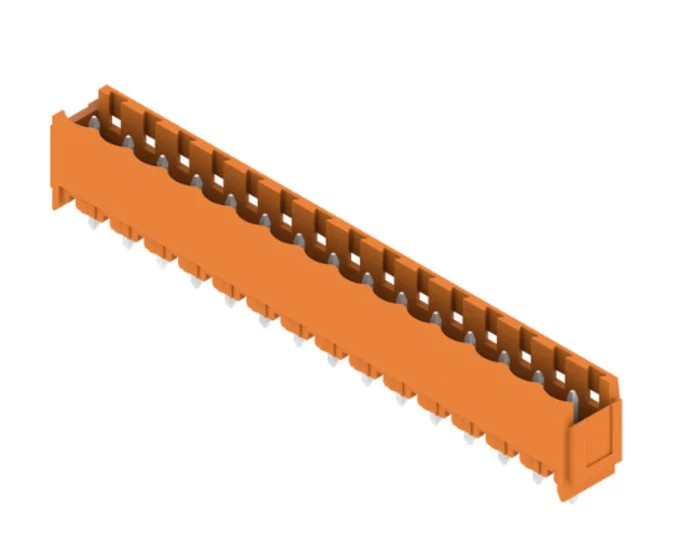

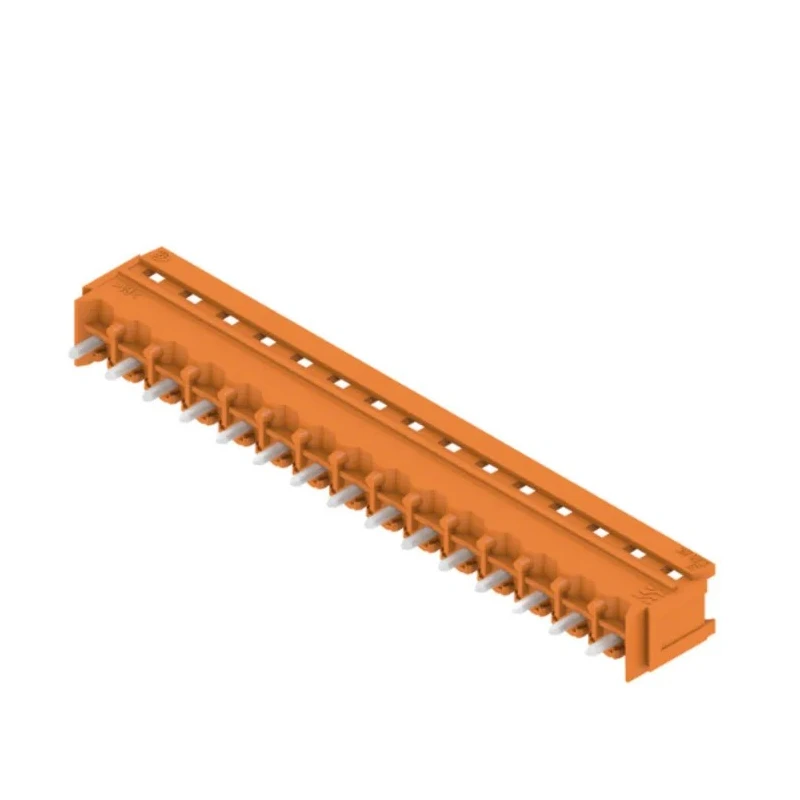

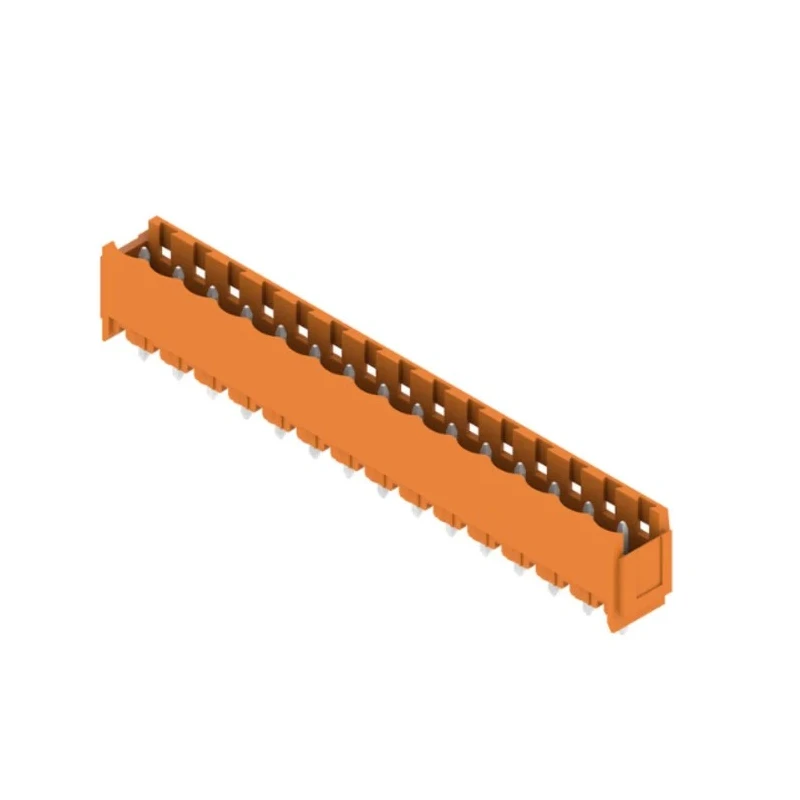

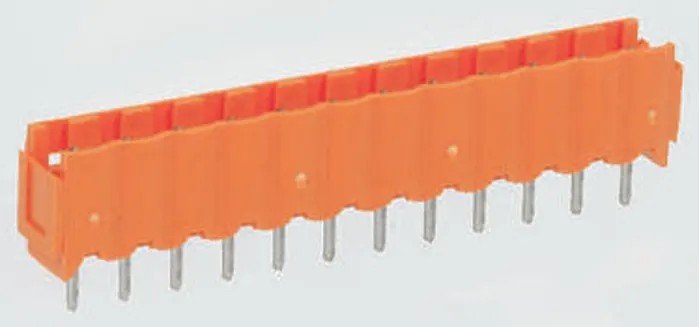

Weidmuller SL Series Pluggable Terminal Block 15 Contacts 5.08 mm Pitch 1 Row 18A 400V 1147730000
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 400V |
| Brand | Weidmuller |
| Colour | Orange |
| Orientation | Straight |
| Current | 18A |
| Length | 71.12mm |
| Depth | 8.43mm |
| Width | 77.96mm |
| Housing Material | Polyamide Fibreglass, Copper Alloy |
| Series | SL |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | UL 1059, RoHS, IEC 61984, IEC 60664-1 |
| Number of Contacts | 15 |
| Connector Gender | Male |
| Wire Connection Method | Solder |
Key Features
- Features 15 contacts arranged in a single row with 5.08 mm pitch for compatibility and efficient PCB layout.
- Rated for a current of 18A and voltage up to 400V suitable for high-power applications.
- Constructed with durable polyamide fibreglass housing and copper alloy contacts for enhanced longevity.
- Designed with straight orientation and solder wire connection method to facilitate wave soldering assembly.
- Offers manual coding options for flexible configuration in diverse electrical circuits.
- Complies with UL 1059, IEC 61984, IEC 60664-1 standards and RoHS directive for quality and safety.
- Ideal for automated machinery, control panels, and circuit board connections in industrial environments.
- Provides IP20 protection level ensuring dust ingress prevention to safeguard electrical performance.
Product Description
Weidmüller 1147730000 is a high-quality SL Series Pluggable Terminal Block featuring 15 contacts in a single row and 5.08 mm pitch. This terminal block is designed for robust industrial and electronic applications requiring durable and secure electrical connections. With an 18A current rating and 400V voltage capacity, it supports demanding power distribution needs efficiently.
Constructed from polyamide fibreglass housing combined with copper alloy contacts, this terminal block ensures long-term reliability and resistance to harsh conditions. The straight orientation and solder wire connection method make it optimized for wave soldering, enhancing manufacturability and assembly speed.
The Weidmüller SL Terminal Block offers flexible manual coding options to tailor connections as per project specifications. It meets critical industrial standards such as UL 1059, IEC 61984, IEC 60664-1, and is compliant with RoHS regulations, ensuring safety and environmental compatibility.
Applications include use in automated machinery, electronics manufacturing for PCB connections, electrical devices requiring high current support, industrial equipment, and control panels. The IP20 protection degree guards against dust ingress, maintaining operational integrity.
Features 15 contacts arranged in a single row with 5.08 mm pitch for compatibility and efficient PCB layout. Rated for a current of 18A and voltage up to 400V suitable for high-power applications. Constructed with durable polyamide fibreglass housing and copper alloy contacts for enhanced longevity.
Designed with straight orientation and solder wire connection method to facilitate wave soldering assembly. Offers manual coding options for flexible configuration in diverse electrical circuits. Complies with UL 1059, IEC 61984, IEC 60664-1 standards and RoHS directive for quality and safety.
Ideal for automated machinery, control panels, and circuit board connections in industrial environments. Provides IP20 protection level ensuring dust ingress prevention to safeguard electrical performance.
Explore the Weidmüller brand and Pluggable Terminal Block category on EnvMart for a wide selection of industrial-grade electrical connectors designed to meet diverse application demands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for a current of 18A and a voltage of up to 400V, making it suitable for high-power applications.
It features a pitch of 5.08 mm and has 15 contacts arranged in a single row.
The housing is made from polyamide fibreglass, while the contacts are constructed from copper alloy, enhancing longevity and reliability.
The dimensions of this model are 71.12 mm in length, 77.96 mm in width, and 8.43 mm in depth.
The wire connection method for this terminal block is solder, designed to facilitate wave soldering assembly.
It complies with UL 1059, IEC 61984, IEC 60664-1 standards, and is RoHS compliant, ensuring quality and safety.
This terminal block is designed with a straight orientation for efficient installation.
It is ideal for use in automated machinery, control panels, and circuit board connections in industrial environments.
This model provides an IP20 protection level, which prevents dust ingress to safeguard electrical performance.
Yes, it offers manual coding options for flexible configuration in various electrical circuits.
The country of origin for this terminal block is Germany.
The connector gender for this model is male.
