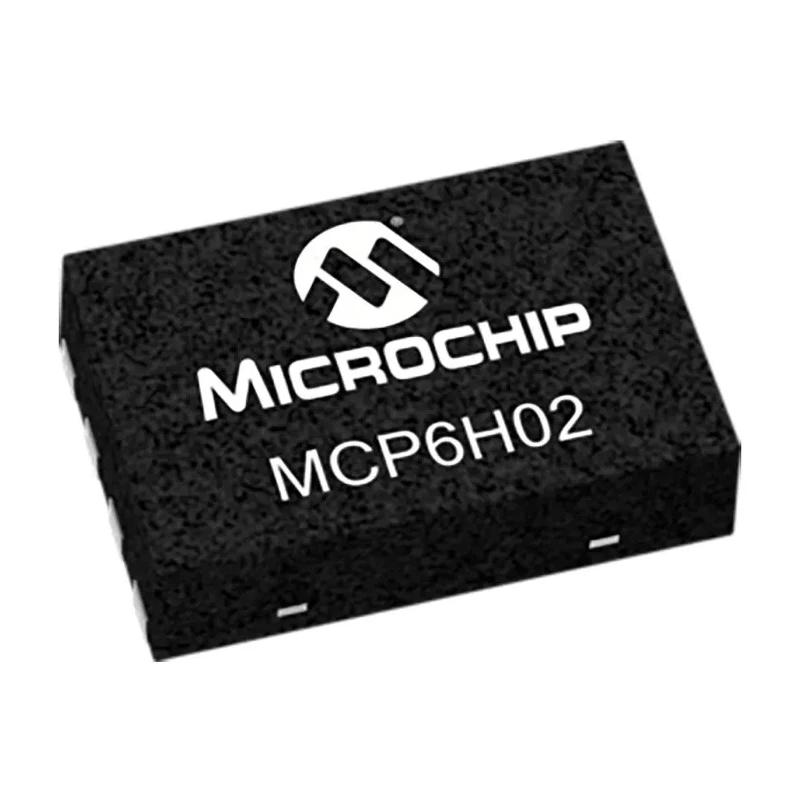

Microchip Operational Amplifier Dual Channel Surface Mount TDFN 8-Pin 16V 1.2 MHz MCP6H02T-E/MNY
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | Microchip |
| Height | 0.75mm |
| Length | 2mm |
| Model | MCP6H02T-E/MNY |
| Width | 3mm |
| Mount Type | Surface |
| Series | MCP6H02 |
| Output Current | 65mA |
| Maximum Operating Temperature | 125°C |
| Package Type | TDFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Standards/Approvals | RoHS |
| Pin Count | 8 |
| Maximum Supply Voltage | 16V |
| Minimum Supply Voltage | 3.5V |
| GBP - Gain Bandwidth Product | 1.2MHz |
| Input Bias Current | 10 pA |
| Vos - Input Offset Voltage | 3.5 mV |
| Slew Rate | 0.8V/μs |
| Input Offset Current | 1 pA |
Key Features
- Dual channel configuration offering two operational amplifiers in one package.
- Wide supply voltage range from 3.5V to 16V for versatile applications.
- Low input offset voltage of 3.5 mV ensures accurate signal amplification.
- Slew rate of 0.8 V/µs supports moderate-speed signal processing.
- Extends operating temperature range of -40°C to 125°C for industrial environments.
- Compact 8-pin TDFN package measuring 2 mm × 3 mm × 0.75 mm dimensions.
- Input bias current as low as 10 pA and input offset current of 1 pA for precision analog circuits.
- Output current capability of up to 65 mA enables driving a variety of loads.
Product Description
Microchip MCP6H02T-E/MNY is a high-performance, dual channel operational amplifier designed for surface mount applications. It features a gain bandwidth product of 1.2 MHz and is housed in a compact 8-pin TDFN package with dimensions of 2 mm length, 3 mm width, and 0.75 mm height. Operating from a supply voltage range of 3.5V to 16V, this amplifier is suitable for various industrial, commercial, and electronic signal processing applications.
The device offers low input offset voltage of 3.5 mV and extremely low input bias and offset currents (10 pA and 1 pA respectively), delivering precision amplification necessary for laboratory instrumentation, sensor signal conditioning, and data acquisition systems. Its slew rate of 0.8 V/µs enables moderate speed signal handling, ideal for control systems or audio electronics.
The MCP6H02T-E/MNY maintains reliable operation over a wide temperature range from -40°C to 125°C, making it suitable for harsh industrial and automotive environments. The device also supports output currents up to 65 mA, facilitating direct drive of loads such as actuators or analog circuitry components.
The operational amplifier is compliant with RoHS environmental standards, reflecting Microchip's commitment to eco-friendly product design. Manufactured in Thailand, the product adheres to stringent quality controls to ensure consistency and durability in application.
Dual operational amplifier channels in a single compact surface mount package. Wide voltage supply range and broad temperature tolerance for industrial use. Low offset and bias currents guarantee precision signal amplification.
Suitable for applications including sensor interfacing, instrumentation, and control systems. Compact TDFN package enables space-saving PCB layouts and surface mount assembly.
This product is ideal for engineers and designers seeking reliable and efficient analog signal amplification solutions in electronics design, industrial controls, and embedded systems development. Discover more Operational Amplifiers and semiconductor solutions within EnvMart’s comprehensive electronic components catalogue.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The MCP6H02T-E/MNY has a gain bandwidth product of 1.2 MHz, suitable for various signal processing applications.
This operational amplifier operates within a supply voltage range of 3.5V to 16V, allowing for versatile applications in different environments.
The TDFN package measures 2 mm in length, 3 mm in width, and 0.75 mm in height, making it compact for surface mount applications.
The MCP6H02T-E/MNY can provide an output current of up to 65 mA, enabling it to drive a variety of loads effectively.
It features a low input offset voltage of 3.5 mV, which is beneficial for accurate signal amplification.
This operational amplifier operates reliably over a temperature range of -40°C to 125°C, suitable for industrial applications.
The slew rate of the MCP6H02T-E/MNY is 0.8 V/µs, supporting moderate-speed signal processing.
This unit has an input bias current as low as 10 pA, which is important for precision analog circuits.
It supports surface mounting, making it suitable for compact PCB layouts and assembly.
The MCP6H02T-E/MNY is compliant with RoHS environmental standards, reflecting its eco-friendly design.
This model features a dual channel configuration, offering two operational amplifiers in one package.
The MCP6H02T-E/MNY is manufactured in Thailand, adhering to stringent quality controls.
