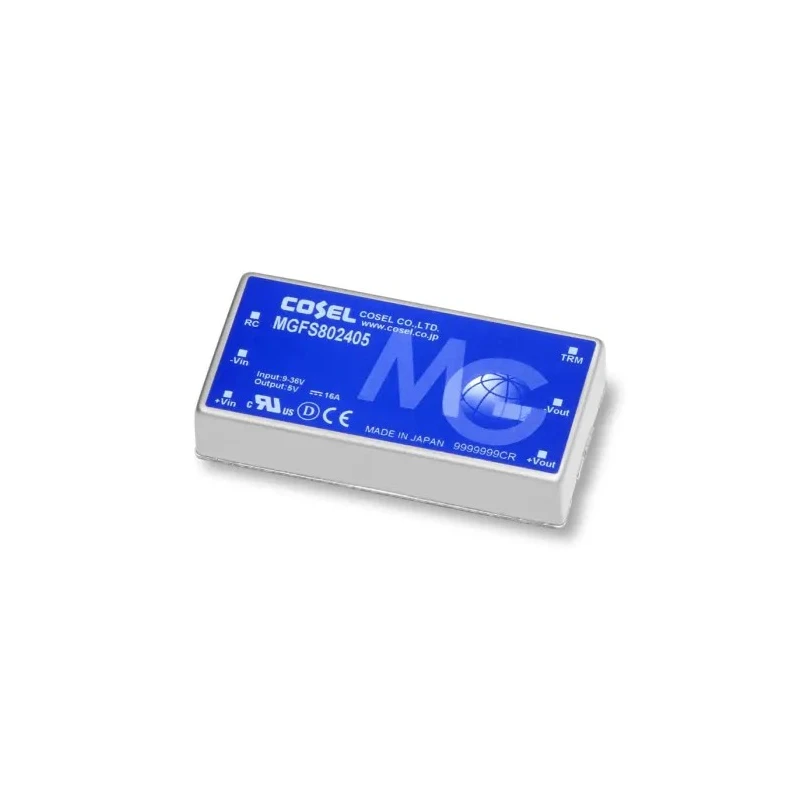

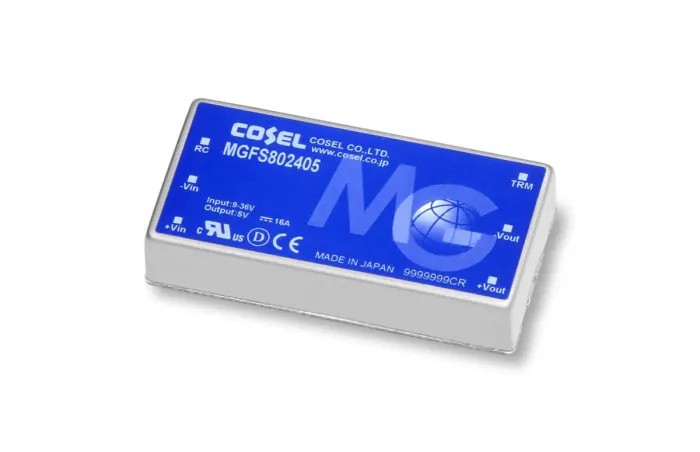

Cosel DC/DC Converter PCB Mount, 5V DC Output, 16A, 36V DC Maximum Input, 9V Minimum Input, 80W Power, 6-Pin DIP MGFS802405

The Cosel MGFS802405 DC/DC Converter is a high-efficiency power module designed for a variety of electronic applications requiring stable and reliable DC voltage conversion. This PCB-mounted converter operates with an input voltage range of 9 to 36 volts DC and provides a fixed 5-volt DC output with a current capability of up to 16 amperes and power output of 80 watts. Its compact 6-pin DIP package enables easy integration into circuit boards where space is constrained.

Featuring an input ratio of 4:1 and an isolation voltage of 1.5kV DC, the unit ensures electrical isolation between input and output circuits, ideal for industrial and commercial power systems. The device offers an output voltage adjustment range of ±10%, allowing minor tuning for specific use cases. With an efficiency level reaching 93%, it minimizes power loss and heat generation during operation.

The converter supports a broad temperature range from -40°C to 85°C, suitable for demanding environments in industrial electronics, telecommunications, and embedded systems. Remote ON/OFF control enhances power management flexibility, while overcurrent protection provides safety under overload conditions.

Physically, it measures 25.4 mm in length, 50.8 mm in width, and 9.9 mm in depth, making it suitable for compact power supply designs. This converter is manufactured in Japan, reflecting stringent quality control standards and reliability.

Compact PCB mount design with a 6-pin DIP package. Wide input voltage capability from 9V to 36V DC. Stable 5V DC output at 16A current and 80W maximum power. High efficiency of 93% conserves energy. Suitable for harsh environments, operating reliably from -40°C to +85°C.

1.5kV DC electrical isolation for safety and noise reduction. Remote ON/OFF function allows external control of power state. Integrated overcurrent protection ensures durability and safety. Compact dimensions allow for flexible PCB integration.

Produced in Japan with high quality manufacturing standards.

This DC/DC Converter is ideal for industrial automation, telecommunications, embedded electronics, and any application demanding reliable low-voltage DC power conversion with compact form factor. Explore the Electronics & Electricals category on EnvMart for more precision power supplies and converters.
