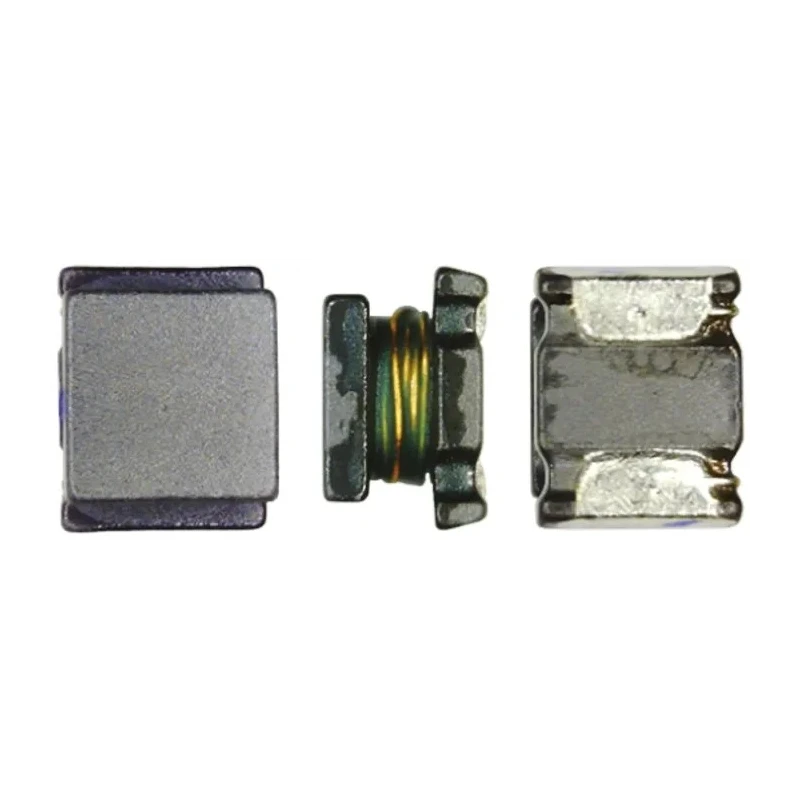

Murata 1210 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 470 μH ±10% 60 mA DC LQH32CN471K23L

Murata LQH32CN471K23L is a high-quality 1210 unshielded wirewound surface mount inductor featuring a ferrite core. It offers 470 μH inductance with a tolerance of ±10%, making it ideal for applications requiring precise inductance such as power supply filtering and signal conditioning.

This wirewound inductor supports a maximum DC current of 60 mA while maintaining a low DC resistance of 24.7 Ω, which minimizes voltage drop and power loss. The compact package size of 1210 and embossed tape packaging facilitate automated surface mounting on printed circuit boards.

The inductor’s dimensions are 3.2 mm length, 2 mm height, and 2.5 mm depth, allowing dense PCB layouts without compromising performance. Its ferrite core enhances magnetic characteristics and temperature stability over a broad range from -40°C to 85°C, ensuring operational reliability in industrial, commercial, and consumer electronic devices.

With a maximum self resonant frequency of 5 MHz, this component excels in noise suppression and energy storage roles in switch mode power supplies and similar circuits. The solder termination style enables robust electrical and mechanical connections during reflow soldering processes.

The Murata LQH32CN471K23L complies with RoHS environmental standards, reflecting a commitment to eco-friendly manufacturing. Its moulded wirewound construction offers durability against mechanical stress and environmental exposure.

Maximum DC current of 60 mA ensures efficient power delivery. Compact 1210 package suitable for high-density PCB assembly. Ferrite core minimizes losses and enhances inductance stability. Wide operating temperature range suitable for harsh environments.

Low DC resistance supports low voltage drop in circuits. High self resonant frequency improves filtering capabilities. Solder termination style for reliable surface mount usage. Compliance with environmental safety standards RoHS.

This wirewound Surface Mount Inductor is commonly used in industrial electronics, power management modules, telecommunications equipment, and automotive electronics where space constraints and performance are critical.
