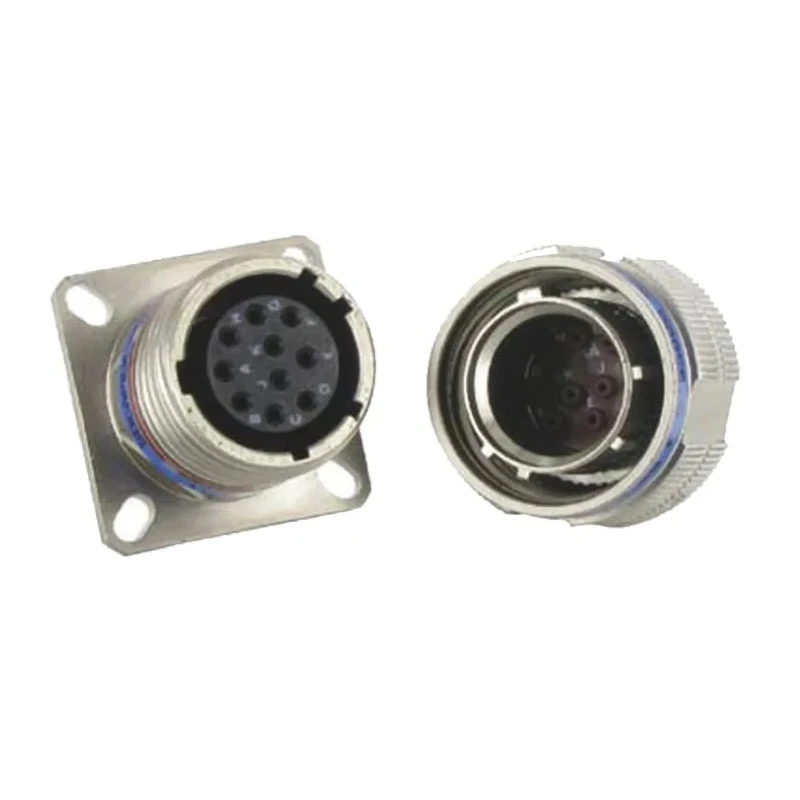

Amphenol Socapex MIL Spec Circular Connector Straight 13 Way Wall Mount Female Connector with Male Contacts TVP00RW1135PA
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 550V dc |
| Brand | Amphenol Socapex |
| Orientation | Straight |
| Model | TVP00RW1135PA |
| Mount Type | Wall Mount |
| Termination Type | Crimp |
| Maximum Operating Temperature | 175°C |
| Minimum Operating Temperature | -65°C |
| Contact Plating | Gold |
| Number of Contacts | 13 |
| Contact Gender | Male |
| Connector Gender | Female |
| Shell Size | 11 |
| Military Standard | MIL-DTL-38999 |
| Mating Type | Screw Coupling |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Designed for MIL-DTL-38999 military standard applications.
- Shell size 11 with an olive drab cadmium plated aluminum shell.
- Screw coupling mating type ensures secure connections.
- Temperature range from -65°C to 175°C for extreme environments.
- Connector orientation is straight with gold plated contacts.
- Termination type is crimp for efficient assembly.
- TV series square flange receptacles with coding A for precise polarization.
- Compatible and intermountable with MIL-DTL-38999 series I standard panel drilling.
Product Description
Amphenol Socapex TVP00RW1135PA MIL Spec Circular Connector is a ruggedized 13 way connector designed for demanding military and industrial applications. Featuring a straight orientation and wall mount type, this connector offers both female connector gender and male contact gender, ensuring secure and reliable electrical connections.
Built to the MIL-DTL-38999 standard, it features an aluminum shell with olive drab cadmium plating that provides robust environmental protection and corrosion resistance. The shell size 11 classification denotes its physical dimensions suitable for various equipment housings.
The connector supports a nominal voltage of 550V dc and operates reliably in harsh temperature conditions ranging from -65°C minimum to 175°C maximum. It employs a screw coupling mating type for strong mechanical retention during use. Termination is via crimp contacts, facilitating efficient and durable wiring assembly.
Contacts are plated with gold to optimize electrical conductivity and reduce contact resistance in critical signal or power circuits. The TV series square flange receptacles utilize polarization coding A to ensure correct and foolproof mating alignment. These connectors are intermountable with MIL-DTL-38999 series I connectors with the same panel drill pattern, enhancing compatibility in existing systems.
Designed for military and industrial environments requiring durable circular connectors. Aluminum shell with olive drab cadmium plating for corrosion resistance. Gold plated contacts provide excellent conductivity and reliability.
Wide temperature range operation from -65°C to 175°C. Screw coupling ensures secure attachment and vibration resistance. Crimp termination simplifies installation and ensures strong contact retention. Intermountable with MIL-DTL-38999 series I connectors for compatibility.
This MIL Spec circular connector is ideal for aerospace, defense, industrial machinery, and other critical applications requiring reliable high-performance electrical connections. Amphenol Socapex's design expertise ensures ruggedness and long-term operational stability.
Explore more MIL Spec connectors and related electronic components on EnvMart for your application needs.
Explore more products in our Mil Spec Circular Connectors category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum voltage rating for this model is 550V dc.
It operates reliably in a temperature range from -65°C to 175°C.
This connector employs crimp termination for efficient assembly.
This model features 13 contacts.
The orientation of this connector is straight.
It is designed for wall mount applications.
The shell size for this model is classified as size 11.
The contacts are plated with gold to optimize electrical conductivity.
This connector is built to the MIL-DTL-38999 military standard.
It utilizes a screw coupling mating type for secure connections.
The country of origin for this connector is India.
