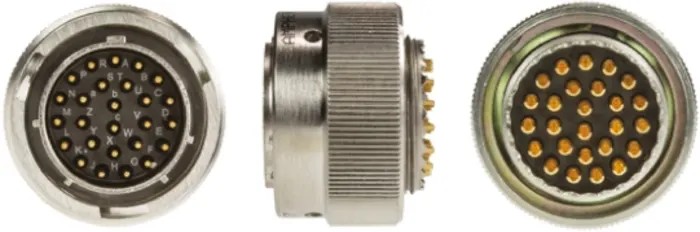

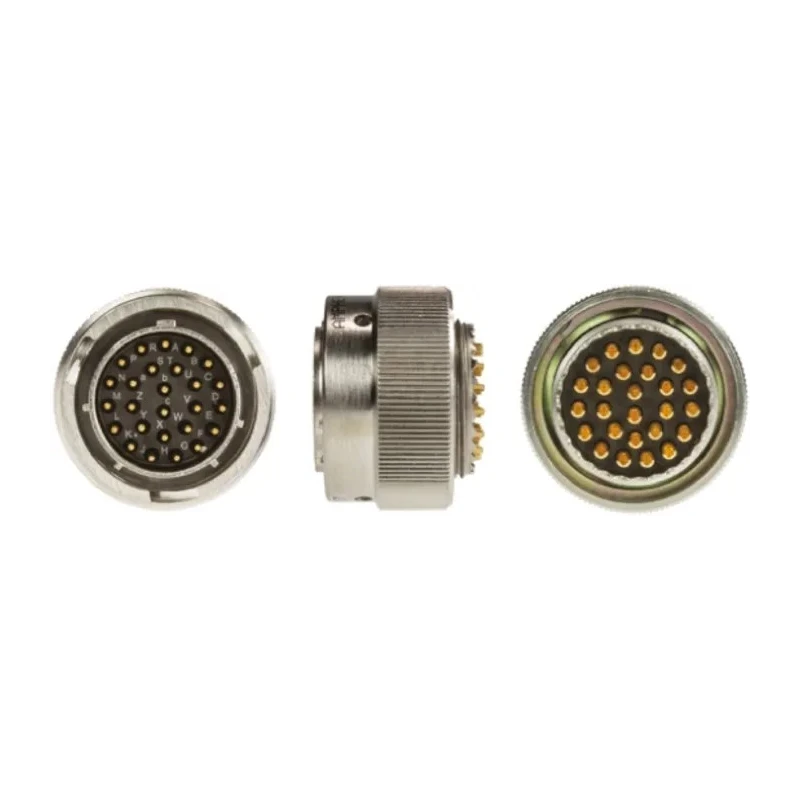

Amphenol Limited MIL Spec Circular Connector 26 Contacts Nickel Iron Alloy Straight 16 Shell Size 500 62GB-56T16-26PN(416)

Amphenol Limited 62GB-56T16-26PN(416) MIL Spec Circular Connector offers a high-grade solution for industrial, military, and aerospace connector needs. This model features 26 male contacts housed in a straight cable mount connector with a miniature size 16 shell, enabling secure bayonet mating for easy installation. The connector supports AC voltages of 500 and 700 volts, adhering to MIL-DTL-26482 standards.

The housing material is steel with an electroless nickel plating that provides excellent resistance to corrosion and mechanical wear. Contacts are fabricated from a nickel iron alloy and plated with tin over copper to ensure reliable electrical conductivity and durability in extreme operating conditions.

Designed for continuous operation in temperatures ranging from -55°C to 125°C, this connector withstands harsh environmental factors, making it ideal for demanding military and industrial applications. The solder termination facilitates secure cable connections, supporting reliable performance in critical situations.

The 62GB series distinguishes itself with its robust construction from solid aluminum bar with a nickel finish and bayonet locking mechanism, designed to prevent mis-mating. This model maintains standard signal pin and power pin type planforms compliant with respective military specifications.

The connector features a miniature 16-size shell with a straight cable mount type. It supports operating voltages of 500 and 700V AC with a bayonet mating type for secure connections. Constructed with a robust steel housing plated with nickel for excellent durability and corrosion resistance.

Contact material consists of nickel iron alloy with tin over copper plating, ensuring reliable conductivity. This MIL-DTL-26482 compliant connector operates effectively from -55°C to 125°C, making it suited for harsh environments.

Termination type is solder for stable cable connections. The connector’s straight orientation ensures mechanical stability in applications. Manufactured in India to high-quality standards for military-grade connectors.

This Amphenol 62GB connector is ideally suited for aerospace, military, and industrial use cases requiring durable and reliable circular connectors. Its rugged design supports extreme temperature ranges and mechanical stresses, ensuring long-term performance. Explore more connectors and components in the Mil Spec Circular Connector category on EnvMart.
