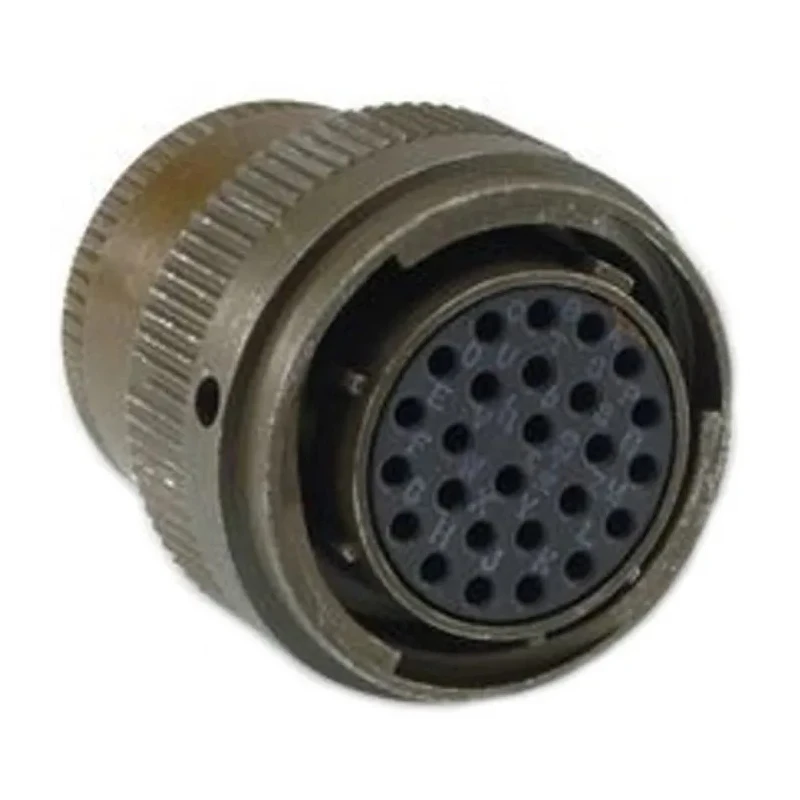

ITT Cannon Copper Alloy Straight 32 Way Cable MIL Spec Circular Connector Male, Female Contacts, Shell Size 18 KPT06F18-32S
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 850V dc |
| Brand | ITT Cannon |
| Orientation | Straight |
| Current | 7.5A |
| Model | KPT06F18-32S |
| Mount Type | Cable |
| Contact Material | Copper Alloy |
| Series | KPT |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Female |
| Connector Gender | Male |
| Shell Size | 18 |
| Mating Type | Bayonet |
| Shell Plating | Olive Drab Cadmium |
Key Features
- Connector supports 32 female contacts with 7.5A current rating.
- Operates at maximum voltage of 850 V DC with shell size 18.
- Designed for cable mounting with solder termination and strain relief.
- Durable olive drab cadmium plating provides effective shielding and corrosion resistance.
- Operates reliably between -55°C and 125°C for demanding industrial environments.
- Features bayonet mating type for quick coupling with MIL-C-26482 standard compatibility.
- Straight orientation with cable clamp back shell enhances durability and sealing.
- High-quality copper alloy contact material with gold plating ensures excellent conductivity and corrosion resistance.
Product Description
ITT Cannon KPT06F18-32S Copper Alloy Straight 32 Way Cable MIL Spec Circular Connector is a rugged and reliable industrial-grade connector designed for demanding electrical and electronic applications. This MIL-C-26482 series cable mount plug features 32 female contacts with gold plating over copper alloy for superior signal transmission and corrosion resistance.
Operating at 7.5 amperes current with an 850 V DC voltage rating, this connector ensures reliable performance in harsh environments. Its shell size 18 and olive drab cadmium plating provide exceptional mechanical durability and electromagnetic shielding. The bayonet mating coupling allows for fast and secure connections, while the cable clamp backshell offers robust strain relief and sealing to prevent damage from cable flexing.
Suitable for industrial, military, aerospace, and transportation applications, this connector withstands operating temperatures from -55°C up to 125°C, making it ideal for extreme climate conditions. The straight orientation enhances ease of installation in cable assemblies. The solder termination method ensures a strong and lasting connection between contacts and cables.
Featuring positive three-point bayonet coupling and compliance with MIL specifications, this connector mates effortlessly with similar MIL-C-26482 connectors with normal orientation inserts. It is engineered for high reliability and longevity in critical industrial use cases.
Connector supports 32 female gold-plated contacts rated at 7.5A. Operates at 850 V DC with shell size 18 and olive drab cadmium shell plating. Bayonet mating type offers fast and secure connections in industrial environments.
Solder termination and cable clamp backshell provide strain relief and sealing. Operating temperature range from -55°C to 125°C for harsh condition tolerance. Complies with MIL-C-26482 and suitable for military and industrial applications.
Copper alloy contacts with gold plating ensure excellent conductivity and corrosion resistance.
This ITT Cannon KPT06F18-32S MIL Spec Circular Connector is catalogued under Mil Spec Circular Connectors for electronics components in industrial, power distribution, aerospace, and defense sectors. Explore the EnvMart catalog for compatible connectors, accessories, and cable assemblies from ITT Cannon and other reputable brands.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector operates at a maximum voltage of 850 V DC.
This model supports 32 female contacts.
It has a current rating of 7.5A.
The connector operates reliably between -55°C and 125°C.
The termination type is solder, ensuring a strong connection between contacts and cables.
The shell size of this connector is 18.
It features a bayonet mating type for quick and secure connections.
The contacts are made of copper alloy with gold plating for excellent conductivity.
The shell is plated with olive drab cadmium, providing effective shielding and corrosion resistance.
It is suitable for industrial, military, aerospace, and transportation applications.
The country of origin for this connector is India.
The connector has a straight orientation, enhancing ease of installation in cable assemblies.
