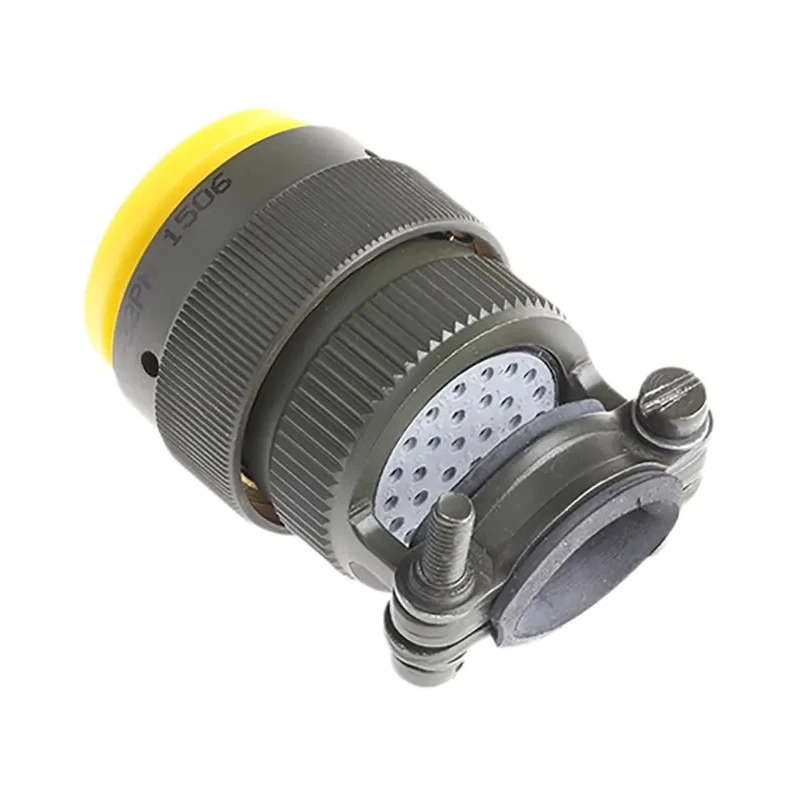

Amphenol Limited MIL Spec Circular Connector Brass Straight 32 Way Cable Male Contacts Shell Size 18 62GB-16F18-32PN
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 500, 700V ac |
| Brand | Amphenol Limited |
| Colour | Olive |
| Orientation | Straight |
| Current | 7.5A |
| Model | 62GB-16F18-32PN |
| Mount Type | Cable |
| Housing Material | Aluminium |
| Contact Material | Brass |
| Series | 62GB |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Pay online using | Or choose to pay later via bank transfer |
| RS Stock No. | 442-2066Brand: Amphenol LimitedManufacturers Part No.: 62GB-16F18-32PN |
| Contact Plating | Gold |
| Number of Contacts | 32 |
| Contact Gender | Male |
| Connector Gender | Male |
| Shell Size | 18 |
| Military Standard | MIL-DTL-26482 |
| Mating Type | Bayonet |
| Connector Size | Standard |
| Shell Plating | Zinc Cobalt |
Key Features
- Constructed with aluminium housing and zinc cobalt plating for high corrosion resistance.
- Features a bayonet lock mating system for secure and reliable connections.
- Supports operating temperatures from -55°C to 125°C suitable for harsh environments.
- Provides 32 male contacts rated for 7.5A current and 500 to 700V AC voltage.
- Gold plated brass contacts ensure excellent conductivity and durability.
- Strain relief and solder termination type for robust cable mounting.
- Olive drab colour with polychloroprene rubber inserts and seals for environmental protection.
- Compatible with MIL-C-26482 and similar military standard connectors.
Product Description
Amphenol Limited 62GB-16F18-32PN MIL Spec Circular Connector is a high-quality miniature bayonet lock plug connector designed for military and industrial applications requiring secure multi-pin connections. This straight cable connector features a robust aluminium housing with zinc cobalt olive drab plating that provides excellent corrosion resistance and durability under demanding conditions.
The connector meets the MIL-DTL-26482 military standard, offering reliable performance in harsh environmental and temperature extremes from -55°C to 125°C. It has 32 male contacts, each rated for 7.5 amperes current and capable of handling voltages from 500 to 700 volts AC, making it suitable for power and signal applications.
Gold plated brass contacts enhance electrical conductivity and resistance to wear over 500 mating cycles. The bayonet lock mechanism ensures a secure connection and helps prevent mismating, while polychloroprene rubber inserts and seals offer a high degree of environmental sealing when mated. The connector includes a grommet nut with integral strain relief clamp for durable cable termination with solder termination type.
This series is widely used in military communications, industrial control equipment, and other areas demanding rugged, high-performance circular connectors. Amphenol’s 62GB series provides versatility with compatibility to other MIL-C-26482 connectors and similar standards.
Constructed from aluminium housing with zinc cobalt plating for excellent corrosion resistance. Features gold plated brass contacts designed for durability and reliable conductivity. Bayonet lock mating type prevents accidental disconnection and mismating.
Operating temperature range from -55°C to +125°C for harsh environment performance. Polychloroprene rubber inserts and seals ensure environmental protection when mated. Suitable for rugged military and industrial applications demanding reliability and durability.
Complies with MIL-DTL-26482 military connector standards. Includes strain relief clamp integrated grommet nut for durable cable assembly.
This Amphenol Limited MIL Spec Circular Connector is an ideal choice for industrial, military, aerospace, and telecom applications where robust connectivity and environmental resistance are critical.
Explore moreMil Spec Circular Connectors and related high-reliability connectors on EnvMart for expert solutions tailored to demanding industrial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this connector is 125°C.
This model features 32 male contacts.
It is rated for voltages of 500 to 700V AC.
The housing is made of aluminium with zinc cobalt plating, and the contacts are gold plated brass.
It uses a solder termination type for robust cable mounting.
Each contact is rated for 7.5A current.
This model features a bayonet lock mating system for secure connections.
It complies with the MIL-DTL-26482 military standard.
The connector has an olive drab colour.
The minimum operating temperature is -55°C.
It is suitable for military communications, industrial control equipment, and other rugged applications.
It features polychloroprene rubber inserts and seals for environmental protection when mated.
