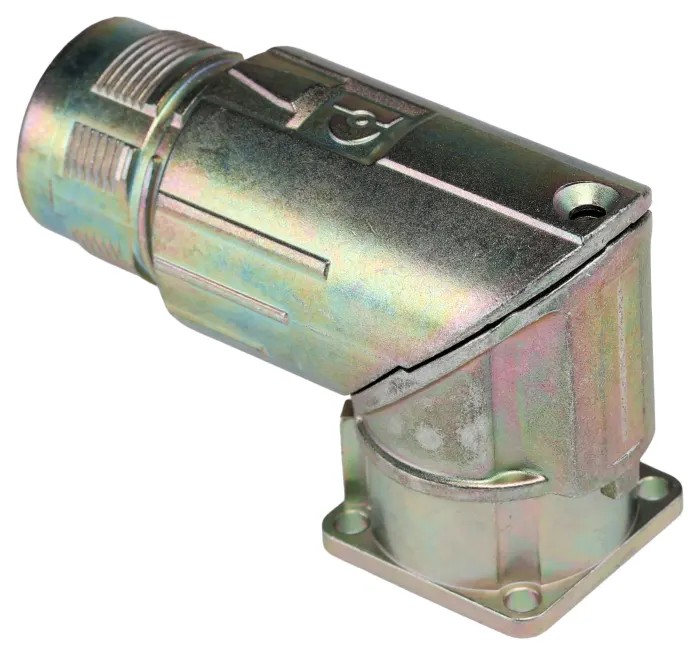

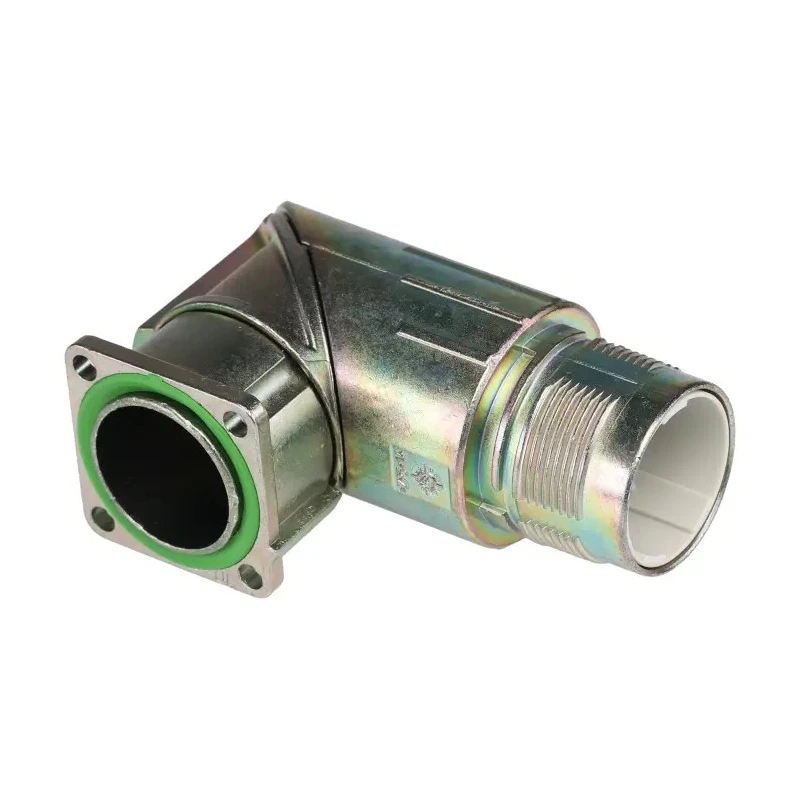

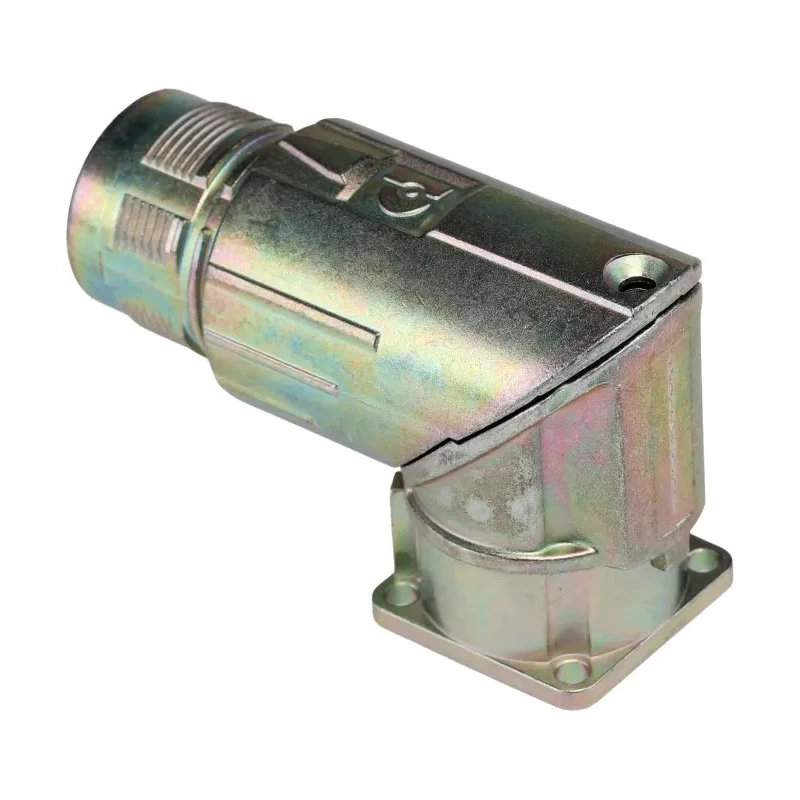

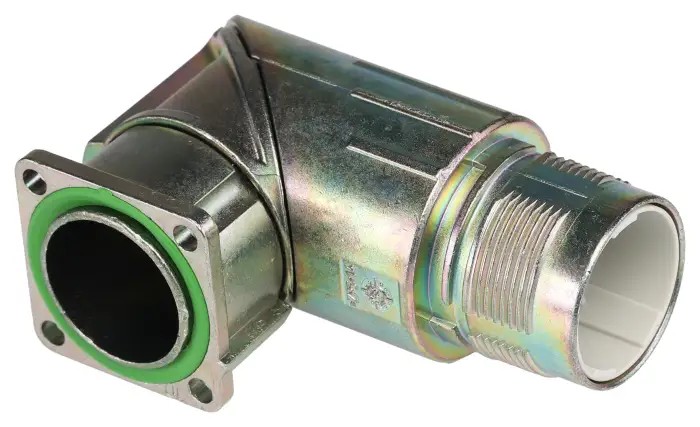

Phoenix Contact Circular Connector, 8 Contacts, Front Mount, M23 PRO Series, Plug Male, 30A Current, 630V, Crimp 1628486
Specifications
| Country of Origin | Germany |
|---|---|
| Voltage | 630.0V |
| Brand | Phoenix Contact |
| Orientation | Right Angle |
| Current | 30A |
| Model | 1628486 |
| IP Rating | IP66, IP68, IP69K |
| Mount Type | Front |
| Housing Material | Zinc |
| Series | M23 PRO |
| Termination Type | Crimp |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Pole Format | 4+3+PE |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Mating Type | Lock |
| Connector Size | M23 |
| Plug/Socket | Plug |
| Coding | N |
Key Features
- This M23 circular connector supports 30A current and 630V voltage.
- It features a plug male contact with crimp termination for reliable connection.
- The rugged zinc housing ensures durability in harsh environments.
- Offers protection against dust and water ingress with IP66, IP68, and IP69K ratings.
- Operates effectively between -40°C and +105°C temperature range.
- Configured with 8 contacts arranged as 4 power, 3 signal, and 1 protective earth.
- Designed for front mounting with right angle orientation and locking mating type.
Product Description
Phoenix Contact 1628486 circular connector is an 8-contact, front mount circular connector from the M23 PRO Series, engineered to support demanding industrial and automation applications. It provides robust electrical connectivity with a maximum current rating of 30A and voltage tolerance up to 630V. The connector utilizes a crimp termination method ensuring secure and reliable cable terminations suitable for harsh conditions.
The housing is made of durable zinc material offering mechanical strength and resistance against environmental stress. This product boasts IP66, IP68, and IP69K ingress protection ratings, which guarantee excellent resistance to dust, water jets, temporary immersion, and high-temperature washdowns, making it ideal for use in industrial electronics, mechanical environments, and power distribution systems.
Configured with 8 contacts in a 4+3+PE pole format (power, signal, and protective earth), this male plug connector supports versatile electrical wiring requirements. Its front mount, right angle orientation, and locking mating type provide ease of integration and secure mating in panel applications. The connector's operational temperature range spans from -40°C to +105°C, ensuring dependable performance across a wide range of environmental conditions.
This connector is commonly used in automation systems, electrical installations requiring high current, mechanical environments demanding weatherproof solutions, and industrial electronics needing robust connectivity.
This M23 Circular Connector supports 30A current and 630V voltage. It features a plug male contact with crimp termination for reliable connection. The rugged zinc housing ensures durability in harsh environments. Offers protection against dust and water ingress with IP66, IP68, and IP69K ratings.
Operates effectively between -40°C and +105°C temperature range. Configured with 8 contacts arranged as 4 power, 3 signal, and 1 protective earth. Designed for front mounting with right angle orientation and locking mating type.
Discover more high-quality industrial connectors from Phoenix Contact and explore EnvMart’s complete electronics component offerings for your automation and power distribution needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 30A and a voltage of 630V.
It has IP66, IP68, and IP69K ratings, providing excellent resistance to dust and water ingress.
The connector operates effectively within a temperature range of -40°C to +105°C.
It is configured with 8 contacts arranged in a 4 power, 3 signal, and 1 protective earth format.
This model utilizes crimp termination for secure and reliable cable connections.
The housing is constructed from durable zinc material, providing mechanical strength and resistance to environmental stress.
It is designed for front mounting with a right angle orientation and features a locking mating type.
This connector belongs to the M23 PRO Series.
The country of origin for this connector is Germany.
It is commonly used in automation systems, electrical installations requiring high current, and mechanical environments demanding weatherproof solutions.
The connector size is M23.
This model is a male plug connector.
