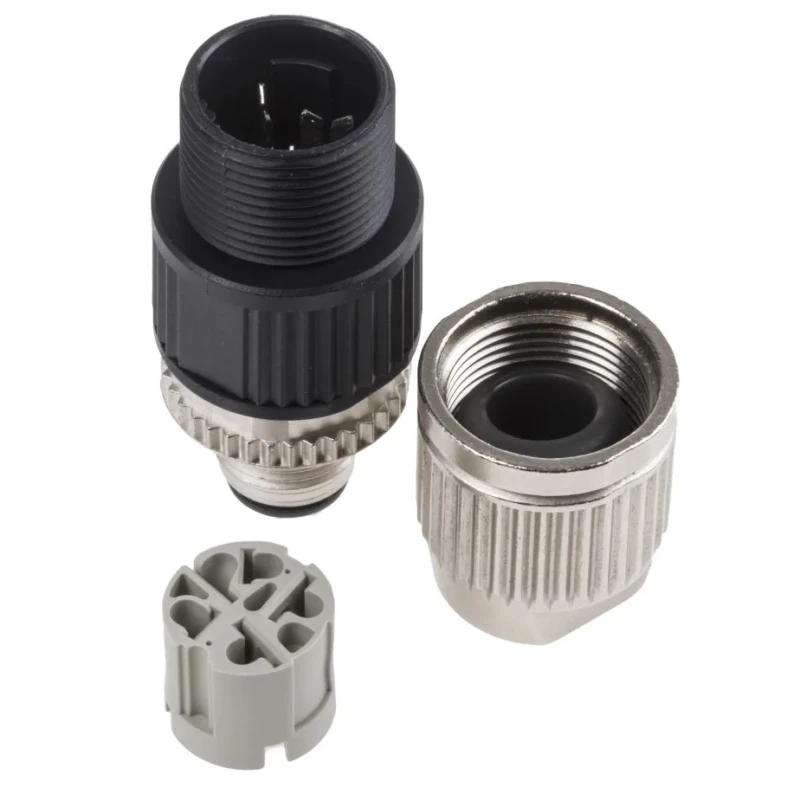

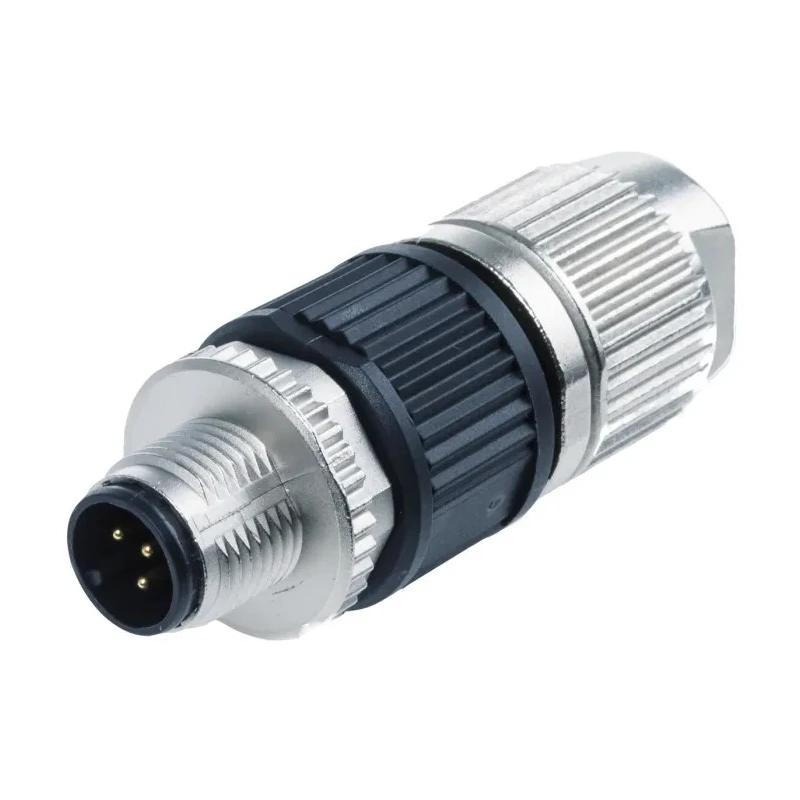

HARTING Circular Connector, 5 Contacts, Cable Mount, M12 Connector, Plug, Male, IP65 IP67, Harax M12 Series 21032721505
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50.0V |
| Brand | HARTING |
| Orientation | Straight |
| Current | 4A |
| IP Rating | IP65, IP67 |
| Mount Type | Cable |
| Housing Material | Die Cast Zinc, Polyamide |
| Contact Material | Brass |
| Series | Harax M12 |
| Termination Type | IDC |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -5°C |
| Conductor Diameter | 3 & 4 pole 1.6 → 2.0 mm (22 - 18 AWG), 5 pole 1.2 → 2.0 mm (24 - 20 AWG) |
| Pole Format | 5 |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 5 |
| Contact Gender | Male |
| Shell Size | 20.5 mm |
| Connector Size | M12 |
| Plug/Socket | Plug |
| Coding | A |
| Cable diameters | 3 pole 5.5 → 7.2 mm, 4 pole 6 → 8 mm, 5 pole 6 → 8 mm |
Key Features
- Designed for cable mounting with a straight orientation.
- Provides 5 contact points with a current rating of 4A.
- M12 size connector featuring gold over nickel plated brass contacts for durability.
- Rated for voltages up to 50 V and housing made from die cast zinc and polyamide.
- Harax M12 series with quick connection technology enabling tool-less assembly.
- Offers IP65 and IP67 protection for water and dust resistance.
- Operating temperature range from -5°C to 50°C.
- Termination via IDC type ensuring secure conductor connections.
Product Description
HARTING 21032721505 circular connector is a high-quality industrial cable mount connector from the Harax M12 series. This connector features 5 contacts arranged in a straight, male plug format and supports currents of up to 4A and voltages up to 50 V. Its robust construction with die cast zinc and polyamide housing provides excellent mechanical strength.
Equipped with gold over nickel plated brass contacts, this M12 connector ensures reliable electrical conductivity and corrosion resistance. Designed for quick and easy in situ assembly without special tools, the Harax quick connection technology simplifies installation and maintenance.
The connector is rated IP65 and IP67, making it highly resistant to dust ingress and water immersion. It operates efficiently within a temperature range of -5°C to 50°C, suitable for various industrial environments.
The termination is IDC type, supporting cable diameters for 5 pole configurations between 6 and 8 mm, with conductor diameters from 1.2 to 2.0 mm (24 to 20 AWG). Practical use cases include electronic, manufacturing, automation, and machinery applications where reliable and durable circular connectors are essential.
Designed for cable mounting with a straight orientation. Provides 5 contact points with a current rating of 4A. M12 size connector featuring gold over nickel plated brass contacts for durability. Rated for voltages up to 50 V and housing made from die cast zinc and polyamide.
Harax M12 series with quick connection technology enabling tool-less assembly. Offers IP65 and IP67 protection for water and dust resistance. Operating temperature range from -5°C to 50°C. Termination via IDC type ensuring secure conductor connections.
Cable diameter range for 5 pole contacts between 6 and 8 mm. Suitable for industrial applications requiring vibration resistant and gas-tight connections. Explore more Industrial Circular Connectors and cable mounting solutions at EnvMart for your electronic and electrical assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector has a current rating of 4A.
It is rated for voltages up to 50 V.
This model uses IDC (Insulation Displacement Connector) termination type.
The housing is made from die cast zinc and polyamide, while the contacts are made of brass with gold over nickel plating.
This connector is rated IP65 and IP67 for water and dust resistance.
It operates efficiently within a temperature range of -5°C to 50°C.
This is an M12 size connector with a shell size of 20.5 mm.
It features 5 contacts in a male plug format.
The cable diameters for 5 pole contacts range from 6 to 8 mm, with conductor diameters from 1.2 to 2.0 mm (24 to 20 AWG).
It is suitable for electronic, manufacturing, automation, and machinery applications requiring reliable circular connectors.
Yes, it features quick connection technology that enables tool-less assembly.
The country of origin for this connector is India.
