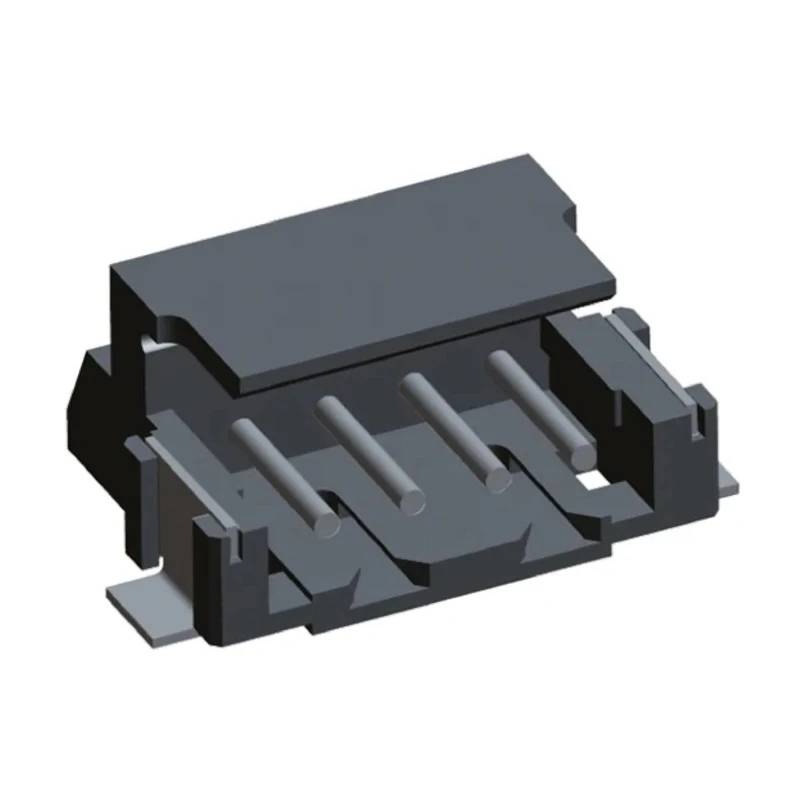

TE Connectivity AMP CT Series Right Angle Surface PCB Header, 4 Contact, 2 mm Pitch, 1 Row, Shrouded 292173-4
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 2A |
| Model | 292173-4 |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | AMP CT |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -30°C |
| Number of Rows | 1 |
| Pitch | 2mm |
| Contact Plating | Tin |
| Number of Contacts | 4 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
Key Features
- Fully shrouded housing protects contacts from damage during mating and unmating.
- Polarization and mating retention features provide secure connection.
- Solder tabs ensure a reliable attachment to the PCB.
- Constructed with a nylon housing and brass contacts plated with tin.
- Suitable for business equipment, industrial machines, PCs, printers, and audio and air conditioning systems.
- Designed for operation between -30°C and 105°C.
- Supports up to 2A current and a voltage rating of 125V.
- Single row, right angle orientation for surface mounting.
Product Description
TE Connectivity 292173-4 AMP CT Series Right Angle Surface PCB Header is a compact electronic component designed for reliable wire-to-board connections with 4 contacts arranged in a single row at a 2 mm pitch. This fully shrouded header incorporates a nylon housing to protect the contacts from physical damage and ensure durability during multiple mating cycles.
The right angle orientation of this surface mount header allows for efficient PCB space utilization and easy routing in electronic assemblies. Brass contact materials with tin plating provide excellent conductivity and corrosion resistance, supporting a current rating of 2A and voltage rating up to 125V.
Designed to operate reliably in a temperature range from -30°C to 105°C, the 292173-4 header is suitable for diverse industrial and commercial applications, including business equipment, industrial machinery, PCs, printers, consumer electronics like C-TV and audio equipment, as well as air conditioning systems. The solder tabs on either side of the housing help secure the header firmly to the PCB, improving mechanical stability and connection integrity.
The AMP CT 2 mm miniature interconnection system offers polarization and mating retention features to ensure accurate and secure connections, reducing assembly errors and improving system robustness. This product forms part of TE Connectivity’s trusted connector family known for consistent performance and quality.
Fully shrouded housing for enhanced contact protection. Right angle surface mount design optimizes PCB layout. Solder tabs ensure secure PCB attachment. Polarization and mating retention for reliable connections. Constructed with nylon housing and brass contacts plated with tin.
These headers are widely used in industrial, commercial, and consumer electronic applications requiring compact, robust, and reliable interconnect solutions. Explore additional TE Connectivity PCB Headers and related components at EnvMart for your electronic assembly needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this model is 125V.
It supports a current capacity of up to 2A.
The pitch size is 2 mm.
The housing is made of nylon, while the contacts are constructed from brass and plated with tin.
It is designed to operate within a temperature range of -30°C to 105°C.
This header has 4 contacts arranged in a single row.
The termination type is solder.
It features a right angle orientation for surface mounting.
Yes, it is suitable for various industrial applications, including business equipment and industrial machinery.
The specific dimensions are not provided, but it is designed for a compact layout with a 2 mm pitch.
Yes, it includes polarization and mating retention features to ensure secure connections.
The country of origin for this product is India.
