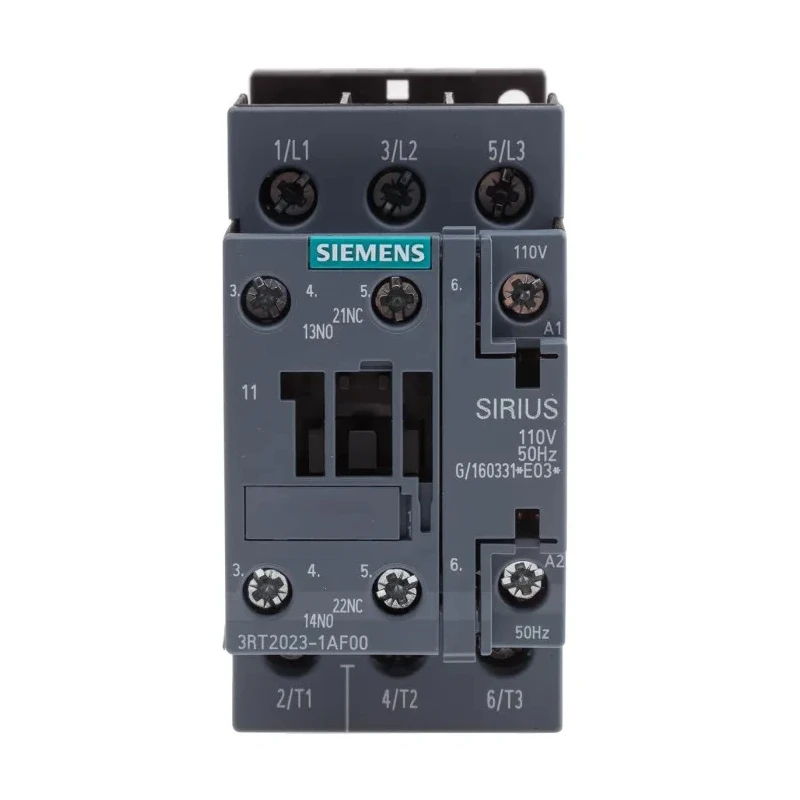

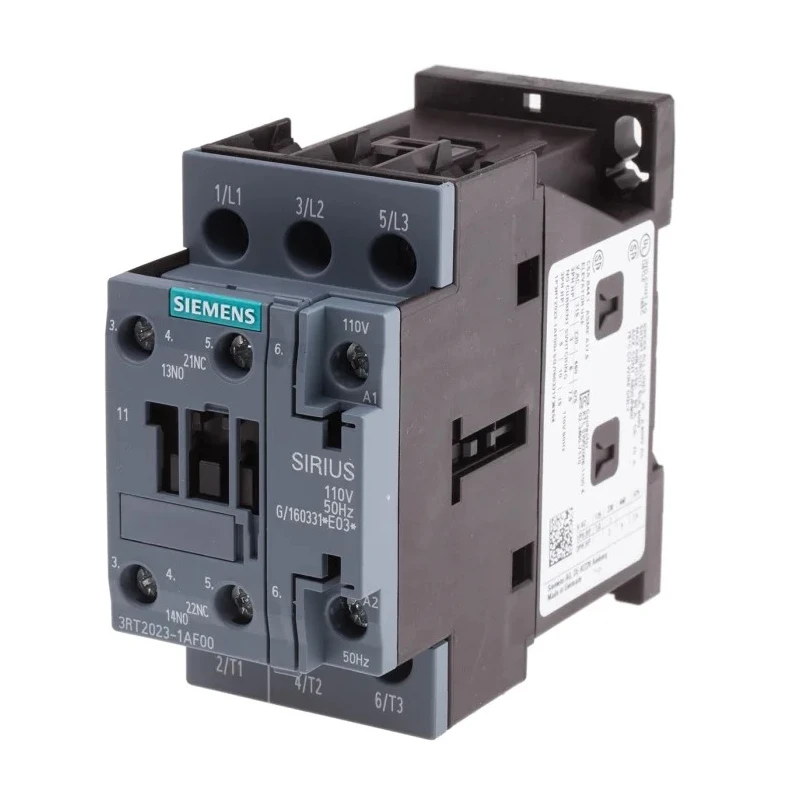

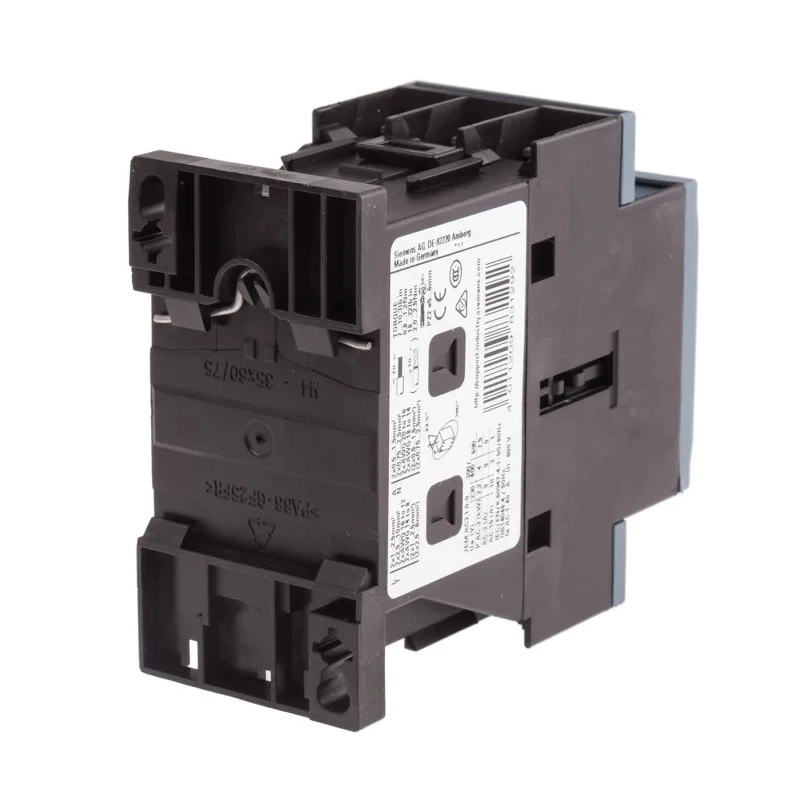

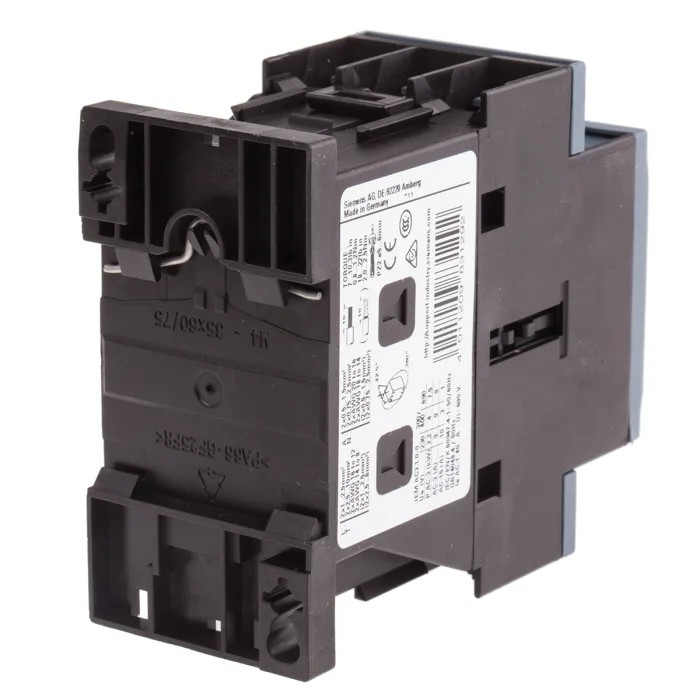

Siemens 3RT2 Contactor, 3-Pole, 110V AC Coil, 9A, 4 kW, 3 NO Auxiliary Contacts, 400V AC 3RT2023-1AF00
Specifications
| Country of Origin | Germany |
|---|---|
| Brand | Siemens |
| Length | 85mm |
| Model | 3RT2023-1AF00 |
| Depth | 92mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | 3RT2 |
| Power Rating | 4kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | EAC |
| Contact Voltage | 400V ac |
| Coil Voltage | 110V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Low Carbon Manufacture |
| Contact Current | 9A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 40A |
| Control Circuit Voltage Uc | 110V ac |
| Pole and Throw Configuration | 3 |
Key Features
- Features a coil voltage rating of 110V AC for reliable operation.
- Has 3 main poles supporting a contact current of 9A.
- Power rating of 4 kW at 400V AC contact voltage.
- Includes 2 auxiliary contacts configured as 1 NO and 1 NC.
- Mounts easily on standard DIN rail systems.
- Operates within a temperature range of -25°C to 60°C.
- Equipped with screw clamp terminals for secure wiring connections.
- Compact dimensions with length 85mm, width 45mm, and depth 92mm.
Product Description
Siemens 3RT2023-1AF00 is a 3RT2 series contactor designed for precise and robust control of electrical circuits in industrial environments. It features a 110V AC coil and three poles capable of switching currents up to 9A with a power rating of 4 kW at 400V AC, making it suitable for controlling motors and other power loads.
The device is engineered to withstand harsh conditions, functioning reliably within a temperature range from -25°C to 60°C. It is built with screw clamp terminals to ensure a secure connection and is compatible with DIN rail mounting systems for easy installation.
The contactor includes 2 auxiliary contacts arranged as 1 normally open (NO) and 1 normally closed (NC), providing flexibility for additional control and signaling requirements. Its compact dimensions (85mm length, 45mm width, and 92mm depth) allow integration into various control panels with limited space.
Designed for energy efficiency, the contactor produces minimal power loss during operation and has a high impulse voltage resistance of 6 kV, enhancing its durability and safety under transient voltage conditions.
Manufactured in Germany under strict quality controls, this product aligns with Siemens' Better World program aimed at reducing carbon emissions and supporting sustainable manufacturing processes. The 3RT2023-1AF00 contactor is a reliable component for automation, manufacturing, and electrical infrastructure applications.
Features a coil voltage rating of 110V AC for reliable operation. Has 3 main poles supporting a contact current of 9A. Power rating of 4 kW at 400V AC contact voltage. Includes 2 auxiliary contacts configured as 1 NO and 1 NC.
Mounts easily on standard DIN rail systems. Operates within a temperature range of -25°C to 60°C. Equipped with screw clamp terminals for secure wiring connections. Compact dimensions with length 85mm, width 45mm, and depth 92mm.
Constructed for low power loss and high impulse voltage resistance of 6 kV. Manufactured in Germany with low carbon footprint under Better World standards.
Ideal for electrical automation, industrial control gear, motor management, and auxiliary switching in commercial and manufacturing facilities. Explore more products from Siemens Contactors and automation control gear at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Siemens 3RT2023-1AF00 contactor has a power rating of 4 kW at a contact voltage of 400V AC.
This contactor supports a maximum contact current of 9A.
It features a coil voltage rating of 110V AC for reliable operation.
The contactor includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
The compact dimensions of this model are 85mm in length, 45mm in width, and 92mm in depth.
It operates within a temperature range of -25°C to 60°C.
This contactor is equipped with screw clamp terminals for secure wiring connections.
Yes, it mounts easily on standard DIN rail systems.
It has a high impulse voltage resistance of 6 kV, enhancing its durability under transient voltage conditions.
This model complies with EAC standards.
This contactor is manufactured in Germany.
The normal state configuration of the main contacts is 3 normally open (NO).
