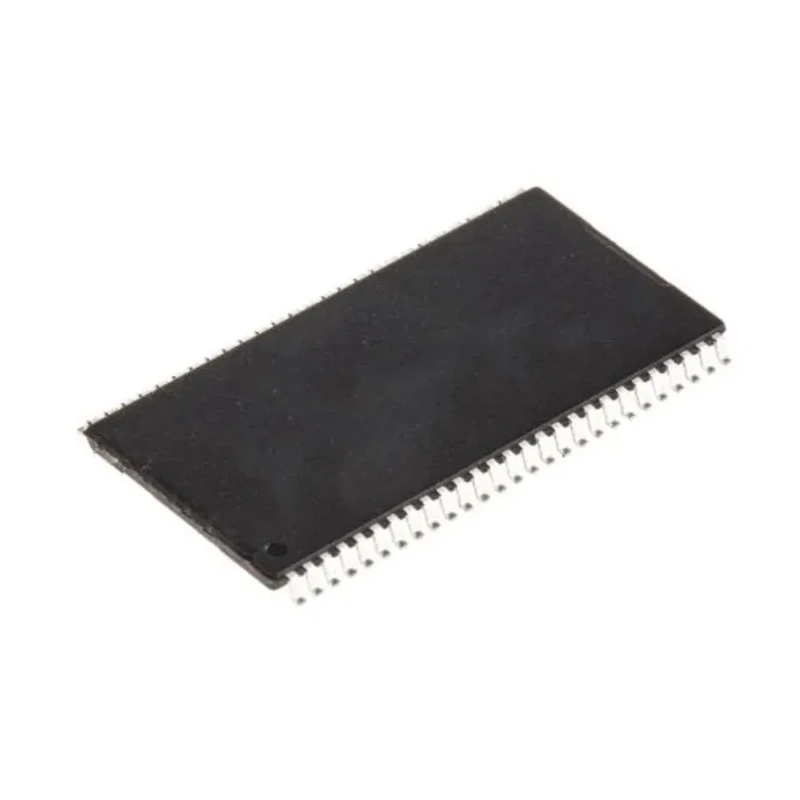

Winbond SDRAM 64MB 16-bit 54-Pin TSOP Surface Mount Memory Chip W9864G6KH-6I

Free Delivery in India | Lowest Global Shipping Charges

Winbond SDRAM 64MB 16-bit 54-Pin TSOP Surface Mount Memory Chip W9864G6KH-6I

Name: Winbond SDRAM 64MB 16-bit 54-Pin TSOP Surface Mount Memory Chip W9864G6KH-6I
Brand: Winbond
SKU: 102450
Price: 2.96 USD
Availability: InStock



Category Memory Chips Brand Winbond Condition New

Specifications

Country of Origin	India
Brand	Winbond
Interface	LVTTL
Height	1.05mm
Length	22.35mm
Model	W9864G6KH-6I
Width	10.29mm
Mount Type	Surface
Series	W9864G6KH
Maximum Operating Temperature	85°C
Package Type	TSOP
Minimum Operating Temperature	-40°C
Memory size	64MB
Standards/Approvals	RoHS
Pin Count	54
Maximum Supply Voltage	3.6V
Minimum Supply Voltage	3V
Supply Current	2mA
Maximum Clock Frequency	200MHz
Organisation	8M x 8 Bit
Number of Bits per Word	8
Maximum Random Access Time	5ns
Number of Words	8K
CAS Latency	2 & 3
Self Refresh Current	Standard and Low Power
Burst Length	1, 2, 4, 8 and full page

Key Features

Memory size of 64MB suitable for embedded systems and electronic applications.
Data bus width of 16bit and organisation of 8M x 8 Bit for efficient data handling.
Maximum clock frequency of 200MHz allowing fast access speeds.
RoHS compliant with operating temperature range from -40°C to 85°C for harsh environments.
Surface mount package type (TSOP) with 54 pins for compact PCB integration.
Supply voltage range is 3V to 3.6V with low supply current of 2mA for power efficiency.
Supports CAS latency settings of 2 and 3 with multiple burst length options for flexible memory access.
Includes self-refresh current modes for standard and low power consumption.

Product Description

Winbond W9864G6KH-6I is a high-performance 64MB SDRAM memory chip with a 16-bit data bus housed in a 54-pin TSOP surface mount package. It is designed for electronic components and semiconductor applications requiring fast and reliable memory solutions.

This device operates at a maximum clock frequency of 200MHz with a supply voltage range of 3V to 3.6V. It supports CAS latency of 2 and 3 and features multiple burst lengths of 1, 2, 4, 8, and full page, enabling flexible and efficient data access.

The chip provides robust operation over a wide temperature range from -40°C to 85°C and complies with RoHS standards, ensuring environmental safety and performance durability.

Key electrical characteristics include a low supply current of 2mA, self-refresh current modes for standard and low power, and a maximum random access time of 5 nanoseconds. It is organized as 1,048,576 words by 4 banks by 16 bits, optimized for demanding industrial and commercial electronic systems.

This memory chip is widely suitable for electronic components manufacturing, embedded system design, and other industrial semiconductor applications requiring surface mount SDRAM with excellent speed and power efficiency.

Memory size of 64MB suitable for embedded systems and electronic applications. Data bus width of 16bit and organisation of 8M x 8 Bit for efficient data handling. Maximum clock frequency of 200MHz allowing fast access speeds.

RoHS compliant with operating temperature range from -40°C to 85°C for harsh environments. Surface mount package type (TSOP) with 54 pins for compact PCB integration. Supply voltage range is 3V to 3.6V with low supply current of 2mA for power efficiency.

Supports CAS latency settings of 2 and 3 with multiple burst length options for flexible memory access. Includes self-refresh current modes for standard and low power consumption. Reliable functionality with maximum random access time of 5ns and 4K refresh cycles per 64 milliseconds.
