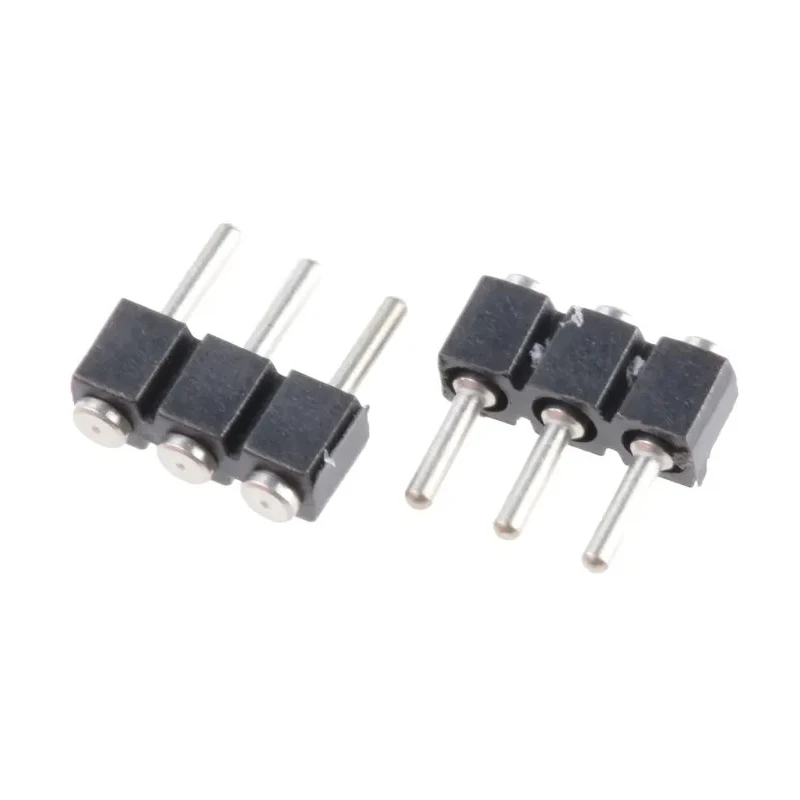

Preci-Dip 800 Series Straight Surface Pin Header, 3 Contact(s), 2.54 mm Pitch, 1 Row, Unshrouded 800-80-003-30-480101
Specifications
| Country of Origin | Switzerland |
|---|---|
| Voltage | 150V |
| Brand | Preci-Dip |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Surface |
| Housing Material | Fibreglass Reinforced Polyethylene Terephthalate |
| Contact Material | Brass |
| Series | 800 |
| Termination Type | Solder |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 3 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
Key Features
- Constructed with fiberglass reinforced polyethylene terephthalate housing material.
- Features brass contacts plated with tin for reliable conductivity.
- Supports a maximum current of 3 A and voltage rating of 150 V.
- Suitable for surface mount applications with solder termination.
- Operating temperature range from -55°C to 125°C ensures robust performance.
- Designed with male contact gender and 2.54 mm row pitch for PCB compatibility.
- Unshrouded single-row configuration offers ease of integration.
- Manufactured in Switzerland ensuring high-quality standards.
Product Description
Preci-Dip 800-80-003-30-480101 PCB Pin Header is a reliable electronic connector featuring 3 male contacts spaced with a 2.54 mm pitch in a single-row, straight surface mounting design. It is constructed with a fiberglass reinforced polyethylene terephthalate housing for durability and resistance to temperature extremes ranging from -55°C to 125°C. The brass contacts are tin plated to provide excellent electrical conductivity and solderability.
This connector supports a maximum current of 3 A and a voltage of 150 V, making it suitable for a wide range of industrial and electronic applications. Its unshrouded design facilitates easy inspection and soldering on printed circuit boards. Mounting is surface-type with solder termination, ensuring stable electrical and mechanical connections.
Produced in Switzerland, it adheres to high-quality manufacturing standards with no specific approvals stated. The 800 Series connectors come in various contact counts from 2 to 24 for versatile usage in industrial electronics, laboratory equipment, and power connectors.
The compact and robust structure makes it ideal for applications requiring durable PCB headers in industrial, commercial, and instrumentation setups. This product is essential for designers and engineers seeking dependable PCB connectors with consistent electrical performance and thermal stability.
Fiberglass reinforced polyethylene terephthalate housing for durability. Brass contacts plated with tin to ensure conductivity. 3 A current and 150 V voltage ratings suitable for various electronics. Surface mount with solder termination type for reliable connections.
Operating temperature from -55°C to 125°C for harsh environments. Single row with 3 contacts at 2.54 mm pitch and unshrouded for easy inspection. Manufactured in Switzerland ensuring high-quality standards. Explore more PCB headers and connectors in the Electronics Components category on EnvMart for comprehensive electronic project solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum current of 3 A and a voltage rating of 150 V.
It features a 2.54 mm pitch with a single-row configuration and 3 male contacts.
The operating temperature range is from -55°C to 125°C, allowing for robust performance in harsh environments.
The housing is made of fiberglass reinforced polyethylene terephthalate, and the contacts are brass plated with tin for reliable conductivity.
It is designed for surface mounting with solder termination, ensuring stable electrical and mechanical connections.
This pin header is manufactured in Switzerland, adhering to high-quality manufacturing standards.
It is suitable for a wide range of industrial and electronic applications, particularly in PCB connections.
This unit has a male contact gender, which is standard for many PCB connectors.
There are no specific approvals or certifications stated for this pin header.
The unshrouded design facilitates easy inspection and soldering on printed circuit boards, enhancing usability.
Yes, it can operate in high-temperature environments up to 125°C, making it suitable for various applications.
The 800 Series connectors come in various contact counts ranging from 2 to 24, allowing for versatile usage in different applications.
