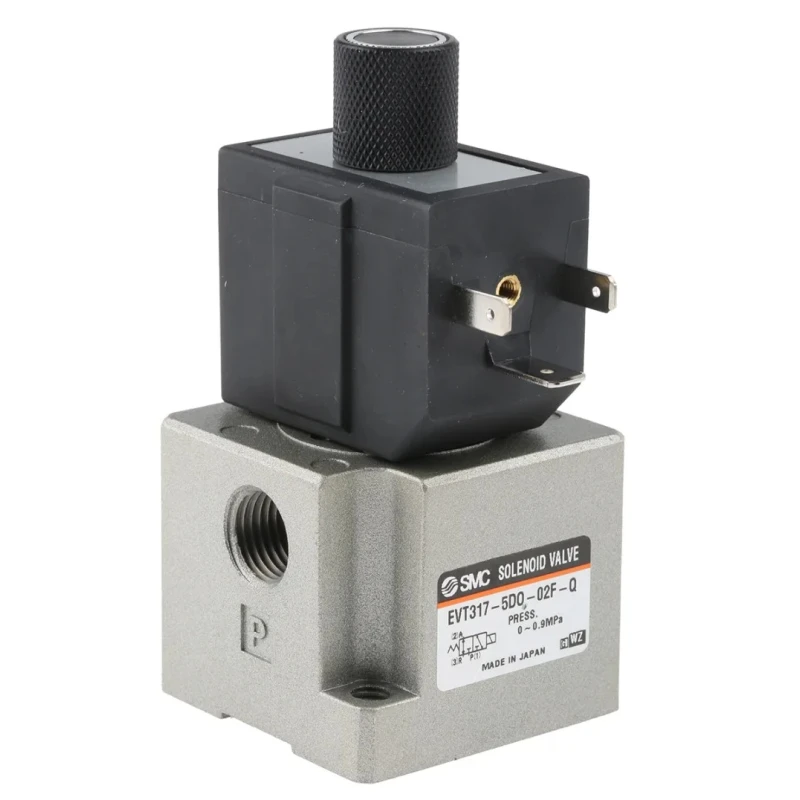

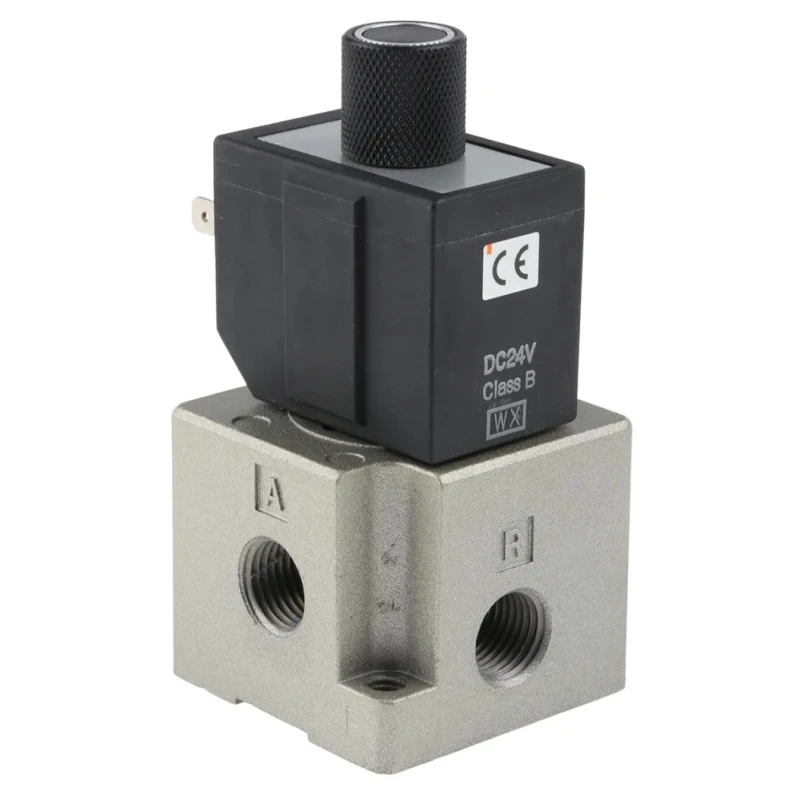

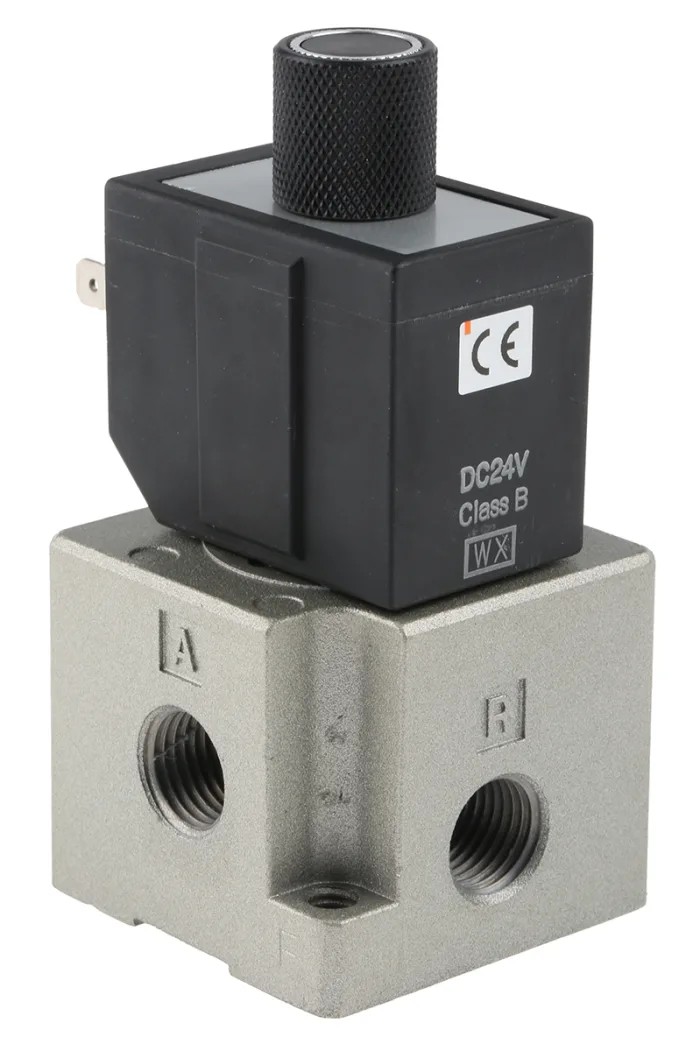

SMC Pneumatic Solenoid Valve 3/2 NC Solenoid G 1/4 in Port Size Die Cast Aluminium Body 24V DC 6W Power VT317
Specifications
| Country of Origin | Japan |
|---|---|
| Voltage | 24V dc |
| Brand | SMC |
| Body Material | Die Cast Aluminium |
| Maximum Operating Pressure | 0.9 Mpa |

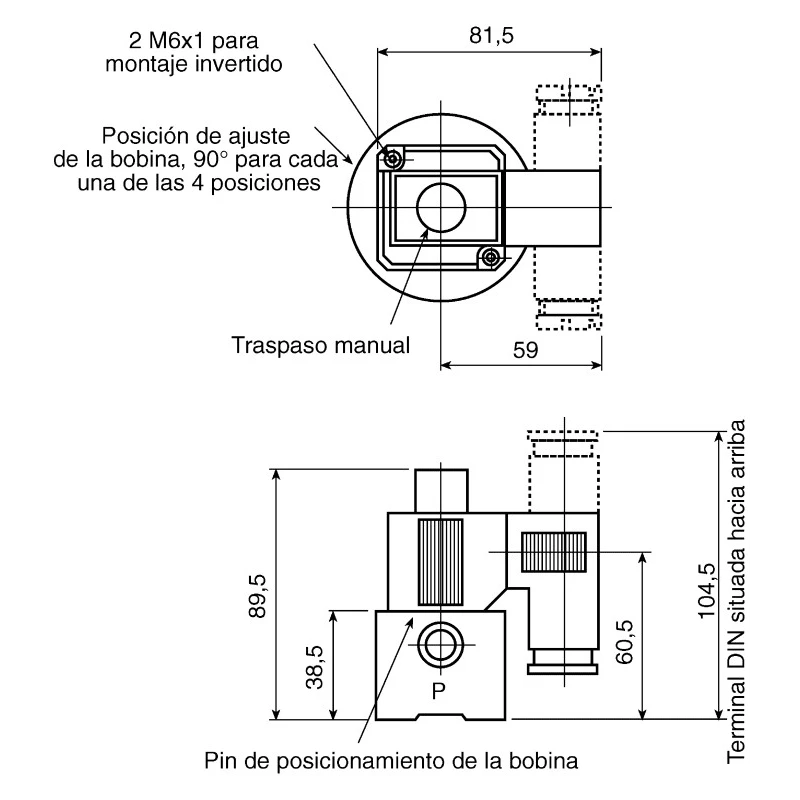

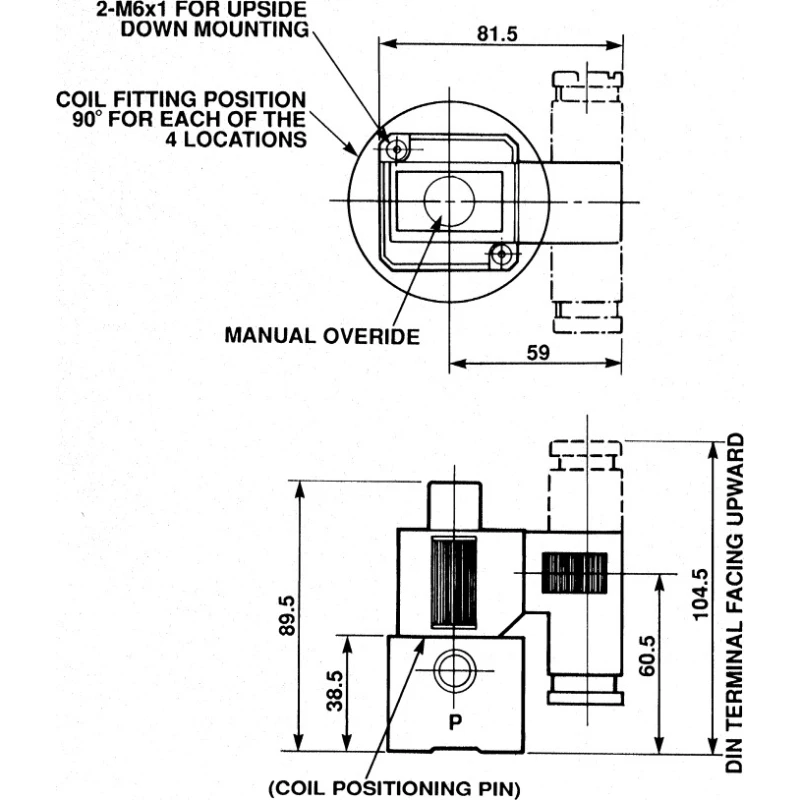

| Height | 54.5mm |
| Model | VT317 |
| Width | 3mm |
| Mount Type | Stand Alone |
| Series | VT317 |
| Number Of Ports | 3 |
| Maximum Operating Temperature | 50°C |
| Number of Positions | 2 |
| Port Size | 1/4 in |
| Seal Material | Rubber |
| Minimum Operating Temperature | 0°C |
| Actuation Type | Solenoid |
| Maximum Flow Rate | 687.05NL/min |
| Standards/Approvals | RoHS |
| Connection Thread Standard | G |

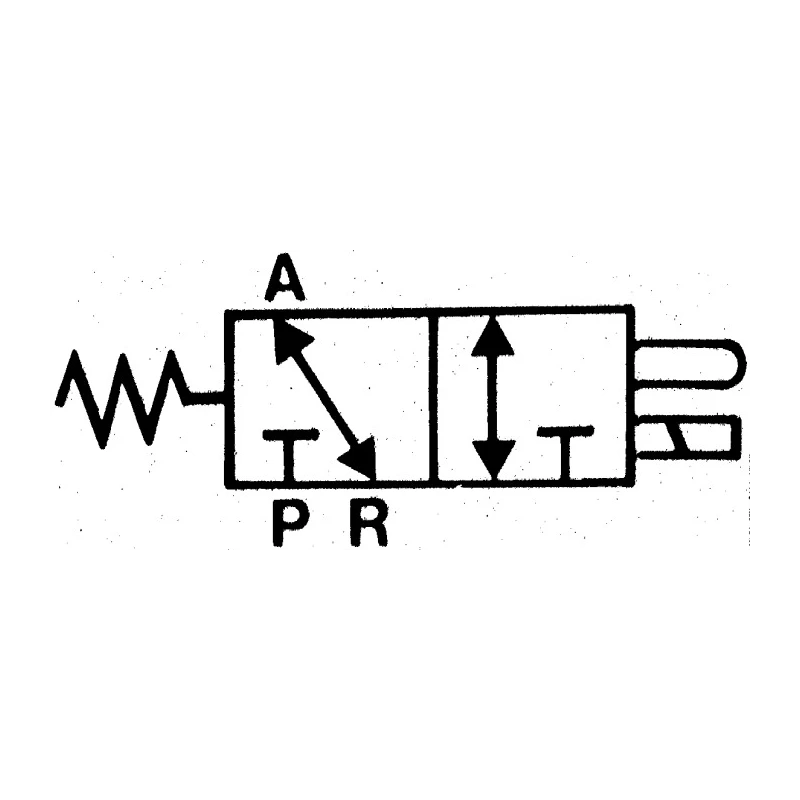

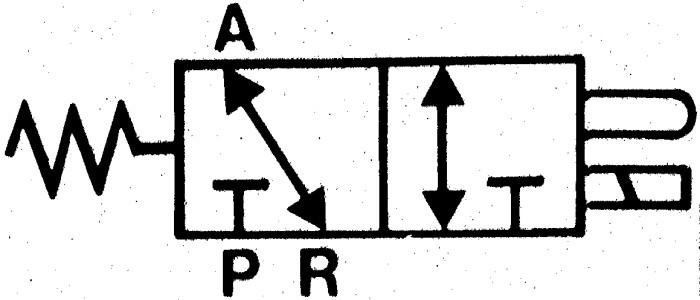

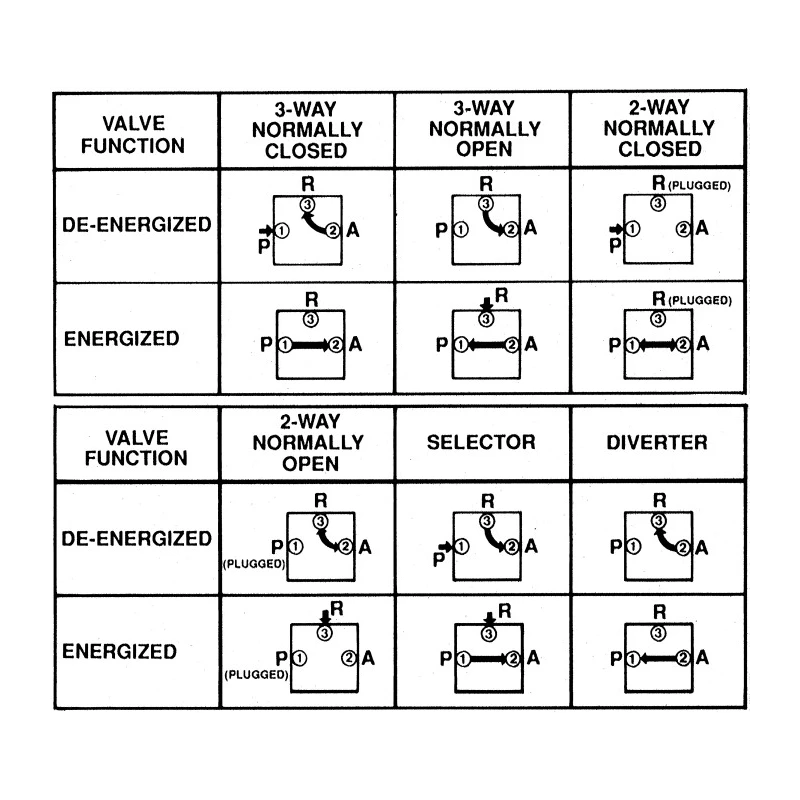

| Valve Function | 3/2 NC |
| Electrical Connection Type | DIN Connector |
| Solenoid Type | Single |
| Solenoid Power Consumption | 6W |
| SMC Pneumatic Solenoid Valve - 3/2 NC Solenoid G VT317 Series 24V dcBrand | SMC |
Key Features
- Operates with a 3/2 normally closed valve function for precise pneumatic control.
- Rated for 24V DC voltage with a power consumption of 6W for energy-efficient operation.
- Supports a maximum operating pressure of 0.9 MPa for reliable performance in pneumatic systems.
- Features a G 1/4 connection thread standard and 1/4 inch port size for compatibility.
- Offers a maximum flow rate of 687.05 NL/min enabling fast system response.
- Works effectively within a temperature range from 0°C to 50°C for versatile applications.
- Includes a rubber seal providing durability and sealed performance.
- Stand-alone mount type ensures easy installation without additional hardware.
Product Description
SMC VT317 Pneumatic Solenoid Valve 3/2 NC Solenoid Valve with G 1/4 Connection and Die Cast Aluminium Body is engineered for precision pneumatic actuation, operating at 24V DC with a 6W power rating. This valve supports industrial automation, robotics, manufacturing processes, and fluid power systems requiring controlled air flow and actuation.
The 3/2 normally closed valve function provides reliable pneumatic flow control with a maximum pressure rating of 0.9 MPa and a maximum flow rate of 687.05 NL/min, allowing quick actuation in demanding automation scenarios. The valve functions efficiently within a temperature range of 0 to 50 degrees Celsius, suitable for various operational environments.
Constructed with a durable die cast aluminium body and equipped with rubber seals, this valve ensures longevity and performance stability. The stand-alone mount type aids easy installation and integration into existing pneumatic systems without additional mounting requirements. The electrical connection via DIN connector assures consistent solenoid activation.
This product is certified to RoHS standards and is designed without hazardous area certification. Its compact size with a height of 54.5 mm and width of 3 mm optimizes use in space-constrained industrial setups. It is ideal for automated assembly lines, pneumatic air handling, robotics, clamping, lifting, and other industrial applications requiring dependable Pneumatic Solenoid Valves.
Operates with a 3/2 normally closed valve function for pneumatic control. 6W power consumption at 24V DC voltage ensures efficient actuation. Maximum operating pressure of 0.9 MPa enables versatile pneumatic performance.
G 1/4 connection thread and 1/4 inch port size provide system compatibility. Maximum flow rate of 687.05 NL/min supports fast response times. Operating temperature range 0°C to 50°C suits diverse conditions. Rubber seals enhance durability and leak prevention.
Stand-alone mount facilitates easy installation. Compact dimensions fit space-limited environments. DIN connector electrical interface for reliable solenoid operation.
This valve's design and robust material selection make it suitable for industrial, manufacturing, and fluid power applications demanding high reliability and performance. Discover more pneumatic valves and automation solutions in EnvMart's Industrial Valves category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating pressure of this model is 0.9 MPa, allowing for reliable performance in pneumatic systems.
This solenoid valve has a power consumption of 6W when operating at 24V DC.
It supports a maximum flow rate of 687.05 NL/min, enabling fast system response.
The valve operates efficiently within a temperature range of 0°C to 50°C.
It features a G 1/4 connection thread standard, ensuring compatibility with various systems.
The body is made from die cast aluminium, and it includes rubber seals for enhanced durability and leak prevention.
The electrical connection is made via a DIN connector, ensuring consistent solenoid activation.
This model features a stand-alone mount type, which facilitates easy installation without additional hardware.
It has three ports, functioning as a 3/2 normally closed valve.
This valve is certified to RoHS standards, ensuring compliance with environmental regulations.
It is suitable for industrial automation, robotics, manufacturing processes, and fluid power systems requiring controlled airflow.
