Eaton DILMS Safety Contactor 3-Pole 32A 15kW Motor Control 120V AC Coil 191738 DILMS32-R23(110V50HZ,120V60HZ)
Specifications
| Country of Origin | Romania |
|---|---|
| Brand | Eaton |
| Function | Motor Control |
| Length | 56mm |
| Model | 191738 DILMS32-R23(110V50HZ,120V60HZ) |
| Depth | 85mm |
| Width | 138mm |
| Mount Type | Table |
| Series | DILMS |
| Power Rating | 15kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw Clamp |
| Number of Poles | 3 |
| Standards/Approvals | CSA, IEC, UL |
| Contact Voltage | 400V ac |
| Coil Voltage | 120V ac |
| Normal State Configuration | 3 NO |
| Contact Current | 32A |
| Number of Auxiliary Contacts | 5 |
| Auxiliary Contact Configuration | 2 NO/3 NC |
| Operational Current Ie | 32A |
| Control Circuit Voltage Uc | 110V ac |
| Contactor Application | Safety |
| Pole and Throw Configuration | 3P |
Key Features
- Designed for motor control in industrial applications.
- Features a 3 NO normal state configuration for reliable switching.
- Equipped with 5 auxiliary contacts configured as 2 NO and 3 NC.
- Operates safely within a temperature range of -25°C to 60°C.
- Includes screw clamp terminals for secure conductor connections.
- Table mount type for easy installation in control panels.
- Mechanical lifespan rated at 10 million switching cycles for durability.
- Complies with CSA, IEC, and UL standards ensuring safety and quality.
Product Description

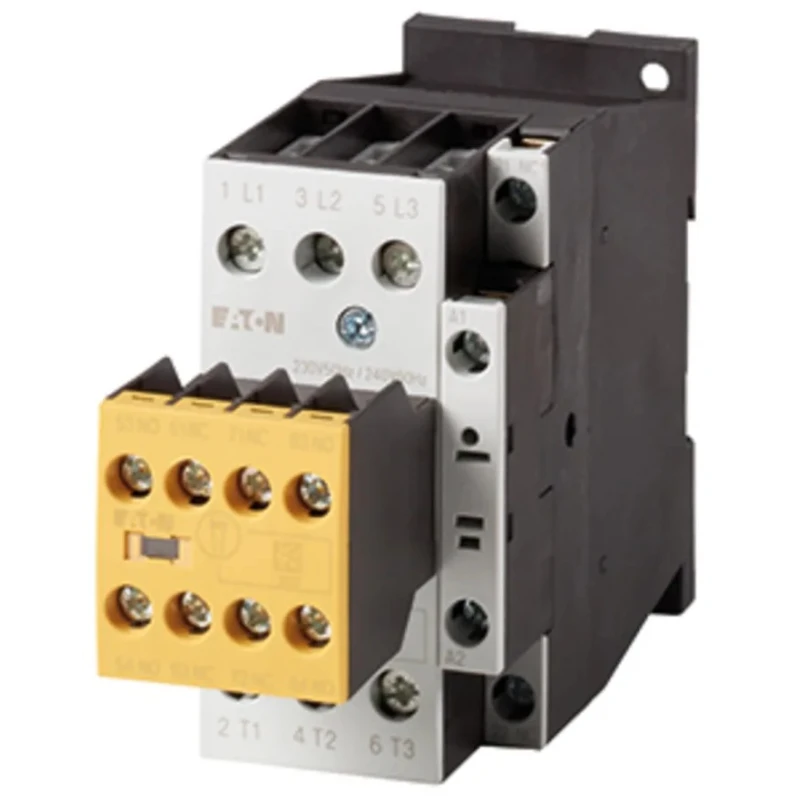

Eaton 191738 DILMS32-R23(110V50HZ,120V60HZ) Safety Contactor is a 3-pole device rated for 32A current and 15kW power. It is equipped with a 120V AC coil and operates at coil voltages of 110V AC at 50Hz and 120V AC at 60Hz, providing versatile use across different power systems. Designed primarily for motor control applications, this contactor offers dependable protection for industrial motors against overloads and electrical faults.
The contactor includes 3 normally open (NO) contacts and 5 auxiliary contacts configured as 2 NO and 3 normally closed (NC), ensuring effective control and signaling functions. The screw clamp terminal type facilitates convenient and secure conductor terminations, suitable for use with standard screwdrivers. It is mounted on a table mount, making integration with control panels straightforward.
Constructed with a thermoplastic insulated housing, the Eaton DILMS contactor minimizes the risk of electric shock to users, enhancing operational safety. Its mechanical durability is highlighted by a rated lifespan of 10 million switching cycles, supporting long-term industrial use. The product meets recognized standards from CSA, IEC, and UL, providing assurance in quality and compliance for demanding electrical environments.
This contactor operates reliably over a broad temperature range from -25°C to 60°C, making it suitable for diverse industrial environments. With dimensions of 56 mm length, 138 mm width, and 85 mm depth, it fits compactly into control gear assemblies. Originally manufactured in Romania, this Eaton series DILMS contactor is a trusted solution for industrial motor safety and control tasks.
Designed for motor control in industrial settings with high reliability. Equipped with auxiliary contacts to support control and signaling. Broad ambient temperature range for versatile deployment. Fully insulated housing for enhanced operator safety.
High mechanical switching endurance for long service life. Compliance with international electrical safety standards. Table mounting type enables easy installation. Screw clamp terminals provide secure conductor connections.
Explore the full Eaton range in the Contactors category at EnvMart for trusted industrial automation components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has a power rating of 15kW, making it suitable for various motor control applications.
The Eaton DILMS32-R23 is rated for a maximum current of 32A, which is ideal for industrial motor control.
The contactor has dimensions of 56 mm in length, 138 mm in width, and 85 mm in depth, allowing for compact installation.
It includes 5 auxiliary contacts configured as 2 normally open (NO) and 3 normally closed (NC), providing flexibility for control and signaling.
This unit operates safely within a temperature range of -25°C to 60°C, making it suitable for diverse industrial environments.
It features screw clamp terminals, which allow for secure and convenient conductor connections.
The contactor is designed for table mounting, facilitating easy installation in control panels.
It complies with CSA, IEC, and UL standards, ensuring safety and quality for industrial applications.
The mechanical lifespan is rated at 10 million switching cycles, supporting long-term use in industrial settings.
This contactor operates with a coil voltage of 120V AC, compatible with common industrial power systems.
It features a normal state configuration of 3 normally open (NO) contacts, suitable for reliable switching.
This model is originally manufactured in Romania, reflecting its quality and compliance with international standards.
