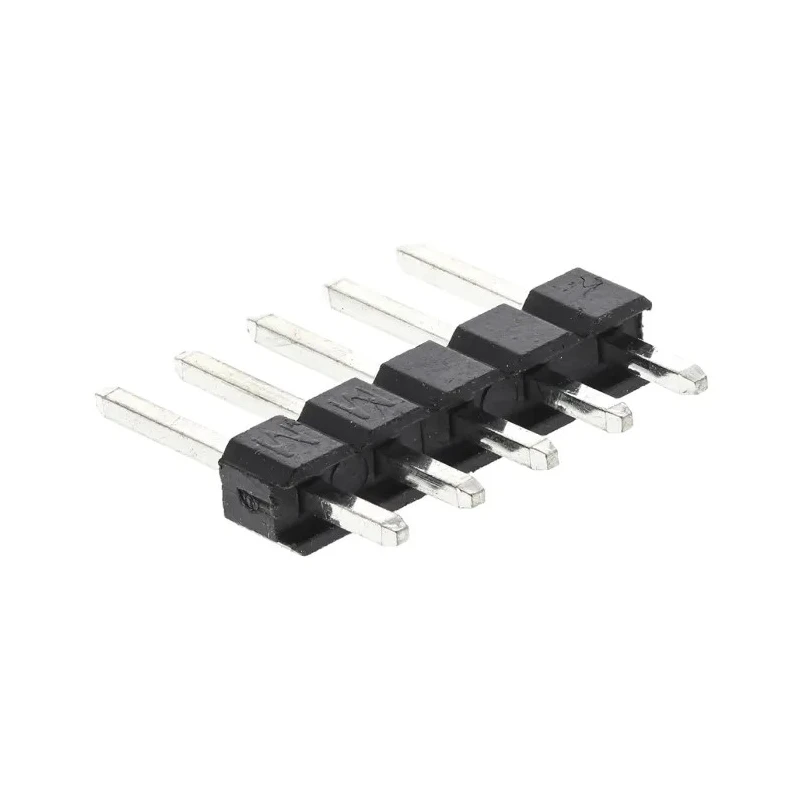

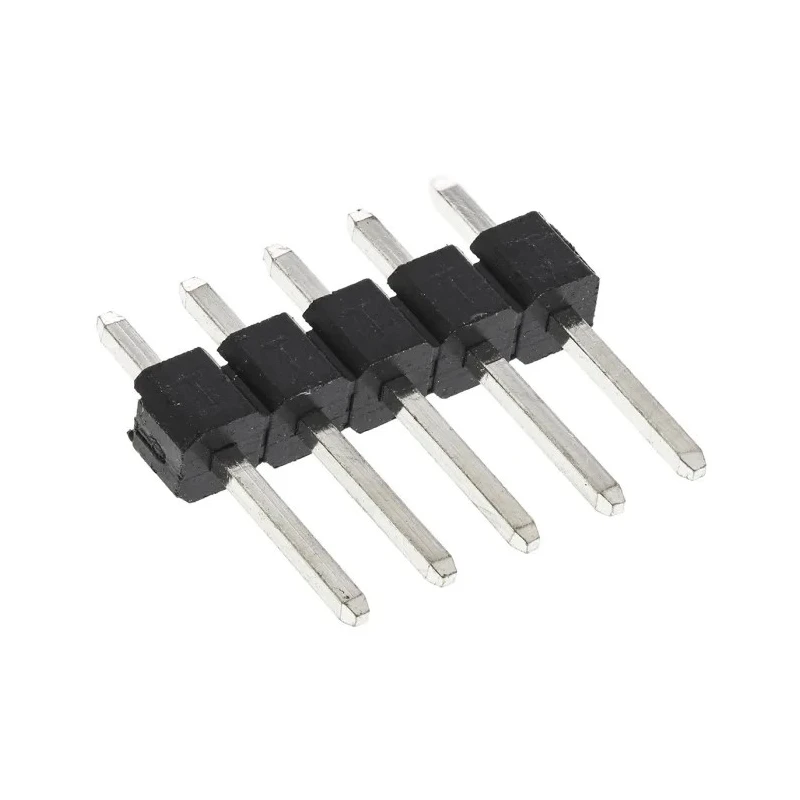

HARWIN M20 Series Straight Through Hole Pin Header, 5 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded M20-9990546

HARWIN M20-9990546 is a 5-contact straight through hole pin header connector designed for industrial and electronic applications requiring reliable PCB connections. It features a standard 2.54 mm pitch and a single row configuration suitable for embedded PCs, motherboards, communication devices, drives, and control systems.

The connector housing is fabricated from high temperature nylon thermoplastic enabling it to withstand typical reflow soldering temperatures, ensuring durability through manufacturing cycles. Its brass contacts plated with tin provide excellent electrical conductivity and resistance to corrosion. Designed for through hole mounting, it supports both board-to-board and wire-to-board connectivity, providing design flexibility.

This model offers a tail pin length of 3 mm and a mating pin length of 6.1 mm, allowing compatibility with various PCBs and mating connectors within the M20 series. Its operational temperature range from -40°C to 105°C makes it suitable for demanding industrial and commercial environments.

The unshrouded, male contact design facilitates straightforward soldering and mechanical fitment. This product does not include additional certifications or approvals but is recognized for quality in standard electronic component manufacturing.

Applications for the HARWIN M20-9990546 include consumer electronics, industrial monitoring, personal computing, and communications equipment where robust and standard pin headers are required.

Constructed with brass contacts plated in tin for reliable electrical performance. Housing made from high temperature nylon capable of withstanding reflow soldering process. Designed for through hole mounting suitable for board-to-board and wire-to-board connections.

Operating temperature range from -40°C to 105°C for versatile environmental use. Tail pin length is 3 mm with mating pin length of 6.1 mm for flexible assembly options. Compact 2.54 mm pitch spacing with 5 contacts and 1 row supports standard PCB design.

Unshrouded male contact gender facilitates easy mating with corresponding sockets and jumpers. Explore a wide range of PCB connectors and headers at EnvMart to find compatible and quality components for your electronic design and manufacturing needs.
