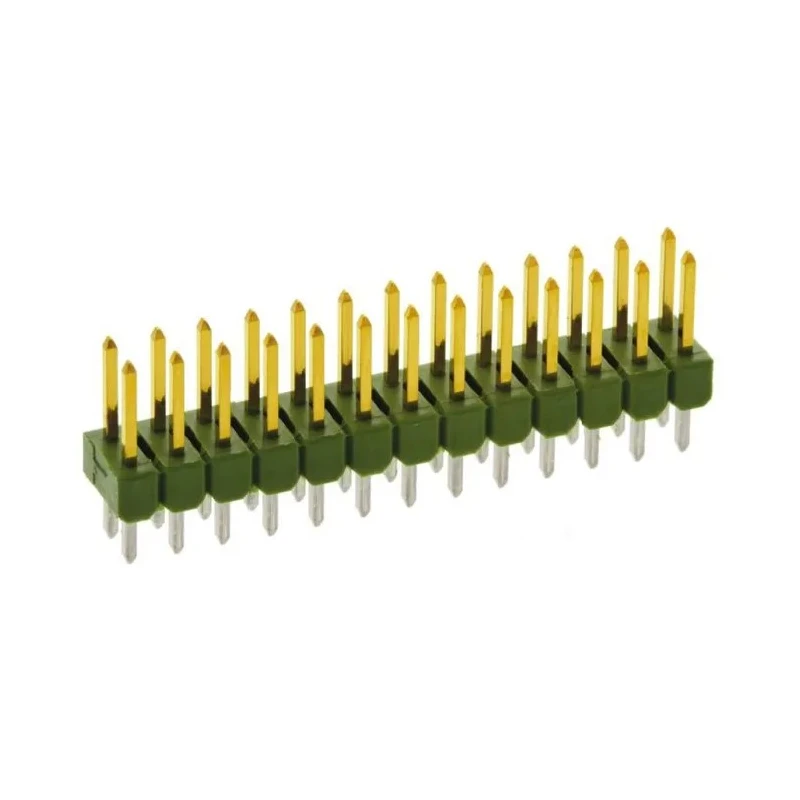

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 26 Contacts, 2.54 mm Pitch, 2 Row 1-826656-3
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Mount Type | Through Hole |
| Housing Material | Polyester |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 26 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 5.8mm |
Key Features
- Features a 2.54 mm pitch for standard PCB compatibility.
- Consists of 26 male brass contacts plated with gold for reliable signal transmission.
- Designed with a straight orientation for through-hole mounting.
- Constructed with a durable polyester housing material ensuring long service life.
- Operates reliably in temperatures from -65°C to 105°C.
- Supports board-to-board and wire-to-board connector systems.
- Termination type is solder, ensuring secure electrical connections.
- Contact tail length is 3.2 mm with a mating pin length of 5.8 mm for stable mechanical connection.
Product Description
TE Connectivity 1-826656-3 AMPMODU MOD II Series Straight Through Hole Pin Header is a precision connector designed for electronic assemblies requiring compact and reliable pin header solutions. It features 26 male contacts arranged in two rows with a 2.54 mm pitch, suitable for many PCB configurations.
The pin header is constructed with high-quality brass contacts plated in gold to ensure excellent electrical conductivity and corrosion resistance. The contacts are housed in a robust polyester material that withstands challenging industrial environments. Its unshrouded design allows easy access for soldering and mating with complementary connectors.
This double-row straight pin header supports through-hole mounting, ensuring strong mechanical retention to the PCB. Its operational temperature range of -65°C to 105°C makes it suitable for industrial, automotive, telecommunications, medical instrumentation, and test equipment applications.
AMPMODU MOD II series connectors by TE Connectivity are well-recognized for their versatility and durability in automation and control systems. This connector enables time-saving installation with the option to break into the required size, optimizing labor and component usage.
Features a 2.54 mm pitch for standard PCB compatibility. Consists of 26 male brass contacts plated with gold for reliable signal transmission. Designed with a straight orientation for through-hole mounting. Constructed with a durable polyester housing material ensuring long service life.
Operates reliably in temperatures from -65°C to 105°C. Supports board-to-board and wire-to-board connector systems. Termination type is solder, ensuring secure electrical connections. Contact tail length is 3.2 mm with a mating pin length of 5.8 mm for stable mechanical connection.
Unshrouded and double-row configuration allows for versatile application and easy customization.
This pin header is widely applicable in electronics manufacturing, including automotive control systems, industrial equipment, telecommunication devices, medical instruments, and computer peripherals. Its modular design facilitates easy assembly and repair, making it an ideal choice for high-reliability electronic interconnection solutions.
Explore more high-quality PCB connectors and electronic components on EnvMart to enhance your electronic device assembly and ensure robust connections.
Explore more products in our PCB Headers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pin header features a pitch of 2.54 mm, which is standard for PCB compatibility.
This model has 26 male contacts arranged in two rows.
It operates reliably in temperatures ranging from -65°C to 105°C.
The contacts are made of brass and are plated with gold, while the housing is constructed from durable polyester.
The termination type for this pin header is solder, ensuring secure electrical connections.
The tail pin length is 3.2 mm, providing a stable mechanical connection.
It supports both board-to-board and wire-to-board connector systems.
This model is unshrouded, allowing for easy access for soldering and mating with complementary connectors.
The maximum current rating for this pin header is 3A.
The mating pin length is 5.8 mm, which contributes to a stable connection.
It is designed for through-hole mounting, ensuring strong mechanical retention to the PCB.
The country of origin for this product is India.
