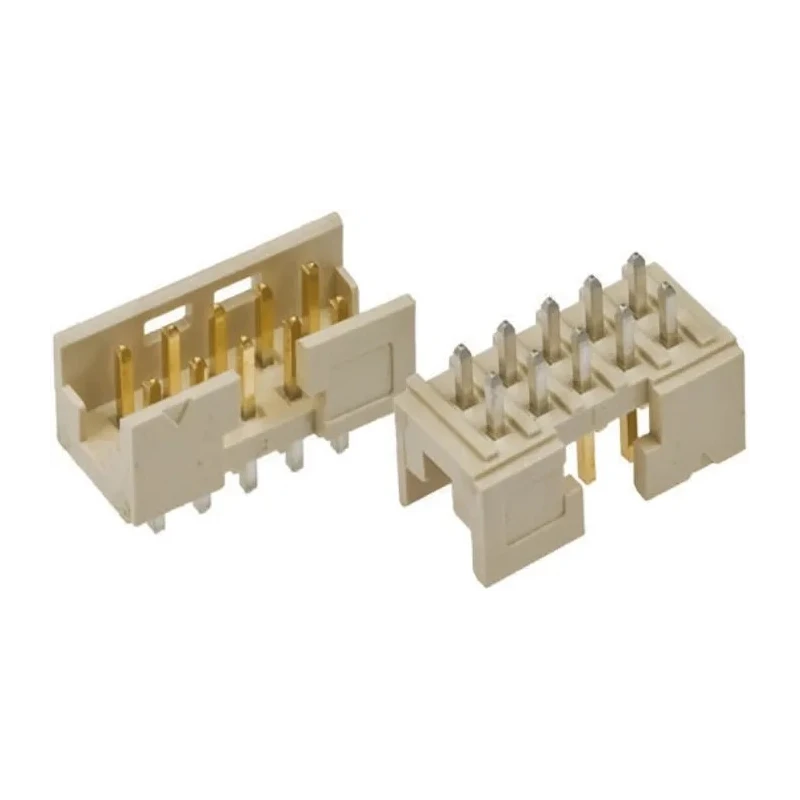

Amphenol Communications Solutions Minitek Series 2.00 mm Pitch 20 Contact 2 Row Straight Through Hole PCB 98414-G06-20LF

Amphenol Communications Solutions 98414-G06-20LF is a Minitek Series PCB header designed for electronic board interconnections requiring compact and reliable connectors. This 20-contact, 2-row straight through hole header is engineered with a 2.00 mm pitch that saves 38% board space compared to traditional 2.54 mm pitch connectors. It is ideally suited for use in automotive applications, I/O modules, server drives, PLCs, and other electronics demanding space-efficient and durable connector solutions.

The housing is made from high-temperature UL94V-0 rated thermoplastic, ensuring it withstands reflow soldering processes without degradation. Shrouded contact design includes keying features to prevent incorrect mating and secure latching slots to maintain connection integrity under vibration or movement. The contacts are made from copper alloy and plated with gold to provide excellent conductivity and a maximum current capacity of 2 A per contact.

Additional design elements such as board standoffs facilitate efficient PCB cleaning and maintenance, enhancing long-term reliability. The header operates reliably within a temperature range of -40°C to 125°C, making it suitable for a broad range of industrial and commercial electronic applications. This connector system supports both board-to-board and wire-to-board applications, offering flexible integration options.

Space-saving 2 mm pitch design reduces PCB area usage by 38% compared to 2.54 mm connectors. Gold plated copper alloy contacts provide a maximum current rating of 2A per contact. High-temperature UL94V-0 thermoplastic housing withstands reflow soldering processes effectively.

Shrouded design with keying features prevents mismating with connectors. Latching slots ensure a secure mating connection to the receptacle. Board standoffs simplify PCB cleaning and maintenance. Designed for board-to-board and wire-to-board applications.

Operates reliably in temperatures from -40°C to 125°C. Solder termination type with male contact gender and tail pin length of 2.5 mm. Manufactured in France ensuring quality and reliability.

Amphenol Communications Solutions is a reputed brand well-regarded for its high-quality connector solutions. This exact model 98414-G06-20LF meets stringent industrial standards to serve demanding electronic assembly requirements. Buy this Minitek Series PCB Header for reliable and compact board interfacing from EnvMart.
