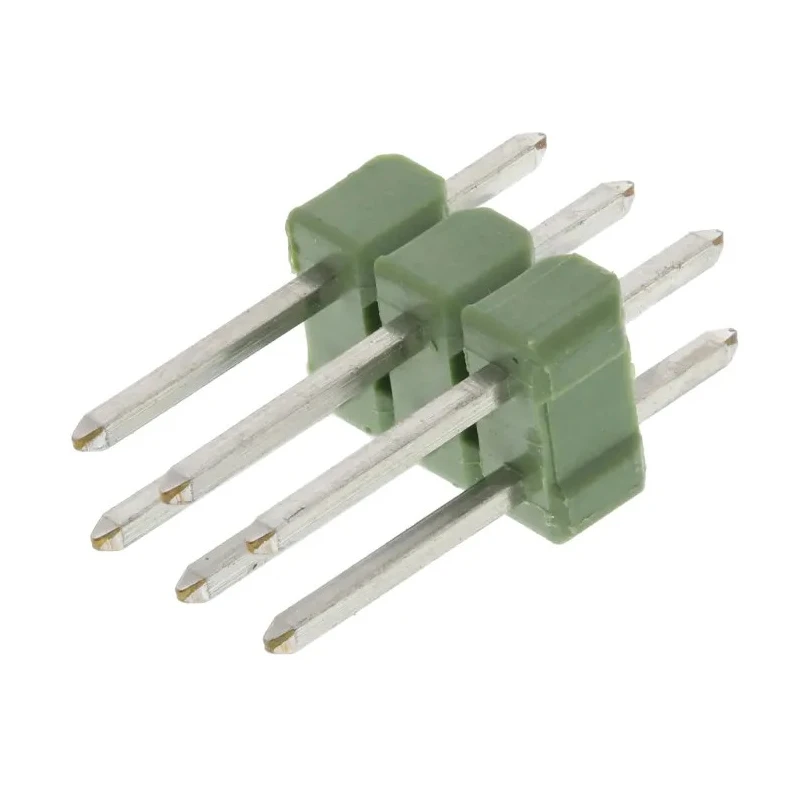

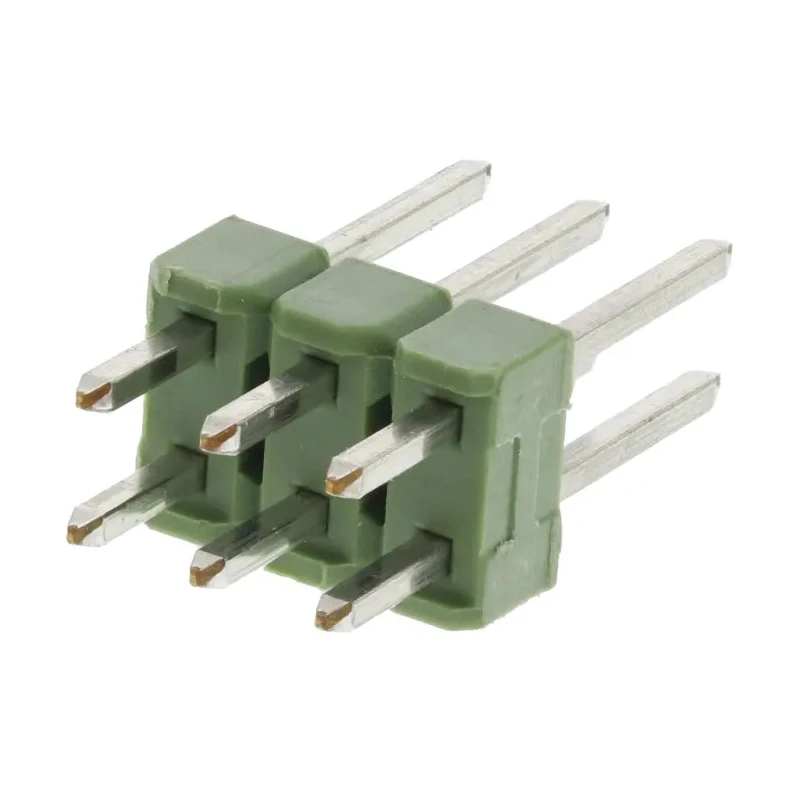

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header 6 Contacts 2.54 mm Pitch 2 Row Unshrouded 826925-3
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Straight |
| Current | 3A |
| Model | 826925-3 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features a 2.54 mm pitch and double row configuration for compact board integration.
- Constructed with brass contact material plated with tin to ensure reliable electrical performance.
- Designed for through-hole mounting with straight orientation for robust solder connection.
- Accommodates up to 3A current and supports voltages up to 750V.
- Operates reliably between -65°C to 105°C temperature range.
- Unshrouded male contacts suitable for board-to-board and wire-to-board connections.
- Tail pin length of 3.2 mm and mating pin length of 6.7 mm for secure interface.
- Housing made from durable polybutylene terephthalate to withstand industrial environments.
Product Description
TE Connectivity 826925-3 is an AMPMODU MOD II Series Straight Through Hole Pin Header featuring 6 contacts arranged in 2 rows with a 2.54 mm pitch. This unshrouded male pin header is designed for reliable solder through-hole mounting, making it suitable for robust board-to-board and wire-to-board connections in various electronic devices.
The contacts are made from brass with tin plating to ensure consistent conductivity and corrosion resistance. Its housing utilizes polybutylene terephthalate, providing durable mechanical strength and chemical resistance suited for demanding industrial applications.
Operating within a wide temperature range of -65°C to 105°C, this pin header supports current ratings up to 3A and voltages up to 750V, enabling it to perform reliably in automotive controls, telecommunications, industrial machinery, computers, and test equipment.
The tail pin length of 3.2 mm combined with mating pin length of 6.7 mm facilitates secure and stable connections. Its straight orientation and unshrouded design allow flexibility in various PCB layouts and ease of customization by breaking down to the desired size.
This AMPMODU MOD II system is known for its versatility, quick installation, and economical solution for automation and control applications across multiple sectors including medical instruments, storage equipment, and appliances.
Features a 2.54 mm pitch and double row configuration for compact board integration. Constructed with brass contact material plated with tin to ensure reliable electrical performance. Designed for through-hole mounting with straight orientation for robust solder connection.
Accommodates up to 3A current and supports voltages up to 750V. Operates reliably between -65°C to 105°C temperature range. Unshrouded male contacts suitable for board-to-board and wire-to-board connections. Tail pin length of 3.2 mm and mating pin length of 6.7 mm for secure interface.
Housing made from durable polybutylene terephthalate to withstand industrial environments.
This product is ideal for electronic manufacturing and design in industrial, automotive, telecommunications, and laboratory environments. Explore more components in the PCB Headers category on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model accommodates up to 3A current.
It supports voltages up to 750V.
It operates reliably between -65°C to 105°C.
This pin header features 6 contacts arranged in 2 rows.
The pitch size of the contacts is 2.54 mm.
The contacts are made from brass with tin plating, and the housing is made from polybutylene terephthalate.
It is designed for through-hole mounting.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
It supports board-to-board and wire-to-board connections.
This model features unshrouded male contacts.
It belongs to the AMPMODU MOD II Series.
