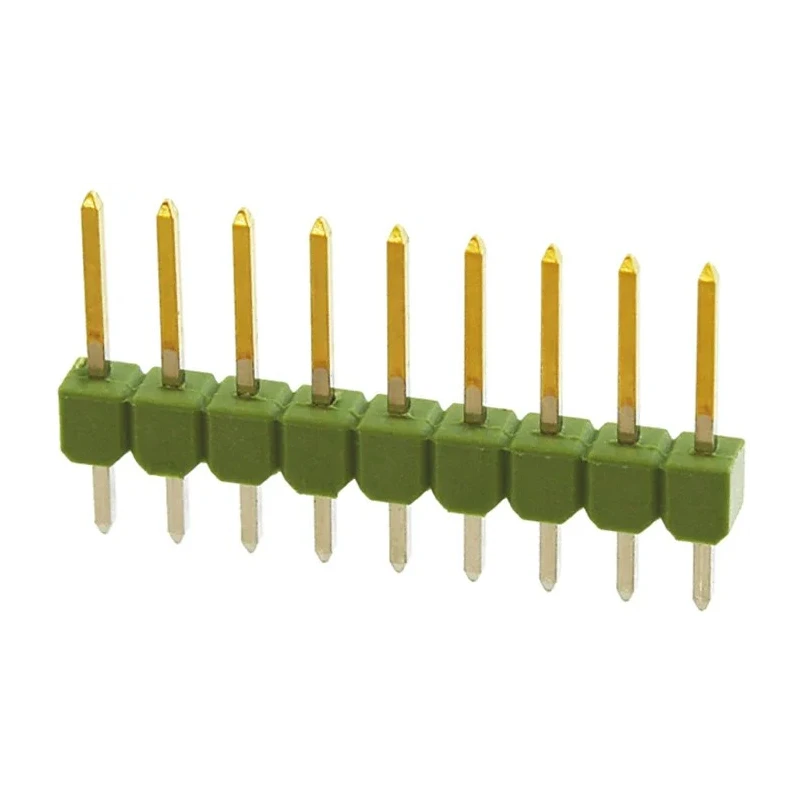

TE Connectivity AMPMODU MOD II Series Straight Through Hole Pin Header, 9 Contacts, 2.54 mm Pitch, 1 Row, Unshrouded 826629-9

TE Connectivity 826629-9 AMPMODU MOD II Series Straight Through Hole Pin Header, featuring 9 contacts with 2.54 mm pitch in a single, unshrouded row configuration, is designed for robust and versatile interconnect applications. It enables reliable board-to-board and wire-to-board connections in a compact form factor.

The contact pins are crafted from brass and plated with gold to ensure excellent electrical conductivity and corrosion resistance, while the housing is manufactured using polybutylene terephthalate for superior durability and heat resistance. This pin header supports a current of 3A and a voltage rating up to 750V, making it suitable for a variety of medium-power electronic applications.

With operational temperatures ranging from -65°C to 105°C, it maintains dependable performance in harsh environments. The connector features solder termination with a tail pin length of 3.2 mm and a mating pin length of 6.7 mm, facilitating secure and efficient soldering processes.

Its breakaway design allows it to be easily segmented to the desired size, offering flexibility and efficiency in manufacturing setups. The unshrouded single-row straight orientation simplifies board design and assembly.

Applications of this pin header span automotive controls, industrial and test equipment, computers, telecommunications, medical instruments, and storage equipment, exemplifying its wide adaptability in industrial and commercial electronics.

This pin header offers a reliable electrical connection with brass gold-plated contacts. Polybutylene terephthalate housing provides mechanical stability and heat resistance. Rated for 3A current and 750V voltage, suitable for diverse electronic systems.

Designed for through-hole mounting with solder termination for secure installation. Breakaway feature allows customization of connector length to application requirements. Operating temperature range of -65°C to 105°C supports harsh environmental conditions.

Compact 2.54 mm pitch spacing facilitates high-density PCB layouts. Widely applicable across automotive, industrial, medical, and communications sectors. TE Connectivity’s AMPMODU MOD II system represents a trusted standard in automation and control interconnect technology, combining reliability with cost effectiveness.
