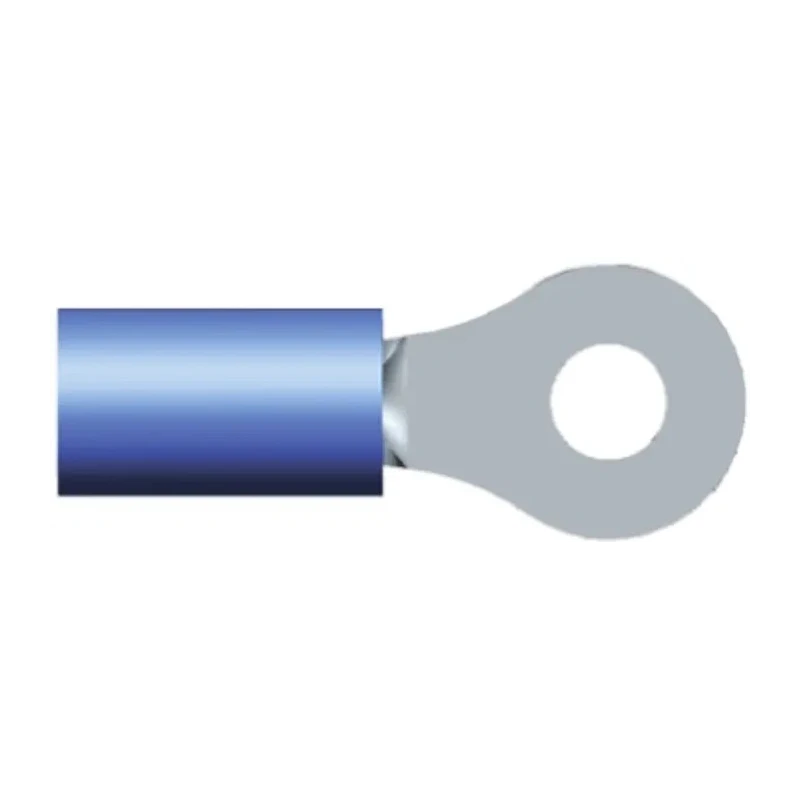

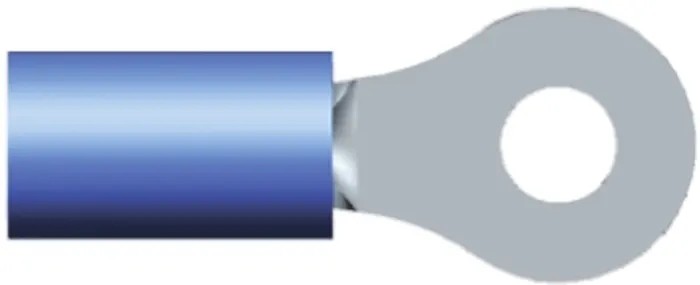

RS PRO PIDG Insulated Ring Terminal M3.5 Stud Size 16 AWG to 14 AWG Wire Size Blue 36157
Specifications
| Country of Origin | India |
|---|---|
| Brand | RS PRO |
| Colour | Blue |
| THICKNESS | 0.79mm |
| Model | 36157 |
| Insulation | Insulated |
| Overall Length | 21.82mm |
| Contact Material | Copper |
| Series | PIDG |
| Maximum Operating Temperature | 105°C |
| Insulation Material | Nylon |
| Standards/Approvals | RoHS, CSA LR7189, UL E13288 |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 1mm² |
| Maximum Wire Size mm² | 2.6mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Outer Ring Diameter | 7.54mm |
| Inner Ring Diameter | 3.68mm |
| Stud Size | M3.5 |
Key Features
- Constructed from high conductivity copper with tin plating for improved contact reliability.
- Features nylon insulation sleeve in blue color for wire size identification and mechanical protection.
- Suitable for 16 AWG to 14 AWG wire sizes, matching 1 mm² to 2.6 mm² cross-sectional area.
- Outer ring diameter is 7.54 mm and inner ring diameter is 3.68 mm for compatibility with M3.5 studs.
- Overall terminal length is 21.82 mm with 0.79 mm thickness for sturdy mechanical strength.
- Wire barrel incorporates serrations and copper sleeve to ensure maximum electrical contact and tensile strength.
- Designed to prevent fraying and simplify fast wire insertion by funnelled entry design.
- Rated for maximum operating temperature of 105°C, suitable for industrial electrical applications.
Product Description
TE Connectivity 36157 PIDG Insulated Ring Terminal is an advanced wire terminal designed for reliable and durable electrical connections. This Ring Terminal features a precision-formed high conductivity copper body coated with tin to optimize electrical contact and resist corrosion.
The insulated nylon sleeve is color-coded blue to denote the wire size range it supports, which is from 16 AWG to 14 AWG, corresponding to cross-sectional wire sizes of 1 mm² to 2.6 mm². The terminal's outer diameter of 7.54 mm and inner diameter of 3.68 mm suit the M3.5 stud size, ensuring compatibility with a range of circuit and panel wiring applications.
The terminal length of 21.82 mm and thickness of 0.79 mm provide mechanical strength required for reliable connections under demanding conditions. Serrations inside the copper barrel improve contact quality and tensile strength after crimping, while the copper sleeve supports wire insulation and minimizes fraying.
The funnelled wire entry design aids fast and accurate wire insertion, making these terminals ideal for high-speed production environments. The terminal meets stringent industrial standards including RoHS compliance, CSA LR7189, and UL E13288 certifications.
PIDG terminals from TE Connectivity are used extensively in automotive, aerospace, industrial machinery, control systems, lighting, power supplies, panel boxes, and appliances, where robust electrical and mechanical performance is critical.
Constructed from high conductivity copper with tin plating for reliable electrical contact. Blue nylon insulation sleeve provides wire size identification and protection. Compatible with wire sizes from 16 AWG to 14 AWG (1 mm² to 2.6 mm²).
Precise dimensions: outer ring diameter 7.54 mm, inner ring diameter 3.68 mm. Overall length 21.82 mm and thickness 0.79 mm for mechanical strength. Serrated copper barrel ensures maximum contact and tensile strength. Funnelled wire entry for fast wire insertion and secure crimping.
Rated for maximum operating temperature of 105°C. Explore more TE Connectivity industrial electrical components and wire terminals on EnvMart for your electronics manufacturing and maintenance needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model is compatible with wire sizes from 16 AWG to 14 AWG, which corresponds to a cross-sectional area of 1 mm² to 2.6 mm².
The outer ring diameter is 7.54 mm, the inner ring diameter is 3.68 mm, and the overall length is 21.82 mm with a thickness of 0.79 mm.
It is constructed from high conductivity copper with tin plating for the contact, and features a nylon insulation sleeve.
The terminal is rated for a maximum operating temperature of 105°C.
This terminal meets RoHS compliance and has certifications from CSA (LR7189) and UL (E13288).
The wire barrel incorporates serrations and a copper sleeve, which ensure maximum electrical contact and tensile strength after crimping.
This model is compatible with M3.5 stud sizes.
It features a funnelled wire entry design that simplifies fast wire insertion and helps prevent fraying.
It is suitable for use in automotive, aerospace, industrial machinery, control systems, lighting, power supplies, panel boxes, and appliances.
The insulation sleeve is blue, which is used for wire size identification.
The tin plating optimizes electrical contact and helps resist corrosion.
The thickness of this terminal is 0.79 mm, providing the necessary mechanical strength for reliable connections.
