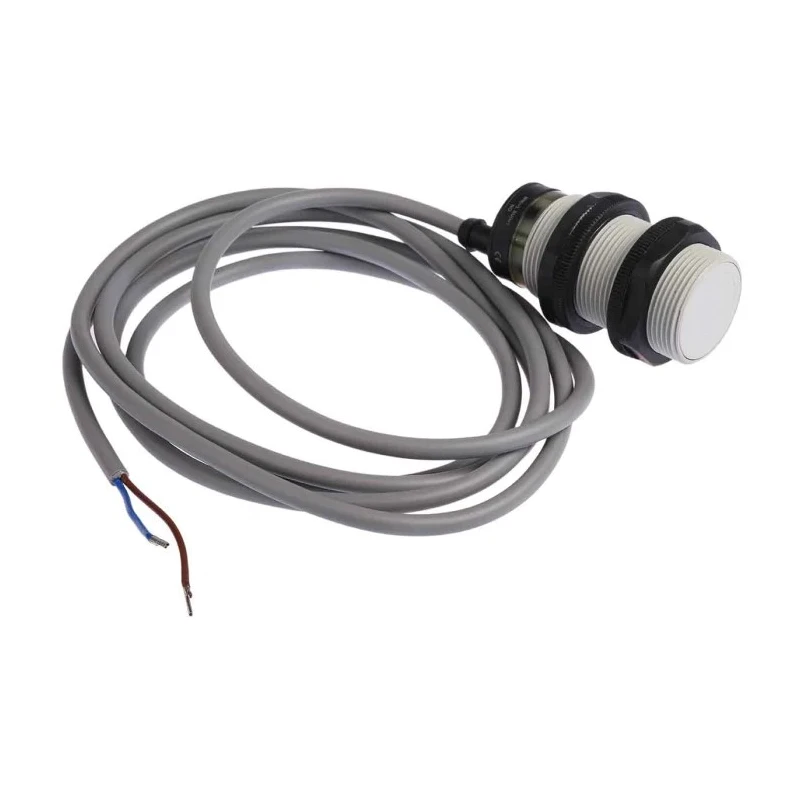

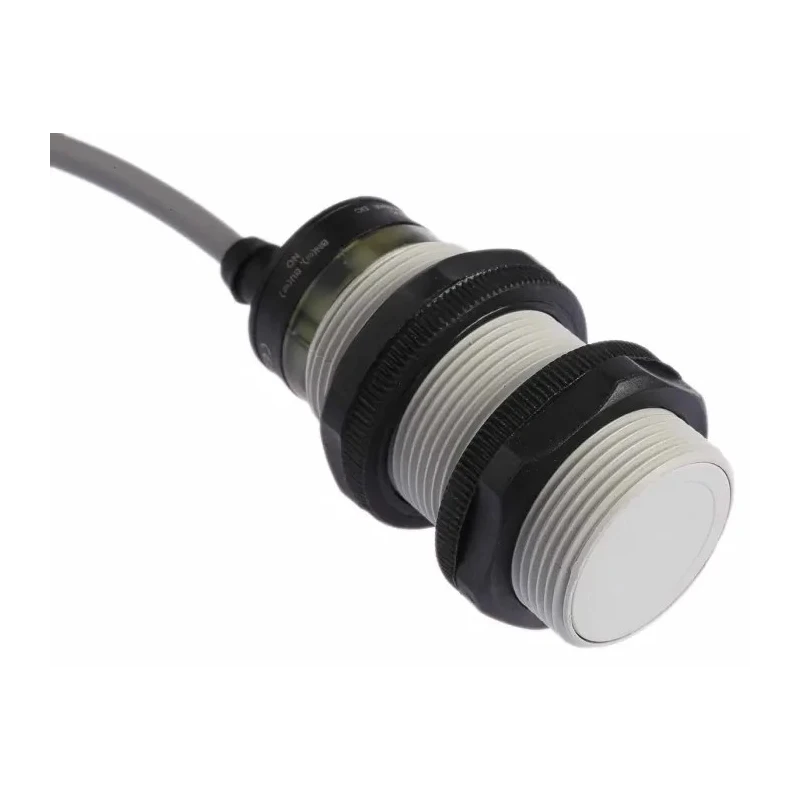

RS PRO Threaded Barrel Capacitive Proximity Sensor M30 x 1.5 10 mm Detection 2-Wire 3mA 250V AC/DC 184-5627
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 62mm |
| Model | 184-5627 |
| IP Rating | IP67 |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | 2-Wire |
| Series | 5627 |
| Maximum Operating Temperature | 70°C |
| Thread Size | M30 x 1.5 |
| Minimum Operating Temperature | -25°C |
| Switching Current | 3mA |
| Terminal type | Pre-Cabled |
| Body Style | Threaded Barrel |
| Maximum dc Voltage | 250V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 15Hz |
| Maximum AC Voltage | 250V ac |
| Maximum Supply Voltage | 250V |
| Materials Detected | Metallic and Non-Metallic Objects |
| Maximum Detection | 10mm |
Key Features
- The sensor has a threaded barrel body style with an M30 x 1.5 thread size for secure mounting.
- It offers a robust IP67 rating for protection against dust and water ingress.
- The sensor operates via a 2-wire pre-cabled terminal with a switching current of 3mA.
- It supports a maximum supply voltage of 250V AC/DC, suitable for varied electrical environments.
- The sensor housing is made of durable polybutylene terephthalate to withstand industrial conditions.
- It detects both metallic and non-metallic materials, enhancing application flexibility.
- Operating temperature ranges from -25°C to 70°C, ensuring reliability in diverse conditions.
- The sensor features shielding to reduce interference and operates at a maximum switching frequency of 15Hz.
Product Description
RS PRO 184-5627 Threaded Barrel Capacitive Proximity Sensor is engineered for industrial automation and control gear applications, featuring a threaded barrel design with M30 x 1.5 dimensions and a 62mm body length for easy flush mounting. This sensor provides a 10 mm maximum detection range for metallic and non-metallic objects, using capacitive sensing technology for non-contact, reliable object detection.
Constructed with a polybutylene terephthalate housing, it offers excellent durability and an IP67 protection rating, suitable for harsh environments. The 2-wire pre-cabled terminal ensures straightforward electrical connection, while supporting a maximum supply voltage of 250V AC/DC and a switching current of 3mA, enabling safe operation in various industrial power systems.
This sensor operates effectively across a wide temperature range from -25°C to 70°C. Its shielded design minimizes electrical interference and supports a maximum switching frequency of 15Hz, making it ideal for monitoring presence, level, thickness, or flow in manufacturing, laboratory, HVAC, water treatment, and general industrial uses.
The product does not include hazardous area certification or specific approvals but maintains high industrial standards for versatility and reliability. Use this RS PRO capacitive Proximity Sensor for applications requiring precise non-contact detection of diverse materials, contributing to improved quality control and efficiency in automated systems.
The sensor body is threaded M30 x 1.5, enabling secure and flush installation. Polybutylene terephthalate housing ensures durability and chemical resistance. Rated IP67 for robust protection against dust and water ingress.
Detects both metallic and non-metallic objects for flexible use cases. Operates on 250V AC/DC supply with a 3mA switching current for reliable performance. Shielded design for noise immunity and consistent operation at 15Hz switching frequency.
Temperature tolerance from -25°C to 70°C suits various industrial environments. Pre-cabled 2-wire connection simplifies integration and maintenance.
This RS PRO sensor series is well-suited for industrial and laboratory use, enhancing automation systems with capacitive sensing technology. Ensure optimum monitoring and control in manufacturing, process automation, and quality assurance workflows. Discover more sensors and automation products in the RS PRO range on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The sensor has a maximum detection range of 10 mm for both metallic and non-metallic objects.
It operates effectively within a temperature range of -25°C to 70°C.
The sensor supports a maximum supply voltage of 250V AC/DC.

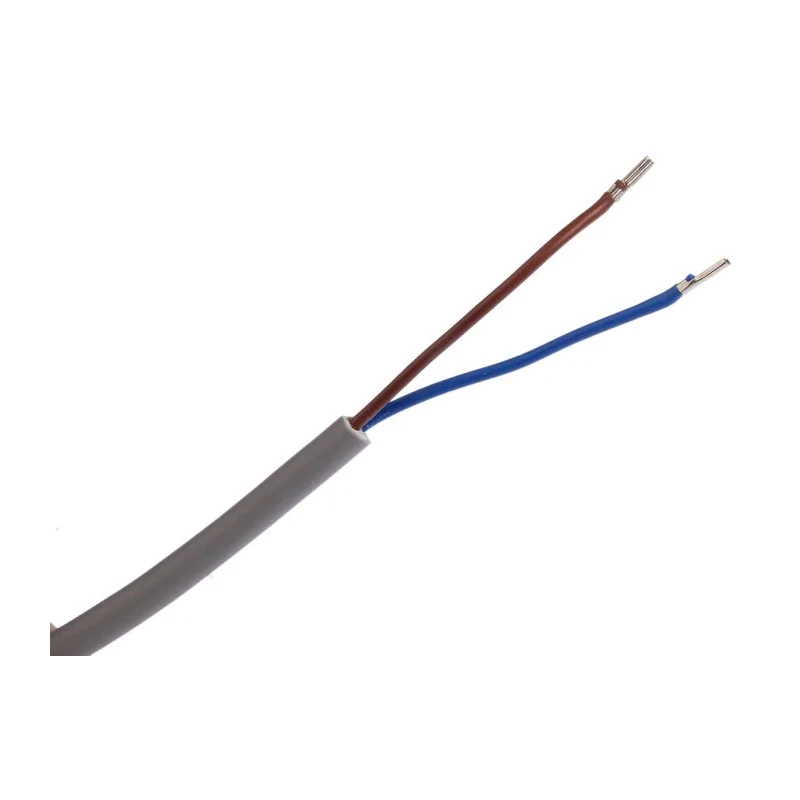

It features a 2-wire pre-cabled terminal for straightforward electrical connection.
The sensor has an IP67 rating, providing protection against dust and water ingress.
The maximum switching current for this sensor is 3mA.
It can detect both metallic and non-metallic objects, enhancing its application versatility.
The maximum switching frequency is 15Hz, allowing for effective monitoring applications.
The housing is made of polybutylene terephthalate, which provides durability in industrial conditions.
It features a threaded barrel body style with an M30 x 1.5 thread size for secure mounting.
The length of the sensor body is 62 mm, suitable for flush mounting applications.
Yes, the sensor's IP67 rating and durable housing make it suitable for harsh industrial environments.
