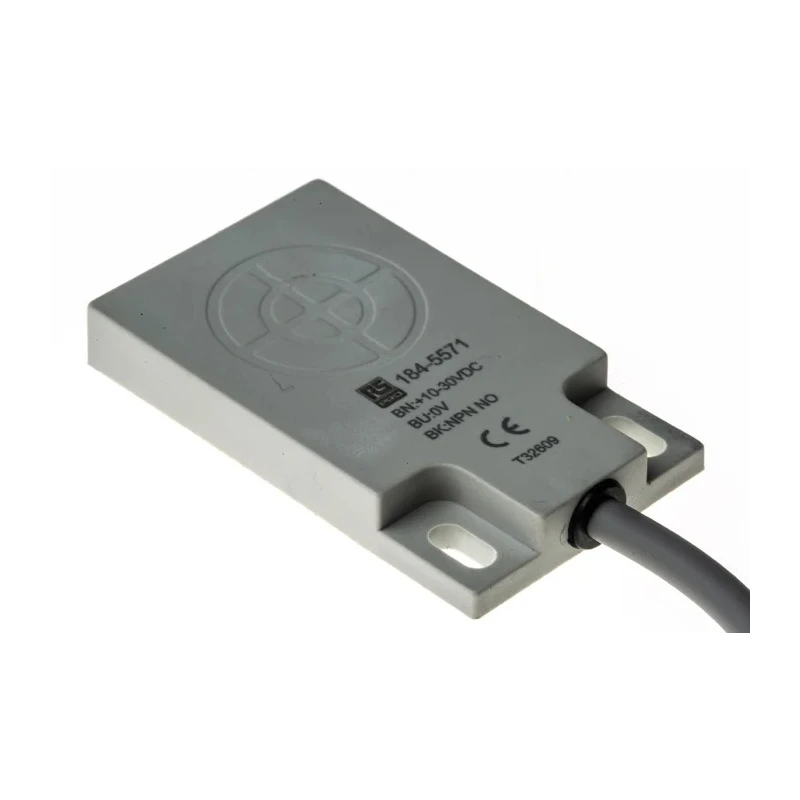

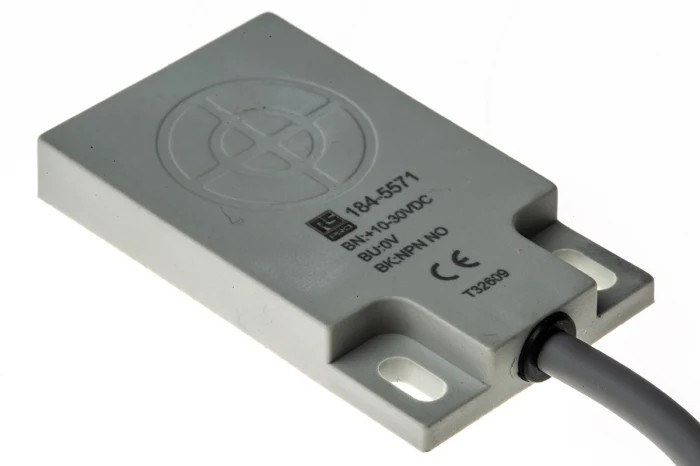

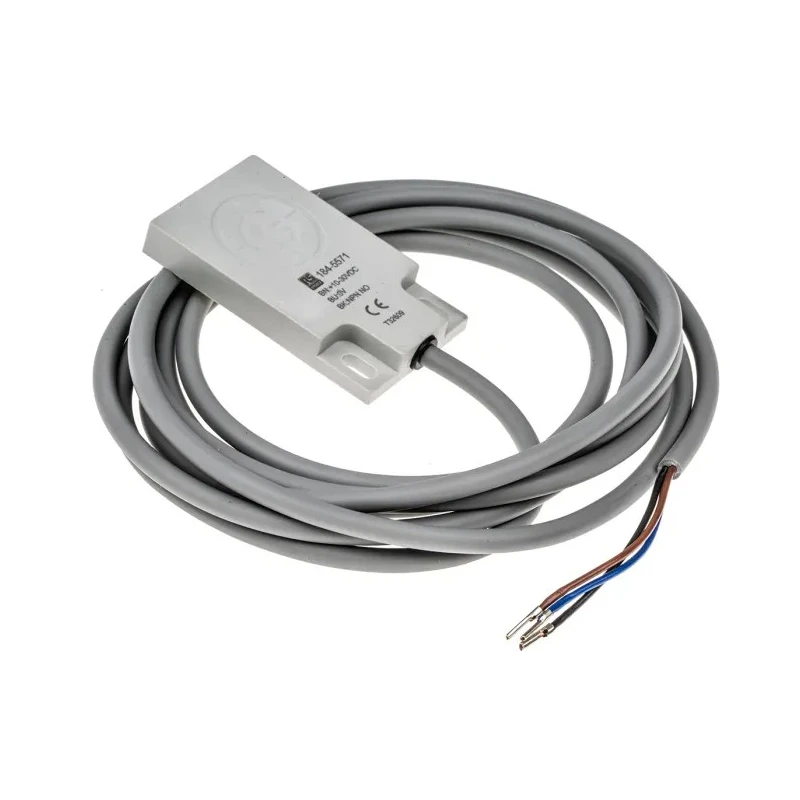

RS PRO Block Capacitive Proximity Sensor 8 mm NPN Output 200mA 30V DC 184-5571
Specifications
| Country of Origin | China |
|---|---|
| Brand | RS PRO |
| Length | 30mm |
| Model | 184-5571 |
| Depth | 7mm |
| IP Rating | IP67 |
| Width | 7mm |
| Mount Type | Flush |
| Housing Material | Polybutylene Terephthalate |
| Output type | NPN |
| Series | 5571 |
| Maximum Operating Temperature | 55°C |
| Minimum Operating Temperature | -10°C |
| Switching Current | 200mA |
| Terminal type | Pre-Cabled |
| Body Style | Block |
| Maximum dc Voltage | 30V dc |
| Shielding | Shielded |
| Maximum Switching Frequency | 60Hz |
| Maximum Supply Voltage | 30V |
| Materials Detected | Metal, Non-Metallic Object |
| Maximum Detection | 8mm |
Key Features
- This capacitive sensor detects both metallic and non-metallic objects effectively.
- Equipped with a robust polybutylene terephthalate block housing ensuring durability.
- Flush mount style enables easy installation in confined spaces.
- Operates reliably between temperatures of -10°C to 55°C.
- Pre-cabled with a 2m PVC cable for secure electrical connection.
- Maximum switching frequency of 60Hz supports dynamic sensing applications.
- Suitable for pressure, thickness, liquid level monitoring, and other industrial measurement tasks.
- Certified with IP67 for dust-tight and water protection in harsh conditions.
Product Description
RS PRO 184-5571 is a block style capacitive proximity sensor designed for precise detection of objects up to 8 mm away using capacitance changes. It features an NPN output type with a maximum switching current of 200mA and is powered by a 30V DC supply.
The sensor's polybutylene terephthalate housing offers ruggedness and chemical resistance, making it ideal for industrial, manufacturing, automation, and laboratory environments. Its flush mount type and shielded design enable versatile installation in complex machinery and process control systems.
This sensor performs reliably in operating temperatures ranging from -10°C to 55°C and carries an IP67 ingress protection rating, ensuring dust-tight and waterproof operation under tough conditions.
Application areas include level sensing, pressure measurement, thickness detection, and other industrial process monitoring where non-contact object presence sensing is critical. The sensor uses a 2-meter PVC pre-cabled connection for straightforward and secure wiring.
Capacitive sensor technology detects metal and non-metal objects effectively. Block style, flush mount sensor with shielded body for robust sensor performance. Maximum switching frequency of 60Hz supports fast response requirements.
Polybutylene terephthalate housing material offers strength and chemical resistance. Operating temperature range from -10°C to +55°C supports diverse industrial conditions. IP67 rated for protection against dust ingress and water jets.
Includes a pre-cabled 2m PVC cable for easy integration.
This RS PRO sensor series 5571 is ideal for businesses requiring precise and reliable sensing solutions in automation, quality control, process industries, and water treatment plants.
Explore more options in Proximity Sensors and related RS PRO products at EnvMart for comprehensive sensor solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum detection range of this sensor is 8 mm, allowing it to detect both metallic and non-metallic objects effectively.
This model features an NPN output type, which is suitable for various industrial applications.
The maximum switching current for this capacitive proximity sensor is 200mA.
It operates reliably between -10°C and 55°C, making it suitable for diverse industrial conditions.
This sensor has an IP67 rating, ensuring it is dust-tight and protected against water jets.
It can detect both metallic and non-metallic objects, making it versatile for various applications.
The maximum supply voltage for this model is 30V DC.
This sensor features a flush mount design, allowing for easy installation in confined spaces.
The dimensions are 30 mm in length, 7 mm in width, and 7 mm in depth.
The maximum switching frequency is 60Hz, which supports dynamic sensing applications.

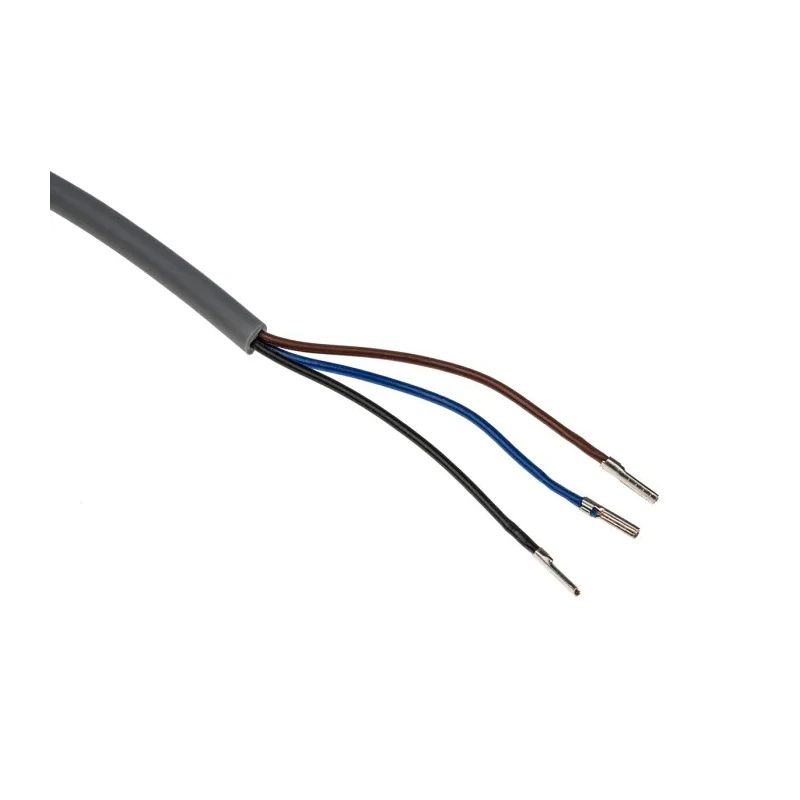

It comes pre-cabled with a 2-meter PVC cable for secure electrical connection.
The housing is made of polybutylene terephthalate, providing durability and chemical resistance.
