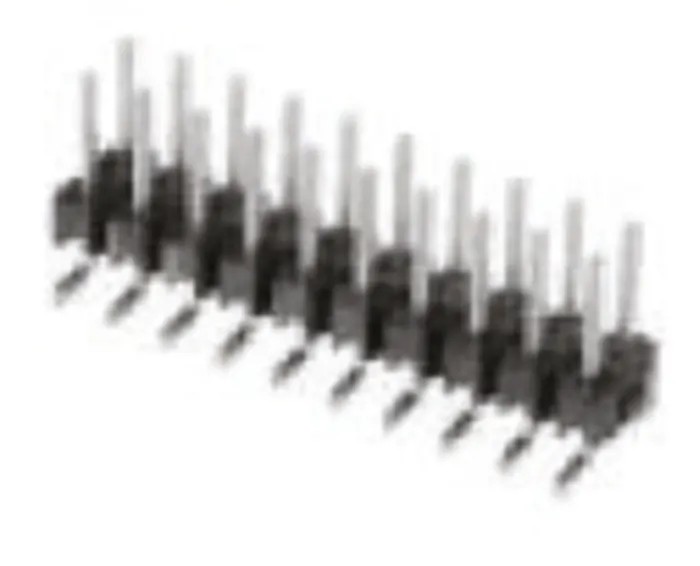

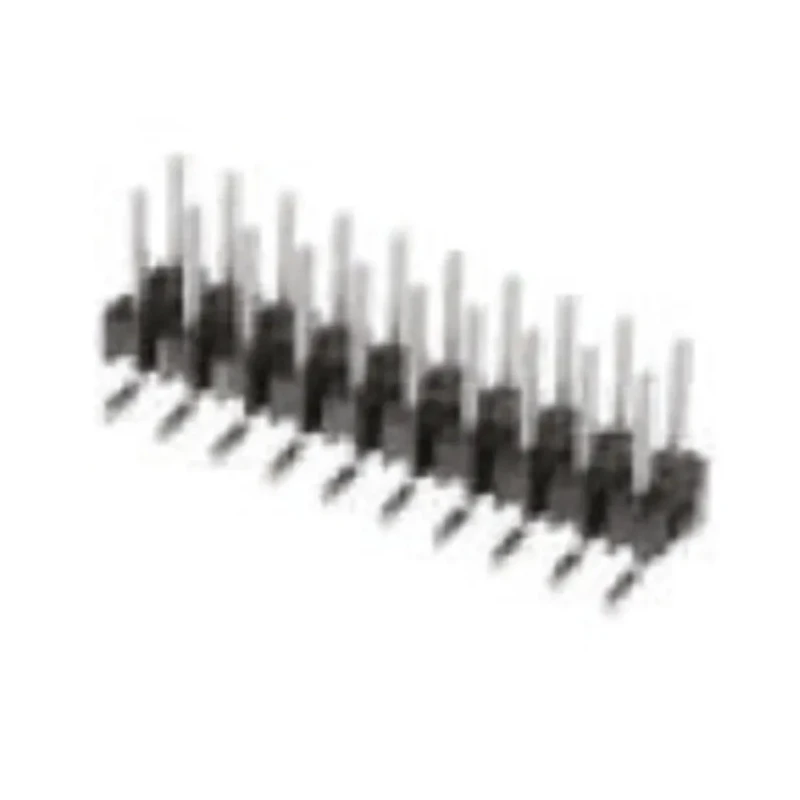

TE Connectivity AMPMODU MOD II Series Right Angle Through Hole Pin Header, 12 Contacts, 2.54 mm Pitch, 2 Rows 826634-6
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 750V |
| Brand | TE Connectivity |
| Orientation | Right Angle |
| Current | 3A |
| Model | 826634-6 |
| Mount Type | Through Hole |
| Housing Material | Polybutylene Terephthalate |
| Contact Material | Brass |
| Series | AMPMODU MOD II |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -65°C |
| Number of Rows | 2 |
| Pitch | 2.54mm |
| Contact Plating | Gold |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Unshrouded |
| Connector System | Board-to-Board, Wire-to-Board |
| Tail Pin Length | 3.2mm |
| Mating Pin Length | 6.7mm |
Key Features
- Features a right angle orientation for compact PCB layouts.
- Consists of 12 male contacts arranged in 2 rows with 2.54 mm pitch.
- Contacts are made of brass and plated with gold for reliable conductivity.
- Housing is made from durable Polybutylene Terephthalate material.
- Suitable for operating temperatures from -65°C to 105°C.
- Rated for a voltage up to 750V and current capacity of 3A.
- Designed for through hole mounting and solder termination type.
- Compatible with board-to-board and wire-to-board connector systems.
Product Description
TE Connectivity 826634-6 AMPMODU MOD II Series Right Angle Through Hole Pin Header features 12 male contacts arranged in two rows with a 2.54 mm pitch. The unshrouded design allows the pins to be broken down to desired sizes, providing flexibility for varied PCB configurations.
The connector housing is constructed from Polybutylene Terephthalate, providing excellent durability and electrical insulation properties. Brass contacts plated with gold ensure optimal conductivity and corrosion resistance.
This right angle pin header supports a maximum voltage of 750V and can carry currents up to 3 amperes, making it suitable for demanding electronic applications. It operates reliably within a temperature range from -65°C to 105°C.
Designed for through hole mounting and solder termination, this header facilitates efficient assembly while maintaining secure electrical connections. It is compatible with both board-to-board and wire-to-board connector systems, widely used in automation and control solutions.
The AMPMODU Interconnect system is recognized for its compact form factor and versatility in numerous industrial settings including automotive controls, telecommunications devices, medical instruments, test equipment, and storage solutions.
Right angle orientation for space-saving PCB assemblies. 12 male contacts in a double-row formation at 2.54 mm pitch. Durable Polybutylene Terephthalate housing for insulation and mechanical strength. Gold-plated brass contacts for superior electrical performance.
Wide operating temperature range from -65°C to 105°C. Supports up to 750 volts and 3 amps current rating. Through hole mounting with solder termination for robust connections. Unshrouded breakaway pins for customizable application requirements.
Widely used across automotive, industrial, telecommunications, and medical fields. Explore more offerings in the PCB Headers category at EnvMart for reliable electronic component solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contacts in this pin header have a pitch of 2.54 mm.
This model is rated for a maximum voltage of 750V.
It has a current capacity of 3A.
The contacts are made of brass and plated with gold, while the housing is constructed from Polybutylene Terephthalate.
The operating temperature range is from -65°C to 105°C.
This pin header has 12 male contacts arranged in 2 rows.
It is designed for through hole mounting with solder termination.
Yes, it is compatible with both board-to-board and wire-to-board connector systems.
The tail pin length is 3.2 mm.
The mating pin length is 6.7 mm.
This pin header features a right angle orientation for compact PCB layouts.
The country of origin for this product is India.
