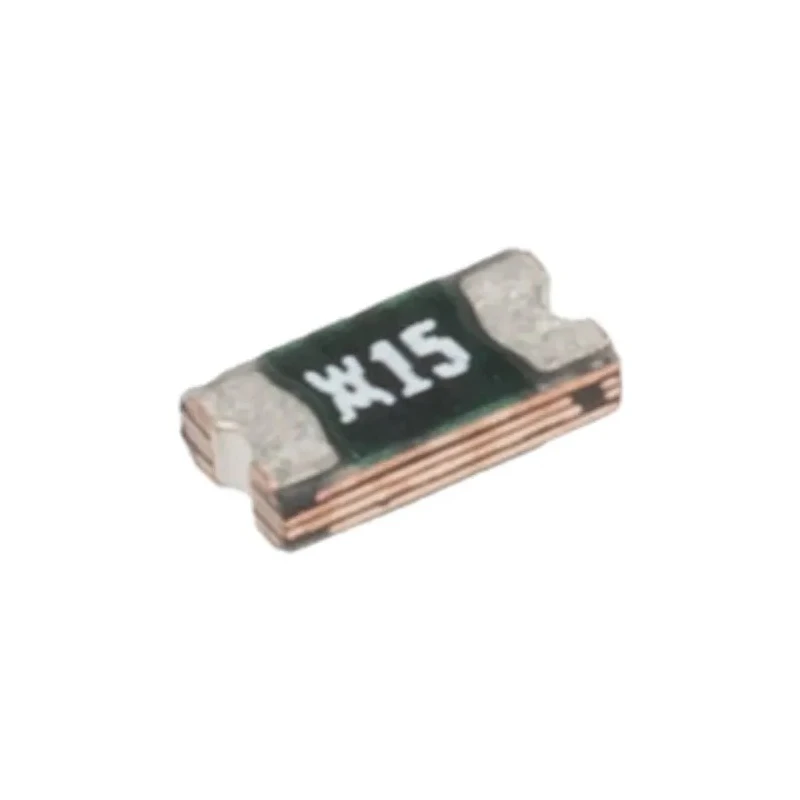

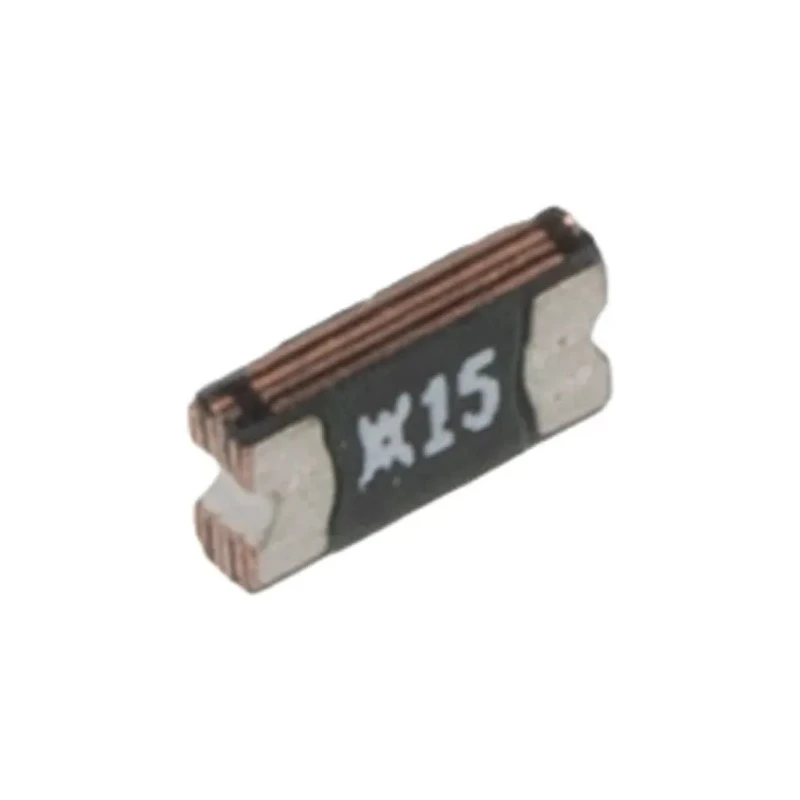

Littelfuse 1.5 A Resettable Fuse 6.0V DC Surface Mount nanoSMDC150F Series NANOSMDC150F-2

The Littelfuse NANOSMDC150F-2 is a high-quality resettable fuse from the nanoSMDC150F series designed for electrical and electronic circuit protection against overcurrent conditions in 6.0V DC applications. This 1.5 A rated fuse employs PolySwitch™ technology, providing automatic reset functionality that switches from a low resistance state to a high resistance state rapidly under electrical overload or short circuit. It resets automatically when the fault clears and power is removed, offering maintenance-free protection for thousands of cycles.

This fuse is crafted for surface mount technology (SMT) applications, featuring a compact size of 3.4 mm length, 1.8 mm width, and 0.89 mm height, enabling its integration in space-constrained PCB designs without requiring fuse holders.

Key technical characteristics include a trip current of 3 A, a fast trip time of 0.3 seconds, low minimum resistance of 0.04 ohms, and a maximum operational temperature of 85°C which ensures durability and performance in demanding environments.

The tin-plated terminals optimize electrical conductivity and solderability. The fuse can safely dissipate power up to 0.8 W during fault conditions.

Due to its reliability and small form factor, this resettable fuse finds extensive applications in security systems, power supplies, transformers, power switching devices, automotive electronics, medical devices, instrumentation and control systems, computers and peripherals, as well as audio-visual and telecommunications equipment.

Features automatic reset after fault conditions are cleared. Compact surface mount design enables easy PCB integration. Trip current rating of 3A ensures reliable circuit protection. Constructed with tin-plated terminals for excellent conductivity.

Offers low minimum resistance of 0.04 Ω and maximum 110 mΩ resistance. Can dissipate up to 0.8 W power during operation. Suitable for applications in automotive, medical, instrumentation, and telecommunications. Operates reliably up to a maximum temperature of 85°C.

For professionals requiring dependable circuit protection components, the Littelfuse NANOSMDC150F-2 resettable fuse is an excellent choice. Browse the full range of resettable fuses available at EnvMart to find compatible parts for your application.
