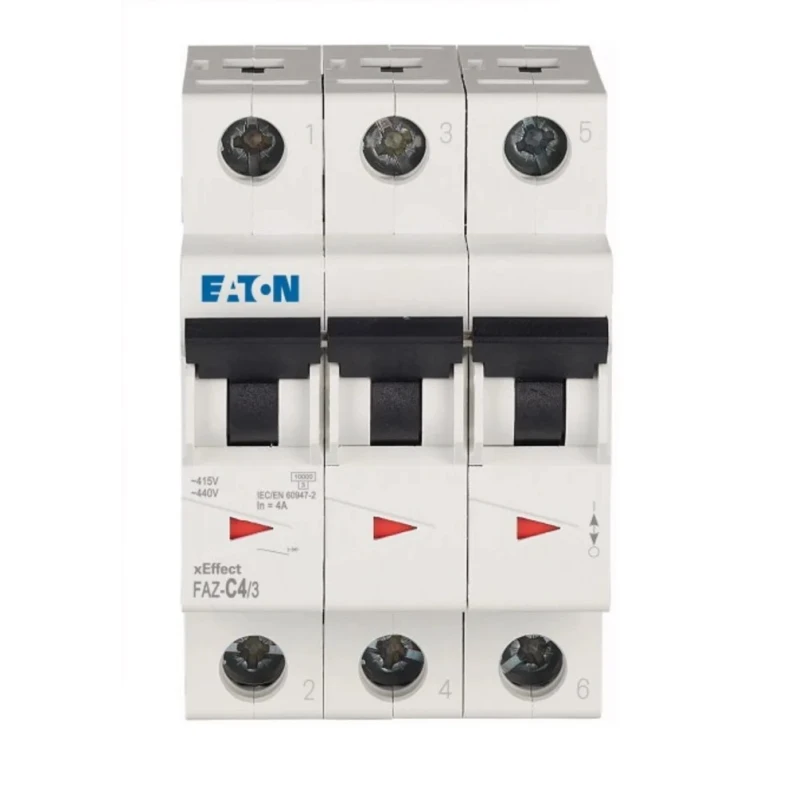

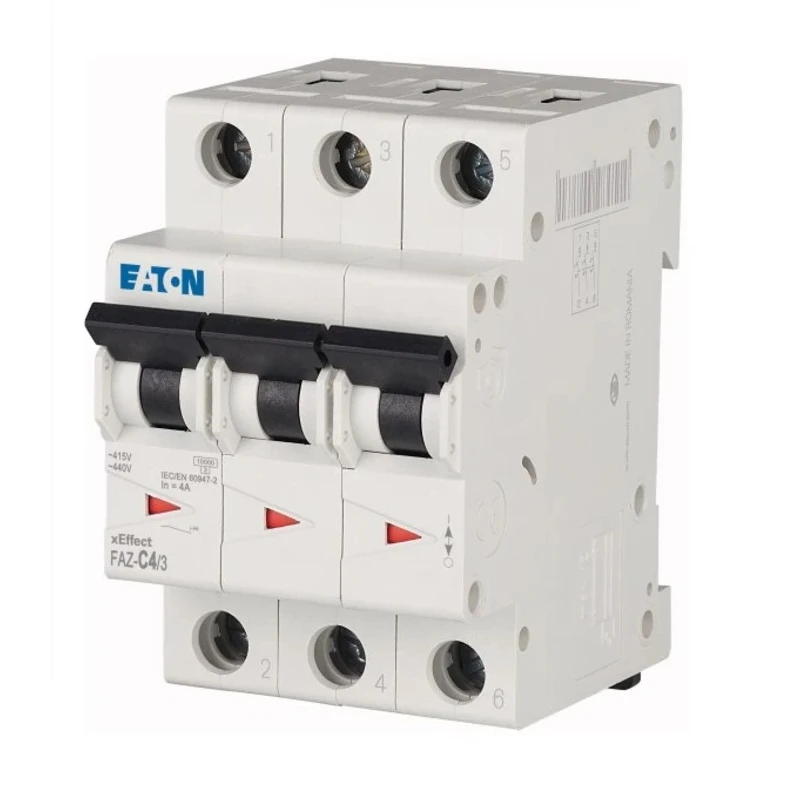

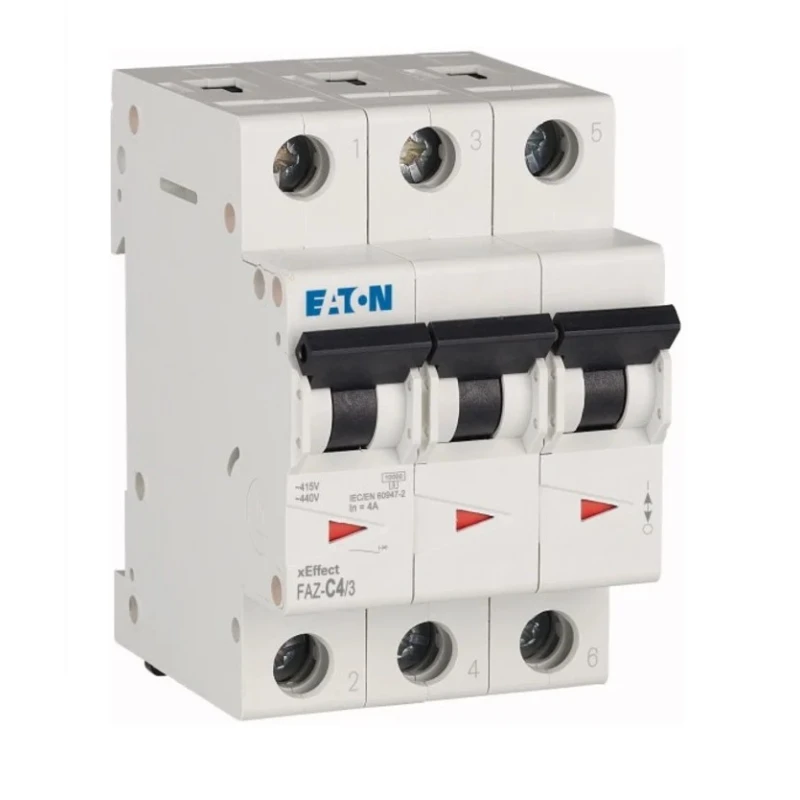

Eaton Miniature Circuit Breaker 3 Poles 4A C Curve 400V ac 60V dc 10kA Breaking Capacity 278865 FAZ-C4/3
Specifications
| Country of Origin | Romania |
|---|---|
| Range | xEffect |
| Brand | Eaton |
| Model | 278865 FAZ-C4/3 |
| Depth | 74mm |
| IP Rating | IP20 |
| Width | 52.5mm |
| Mount Type | DIN Rail |
| Current Rating | 4A |
| Series | xEffect |
| Terminal type | Twin-Purpose Terminal |
| Breaking Capacity | 10kA |
| Number of Poles | 3 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 60V dc |
| Tripping Characteristics | Type C |
| Tripping Mechanism | Thermal Magnetic |
| Reset Actuator Type | Toggle Switch |
| Break Time | Instantaneous |
Key Features
- Provides thermal magnetic instantaneous tripping for reliable short circuit protection.
- Supports a current rating of 4 amps with type C tripping characteristic suitable for moderate inrush currents.
- Operates at a rated AC voltage of 400 volts and a rated DC voltage of 60 volts.
- Offers a high breaking capacity of 10 kiloamperes for industrial and commercial applications.
- Mounts easily on DIN rails with a compact width of 52.5 mm for space saving installations.
- Features twin-purpose terminals allowing wiring from top or bottom for flexible installation.
- Enclosed with IP20 rating protecting against finger contact and foreign objects larger than 12 mm.
- Operates reliably in temperature range from −40°C to +75°C ensuring broad environmental suitability.
Product Description
Eaton 278865 FAZ-C4/3 Miniature Circuit Breaker is a 3-pole device rated for 4 amps with Type C tripping characteristics, engineered for robust protection in residential, commercial, and industrial electrical installations. It is designed to safeguard resistive and inductive loads against overload and short circuits, offering reliable performance where moderate inrush currents are expected.
The breaker operates at a rated alternating current voltage of 400 volts AC and a direct current voltage rating of 60 volts DC. It features a high breaking capacity of 10 kiloamperes, which makes it suitable for demanding environments requiring fast and effective fault clearing.
The device is installed via a standard DIN rail mounting system with a slim and efficient width of 52.5 mm per three poles, optimizing panel space. Twin-purpose terminals provide installation flexibility by allowing connections from either top or bottom, simplifying wiring tasks.
Encased with an IP20 rating, the enclosure protects users from accidental contact with energized parts and prevents ingress of objects larger than 12 mm. The circuit breaker is engineered to function reliably within an operating temperature range from minus 40 to plus 75 degrees Celsius, ensuring effectiveness even in harsh conditions.
Thermal magnetic tripping mechanism for immediate response to overloads and short circuits. Compact dimensions of 74 mm depth and 52.5 mm width facilitate integration in control panels. Standards compliance with IEC/EN 60898-1 for overcurrent protection applicable to household and similar installations.
Toggle switch reset actuator provides intuitive manual control for circuit restoration. Ideal for protection in motors, lighting, HVAC, and industrial control systems.
Manufactured in Romania, this Eaton xEffect series circuit breaker combines durability with reliable performance, making it a preferred choice for electrical engineers and technicians. Explore more options for circuit breakers and electrical components in EnvMart’s extended catalog.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The breaking capacity of this model is 10 kiloamperes (10kA), suitable for industrial and commercial applications requiring effective fault clearing.
This miniature circuit breaker has a current rating of 4 amps, making it suitable for various electrical applications.
It operates at a rated AC voltage of 400 volts and a rated DC voltage of 60 volts, allowing for versatile use in different electrical systems.
The tripping mechanism is thermal magnetic, providing instantaneous tripping for reliable protection against overloads and short circuits.
It has a compact width of 52.5 mm and a depth of 74 mm, designed for DIN rail mounting to optimize panel space.
The circuit breaker has an IP20 rating, which protects against finger contact and foreign objects larger than 12 mm.
It features twin-purpose terminals that allow for flexible wiring from either the top or bottom, simplifying installation.
This unit operates reliably within a temperature range from -40°C to +75°C, ensuring functionality in various environmental conditions.
It is designed for protection in motors, lighting, HVAC, and industrial control systems, providing reliable performance in these areas.
It complies with IEC/EN 60898-1 standards for overcurrent protection, applicable to household and similar installations.
It features a toggle switch reset actuator, allowing for intuitive manual control to restore the circuit after a trip.
This model is manufactured in Romania, ensuring adherence to quality standards during production.
