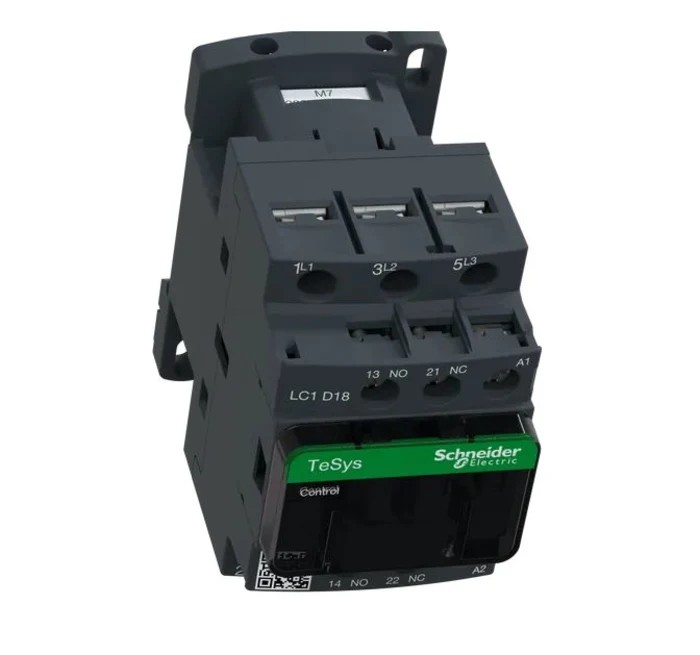

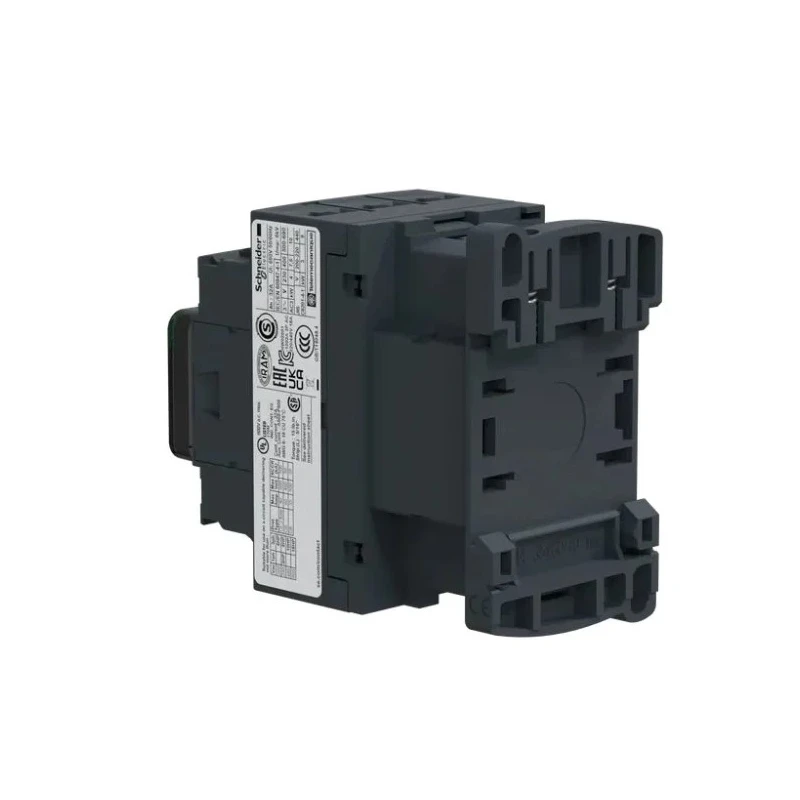

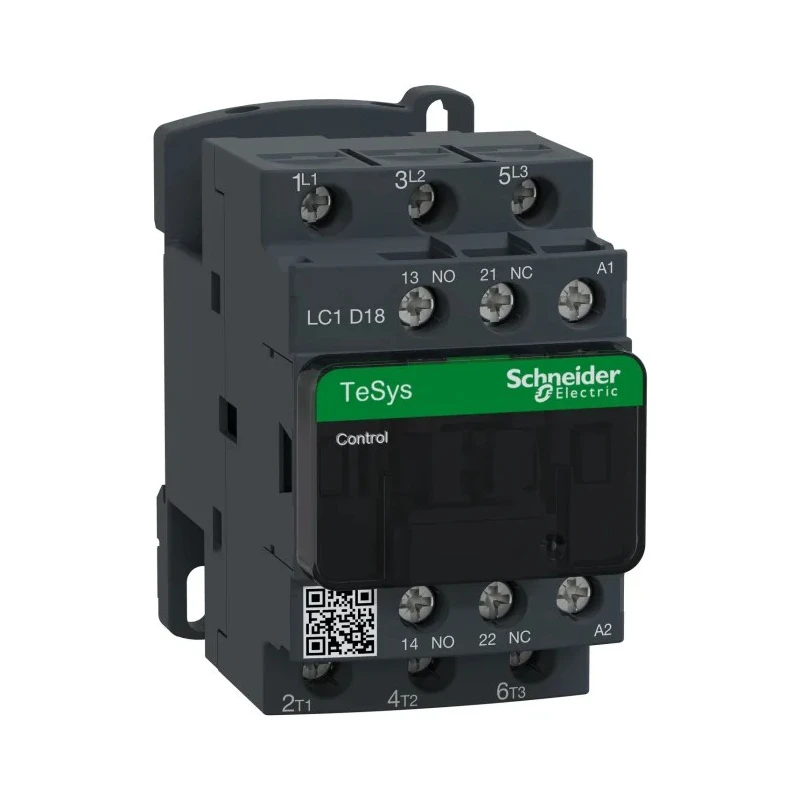

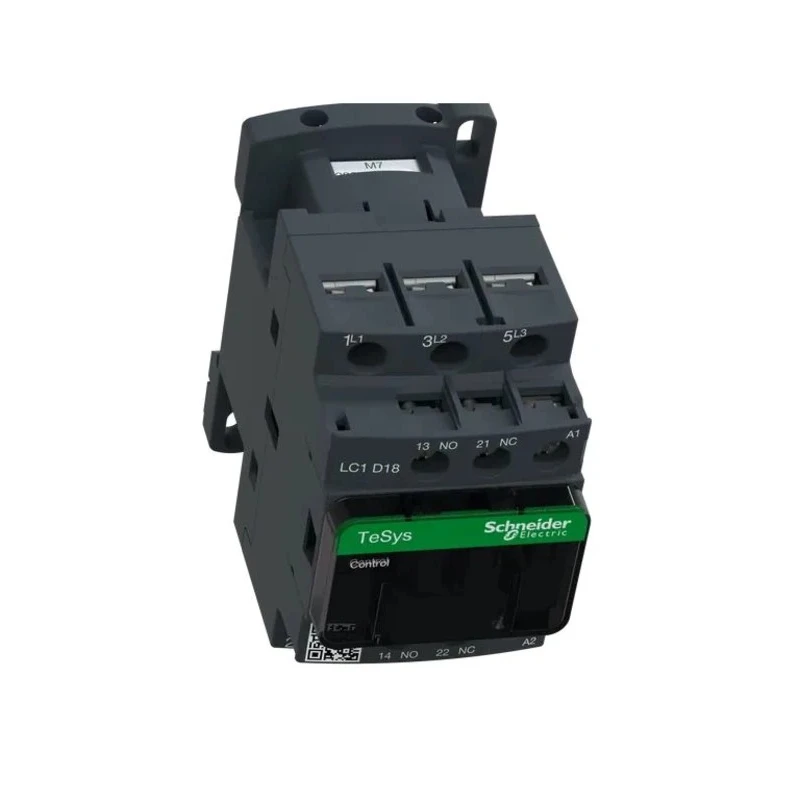

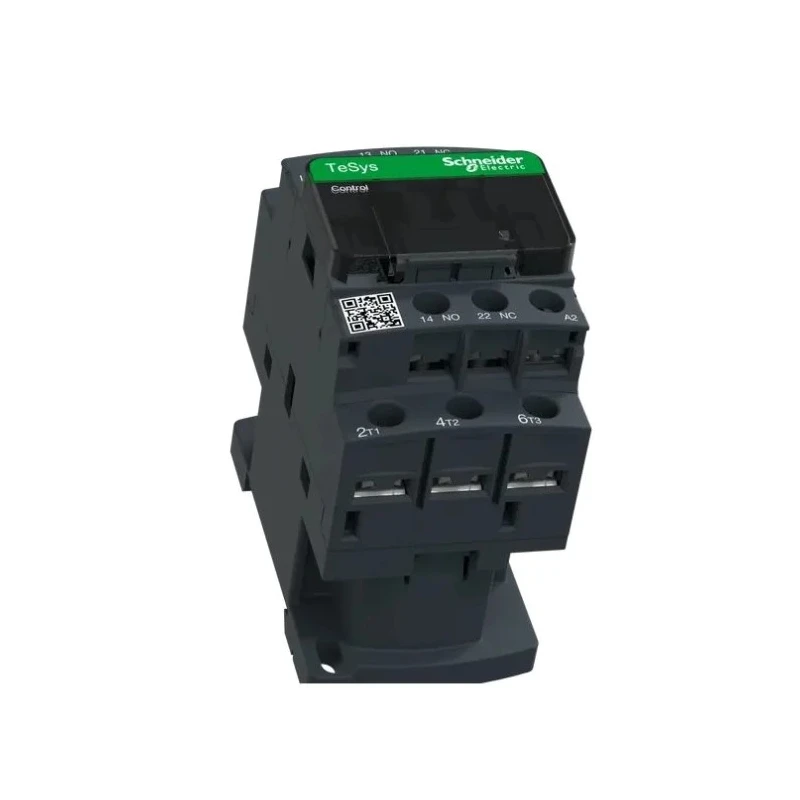

Schneider Electric TeSyS D Contactor, 220V AC Coil, 3-Pole, 18 A, 7.5 kW, 690V AC LC1D18M7
Specifications
| Country of Origin | France |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control |
| Length | 77mm |
| Model | LC1D18M7 |
| Depth | 84mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 7.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -5°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | UL, RoHS, IEC, EAC, CSA, CCC |
| Contact Voltage | 690V ac |
| Coil Voltage | 220V ac |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 18A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 18A |
| Control Circuit Voltage Uc | 220V ac |
| Contactor Application | Resistive Load, Motor Control |
| Pole and Throw Configuration | 3P |
Key Features
- Equipped with 3 NO contacts for efficient switching in three-phase systems.
- Designed for DIN rail mounting with secure screw terminal connections.
- Features 1 NO and 1 NC auxiliary contacts for enhanced control functionality.
- Operates reliably within -5°C to 60°C temperature range.
- Compact dimensions of 77mm length, 45mm width, and 84mm depth to save panel space.
- Supports control and resistive load applications at 690V AC maximum voltage.
- Complies with UL, RoHS, IEC, EAC, CSA, and CCC standards for safety and quality.
- Ideal for use in industrial motor control, HVAC, conveyor systems, and pump control.
Product Description
Schneider Electric LC1D18M7 TeSyS D Contactor features a 220V AC coil with 3 poles and is rated for 18 amps current and 7.5 kW power. It is engineered for effective motor control across industrial and commercial applications. This contactor supports operation at control voltage of 220V AC and is suitable for resistive loads and motor control functions.
The product offers robust construction and compact sizing with dimensions of 77mm length, 45mm width, and 84mm depth, facilitating easy installation in electrical panels using DIN rail mounting. Secure screw terminals ensure reliable electrical connections.
This contactor includes 3 normally open main contacts and 2 auxiliary contacts (1 NO and 1 NC), enhancing its utility in safety and signaling circuits. It reliably operates in ambient temperatures ranging from -5°C to 60°C, suitable for demanding industrial environments.
Standards compliance includes UL, RoHS, IEC, EAC, CSA, and CCC certifications, indicating adherence to international safety and quality norms. Designed for disassembly, the TeSyS D series supports sustainable practices by enabling easier recycling and maintenance.
3-pole configuration for three-phase motor control applications. Auxiliary contacts provide additional control and monitoring capabilities. Instantaneous motor control functionality with rated operational current of 18A.
Compact form factor optimized for space-saving in panel assemblies. Operational coil voltage of 220V AC with screw terminal connections. Suits applications including automated motor control, HVAC systems, conveyor machinery, and pump management.
Manufactured in France with high-quality materials and craftsmanship. Maintains performance under temperature extremes from -5°C to 60°C. Environmentally conscious design promoting energy efficiency and easy maintenance.
This Schneider Electric TeSyS D contactor LC1D18M7 is an excellent choice for industrial automation, construction, manufacturing, and building management systems requiring reliable and efficient motor control.
Explore more products within the Contactors category at EnvMart for diverse industrial and electrical equipment.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The power rating of this contactor is 7.5 kW.
The coil voltage for the LC1D18M7 is 220V AC.
This model has dimensions of 77mm in length, 45mm in width, and 84mm in depth.
It features a 3-pole configuration suitable for three-phase motor control applications.
The maximum operating temperature is 60°C.
It is designed for DIN rail mounting.
The contactor includes 3 normally open (NO) main contacts.
This model includes 2 auxiliary contacts, configured as 1 normally open (NO) and 1 normally closed (NC).
It complies with UL, RoHS, IEC, EAC, CSA, and CCC standards.
It is suitable for resistive loads and motor control applications.
The operational current rating is 18A.
This contactor is manufactured in France.
