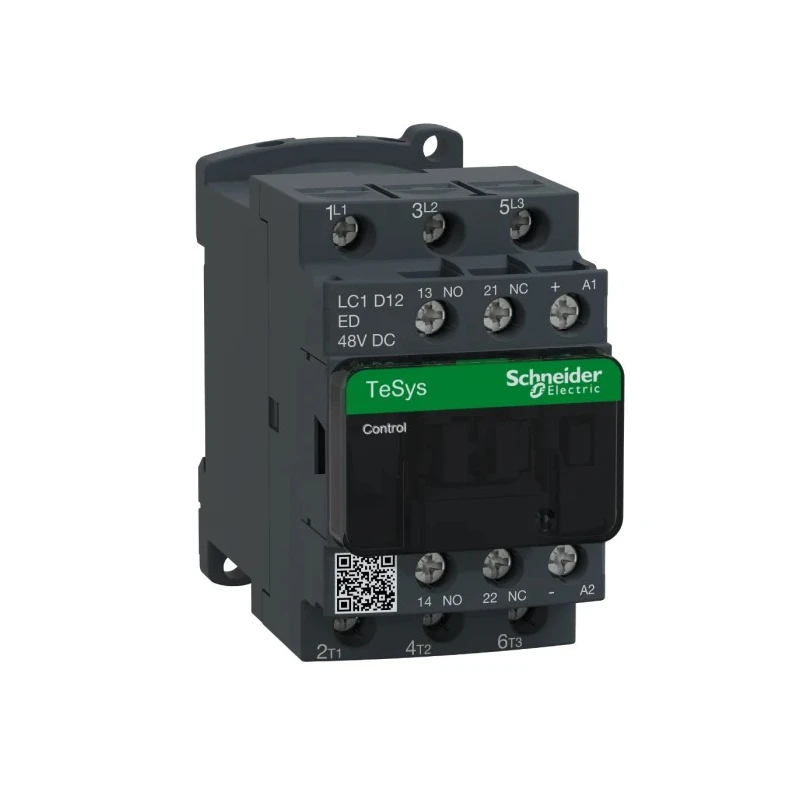

Schneider Electric TeSyS D Contactor 48V DC Coil 3-Pole 12A 5.5 kW 3 NO 690V AC LC1D12ED
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load |
| Length | 77mm |
| Model | LC1D12ED |
| Depth | 95mm |
| Width | 45mm |
| Mount Type | DIN Rail |
| Series | TeSys D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 60°C |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 48V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 1 NO/1 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 48V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
Key Features
- Features a 48V DC coil for stable control operation.
- Designed with 3 poles supporting motor control and resistive loads.
- Rated contact current is 12A, suitable for various industrial applications.
- Power handling capacity up to 5.5 kW ensuring reliable performance.
- Uses screw terminals for secure wiring connections.
- Mounts conveniently on DIN rail optimizing installation space.
- Operating temperature range from -40°C to 60°C to handle harsh environments.
- Complies with major standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL.
Product Description
Schneider Electric LC1D12ED TeSyS D Contactor is a high-performance industrial electrical device designed for motor control and resistive load applications. It features a 48V DC coil voltage and a 12A contact current rating, capable of controlling motors and other loads with power ratings up to 5.5 kW. The contactor incorporates three poles configured as 3 NO contacts, providing effective load switching and reliable operation under 690V AC contact voltage.
Manufactured to meet international quality and safety standards such as CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL, this device ensures robust performance and regulatory compliance. The screw terminal design allows secure and flexible electrical connections, supporting cables from 1 to 4 mm².
The compact size, measuring 77mm in length, 45mm in width, and 95mm in depth, makes it well suited for installation in control panels using the standard DIN rail mounting method. Its operating temperature range between -40°C and +60°C enables reliable function even in demanding industrial and outdoor environments.
This contactor is ideal for industrial automation systems controlling 3-phase motors, resistive loads, and inductive loads. Its two auxiliary contacts, arranged as one normally open and one normally closed, provide additional control and signaling possibilities.
Three-pole design with 3 normally open contacts for superior switching performance. Stable operation via 48V DC coil optimized for motor applications. Contact current rating of 12A and power rating of 5.5 kW suits a wide range of loads.
DIN rail mount ensures space-efficient installation and panel integration. Wide operational temperature tolerance from -40°C to 60°C for diverse environments. Screw terminals accommodate flexible wiring securely from 1 to 4 mm².
Complies with multiple global standards ensuring safety and reliability. Designed for motor control and resistive load applications in industrial settings. Compact dimensions simplify integration into complex control systems.
Two auxiliary contacts provided (1 NO and 1 NC) for additional functionality.
Schneider Electric offers this robust and reliable TeSyS D Contactor for various industrial, manufacturing, HVAC, and automation applications where efficient and safe motor and load control is essential. The high-quality standards and proven design principles provide confidence for commercial and industrial system integrators and operators.
Explore the comprehensive range of Schneider Electric products and related automation control gear on EnvMart for trusted quality and service.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The contact current rating of this model is 12A, suitable for various industrial applications.
It has a power handling capacity of up to 5.5 kW, making it effective for controlling motors and resistive loads.
This contactor features a coil voltage of 48V DC, providing stable control operation.
It uses screw terminals, which accommodate flexible wiring securely from 1 to 4 mm².
The dimensions are 77mm in length, 45mm in width, and 95mm in depth, making it compact for installation.
The operating temperature range is from -40°C to 60°C, allowing it to function in harsh environments.
This model has 3 poles configured as 3 normally open (NO) contacts for effective load switching.
It complies with several standards including CCC, CSA, EAC, EN 60947-5-1, IEC, RoHS, and UL.
It features two auxiliary contacts, arranged as one normally open (NO) and one normally closed (NC).
It is designed for motor control and resistive load applications in industrial settings.
It mounts conveniently on DIN rail, optimizing installation space within control panels.
The contact voltage rating is 690V AC, suitable for various industrial applications.
