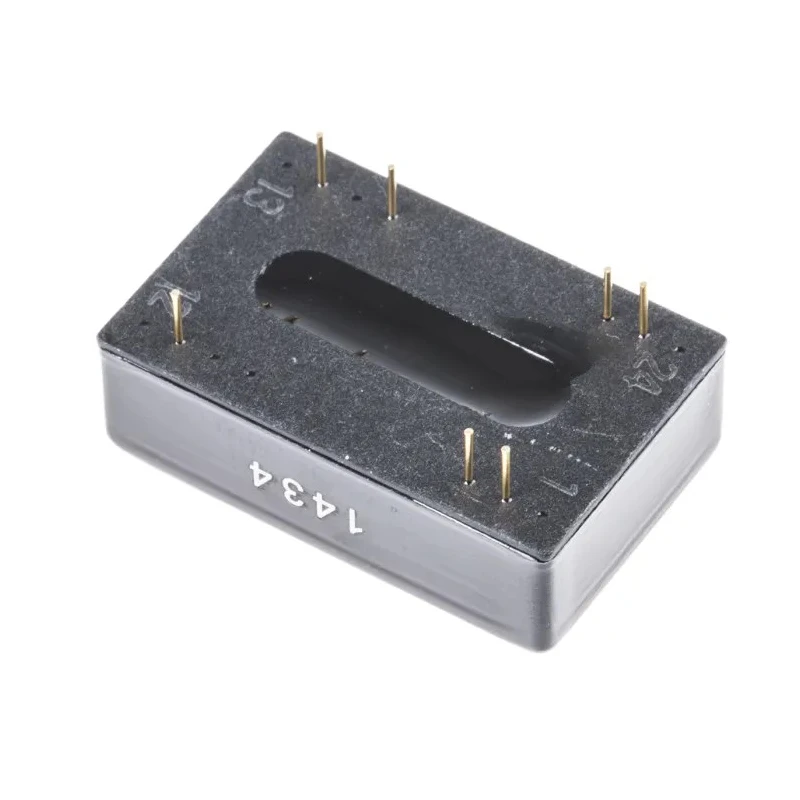

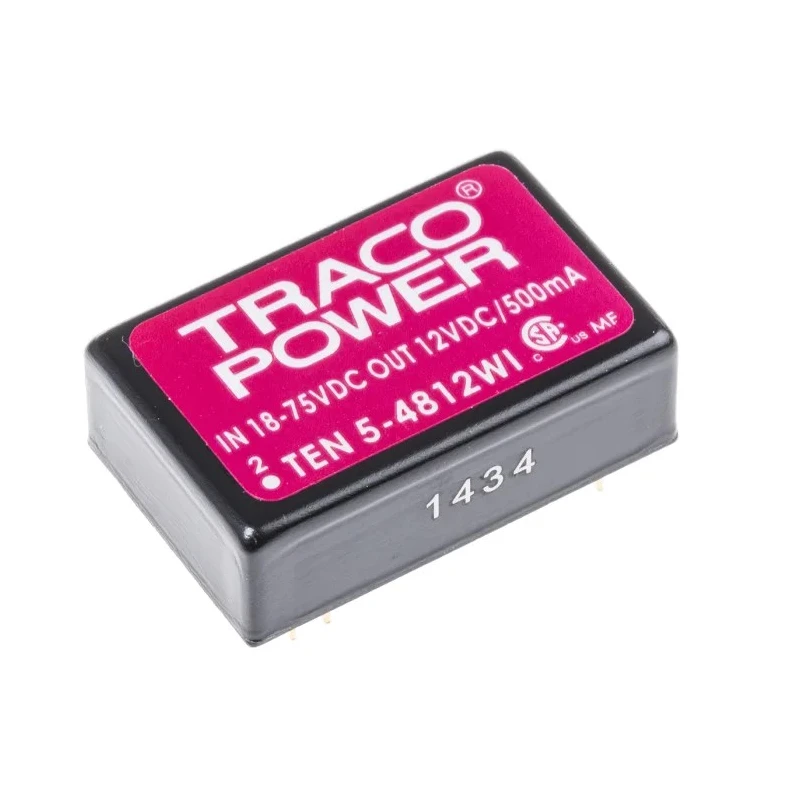

TRACOPOWER DC-DC Converter , 12V DC Output, 500mA, 36-75V DC Input, 6W Power, PCB Mount, DIP-24 Package, -40°C TEN 5-4812WI
Specifications
| Country of Origin | Taiwan |
|---|---|
| Voltage | Converters / DC-DC Converters TRACOPOWER TEN 5WI DC/DC Converter, 12V dc/ 500 mA |
| Brand | TRACOPOWER |
| Efficiency | 84% |
| Length | 32mm |
| Model | TEN 5-4812WI |
| Depth | 10mm |
| Width | 20mm |
| Mount Type | PCB |
| Series | TEN 5WI |
| Maximum Operating Temperature | 85°C |
| Package Type | DIP |
| Minimum Operating Temperature | -40°C |
| MTBF | 700000h |
| Number of outputs | 1 |
| Maximum Output Power | 6W |
| Maximum Input Voltage | 75V dc |
| Minimum Input Voltage | 36V |
| Number of Pins | 24 |
| Output Voltage 1 | 12V dc |
| Output Current 1 | 500mA |
| Output Voltage Adjustment Range | 36/75 V |
| Isolation Voltage | 1.5kV dc |
| Input Ratio | 2:1 |
| Input Ratio2 | 1 |
| Ultra wide 4 | 1 input range |
Key Features
- Provides isolated 12V DC output with a maximum current of 500mA.
- Operates with a wide input voltage range from 36V to 75V DC.
- Compact DIP-24 package with standard pinout for easy PCB mounting.
- Supports an extended operating temperature range from -40°C to 85°C.
- High efficiency of approximately 84%, ensuring low power loss and heat generation.
- Includes built-in EMI input filter compliant with EN 55022 Class A and FCC level A.
- Indefinite short circuit protection enhances reliability in industrial environments.
- Provides 1.5kV DC isolation voltage for safety and noise reduction.
Product Description
TRACOPOWER TEN 5-4812WI is a high-performance DC-DC converter designed to provide a stable 12V DC output at 500mA from a wide input voltage range of 36V to 75V DC. Housed in a compact DIP-24 package, it is ideal for PCB mounting in electronic equipment requiring regulated isolated power supply.
This converter integrates a full SMD design ensuring high reliability and longevity. It supports an extended operating temperature range from -40°C to a maximum of 85°C, making it suitable for demanding industrial environments, battery-operated devices, tele-data communication systems, and industrial process control.
With an efficiency of 84%, the TEN 5-4812WI minimizes power loss and thermal stress. Its built-in EMI input filter meets EMC standards EN 55022 Class A and FCC level A, enhancing noise immunity and system stability.
Safety is ensured by a 1.5kV DC isolation voltage and compliance with cUL/UL 60950-1 and IEC/EN 60950-1 standards. The unit features indefinite short circuit protection to guard against electrical faults.
This converter’s industry-standard DIP-24 footprint and Pb-free, RoHS compliant construction support environmentally responsible electronic assembly. Provides isolated 12V DC output with a maximum current of 500mA. Operates over a wide input voltage range from 36V to 75V DC.
Compact DIP-24 package with standard pin configuration. Extended operating temperature range from -40°C to 85°C. High efficiency of 84% reducing heat generation and power waste. EMI input filter complies with EN 55022 Class A and FCC level A.
Indefinite short circuit protection for enhanced reliability. Isolation voltage of 1.5kV DC for electrical safety. Full SMD design ensures robust performance and durability. RoHS compliant and meets international safety approvals.
This product is ideally suited for industrial automation, communication equipment, battery-powered devices, and laboratory instrumentation requiring stable and isolated DC voltage conversion.
Explore TRACOPOWER and other premium DC-DC Converters on EnvMart for reliable power supply solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model operates with a wide input voltage range from 36V to 75V DC.
It provides a maximum output current of 500mA.
The efficiency of this unit is approximately 84%, which helps minimize power loss and heat generation.
This converter features an isolation voltage of 1.5kV DC, ensuring safety and noise reduction.
The dimensions of this model are 32mm in length, 20mm in width, and 10mm in depth.
It supports an extended operating temperature range from -40°C to 85°C.
This unit is designed for PCB mounting, housed in a compact DIP-24 package.
It complies with cUL/UL 60950-1 and IEC/EN 60950-1 safety standards.
This model is suited for industrial automation, communication equipment, battery-powered devices, and laboratory instrumentation.
Yes, it includes indefinite short circuit protection to enhance reliability in industrial environments.
The maximum output power of this unit is 6W.
This model has one output.
